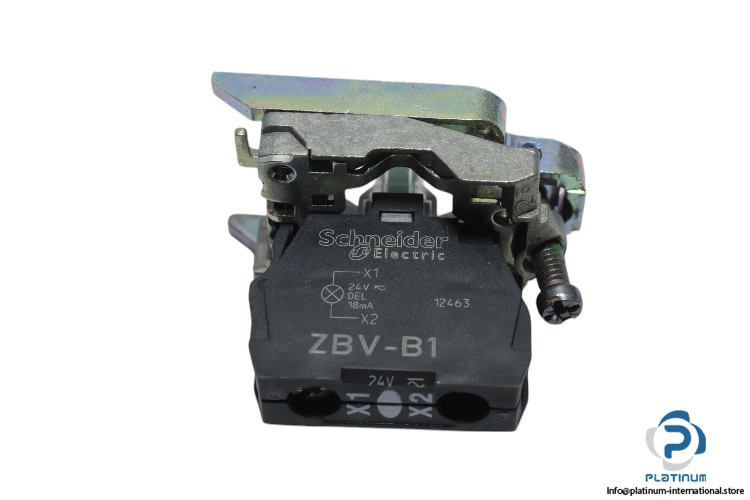

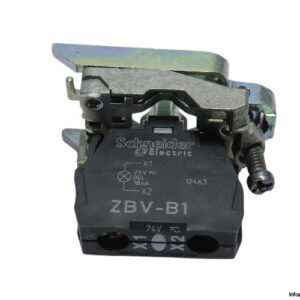

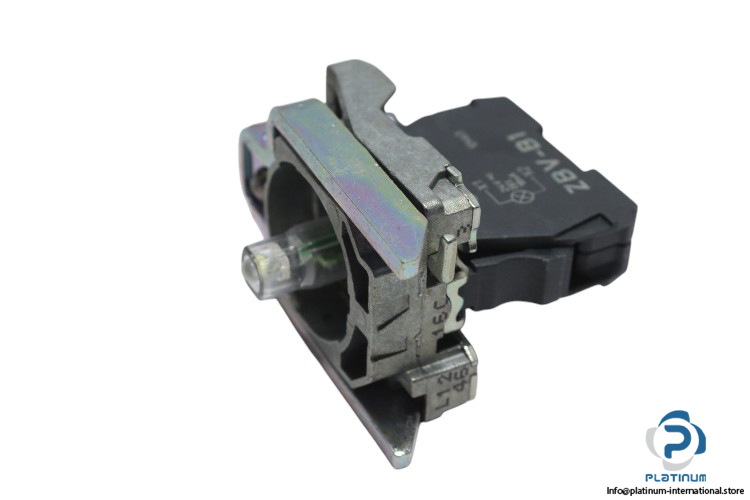

Schneider Electric ZBV-B1 Light Block
The Schneider Electric ZBV-B1 Light Block is a high-performance signaling component designed for use with 22 mm pilot light heads. Featuring direct light block supply, a white light source, and screw clamp terminal connections, this unit ensures reliable operation in industrial control applications.
- Manufacturer: Schneider Electric
- Type: Light Block
- Model: ZBV-B1
Technical Information
- Used for Head: 22 mm
- Rated Supply Voltage: 24 V AC/DC
- Current Consumption: 18 mA
- Light Block Supply: Direct
- Light Source Color: White
- Connections:
- Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end (IEC 60947-1)
- Screw clamp terminals, ≥ 1 x 0.22 mm² without cable end (IEC 60947-1)
- Ambient Air Temperature for Operation: -40 to 70°C
- IP Degree of Protection: IP20
