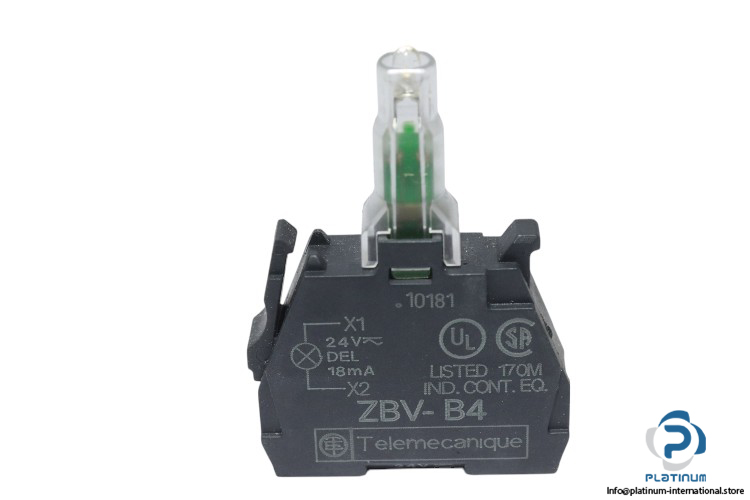

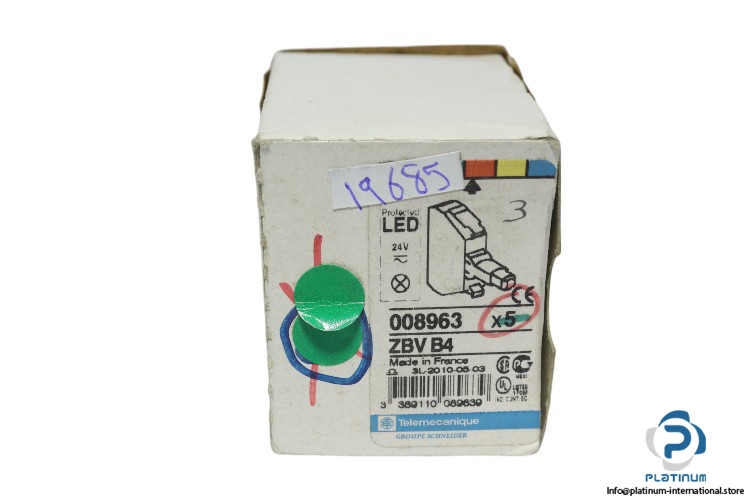

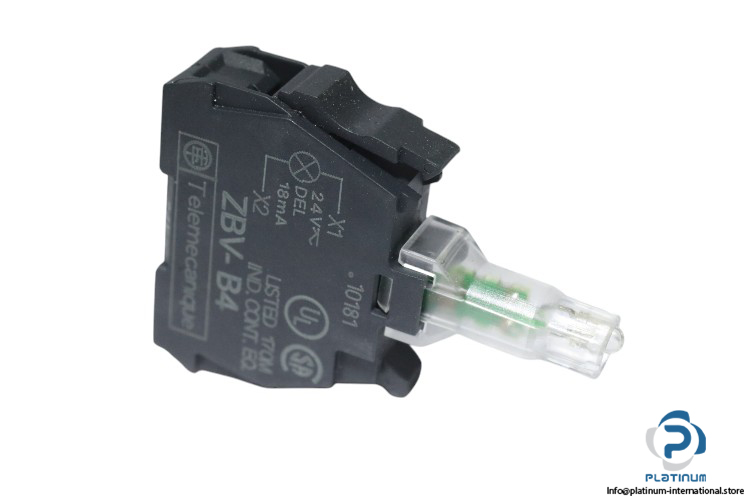

Schneider Light Block for Head ZBV B4
The Schneider Light Block for Head ZBV B4 is designed for industrial use, providing reliable performance with a rated supply voltage of 24 V AC/DC. The unit features a supply voltage range of 19.2 to 30 V DC / 21.6 to 26.4 V AC, with a current consumption of 18 mA. This light block is built to withstand harsh environmental conditions, with a protection degree of IP20 and an ambient temperature range of -40 to 70°C. The tightening torque for installation is between 0.8 to 1.2 N.m, making it suitable for various mounting applications.
Manufacturer: Schneider
Type: Light Block for Head
Model: ZBV B4
Part no: 008963
Technical Information:
- Rated Supply Voltage [Us]: 24 V AC/DC at 50/60 Hz
- Tightening Torque: 0.8 / 1.2 N.m
- Supply Voltage Limits: 19.2 / 30 V DC / 21.6 / 26.4 V AC
- Current Consumption: 18 mA
- Degree of Protection: IP20
- Ambient Temperature: -40 to 70 °C
Ideal for a wide range of industrial applications requiring durability and reliable operation across a broad temperature range.
