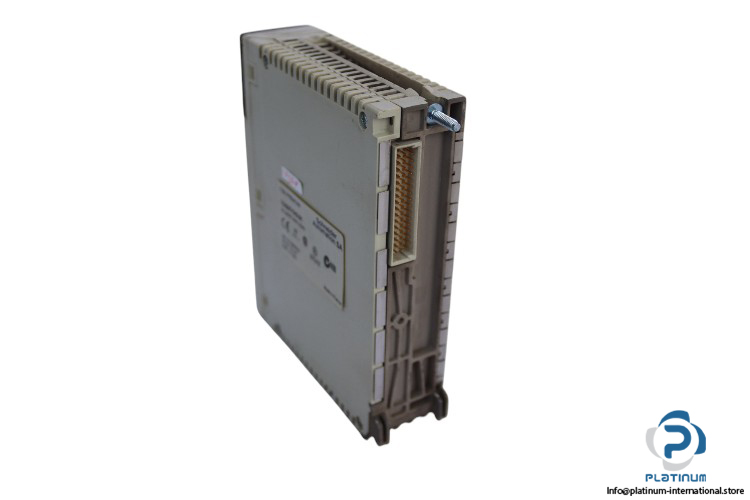

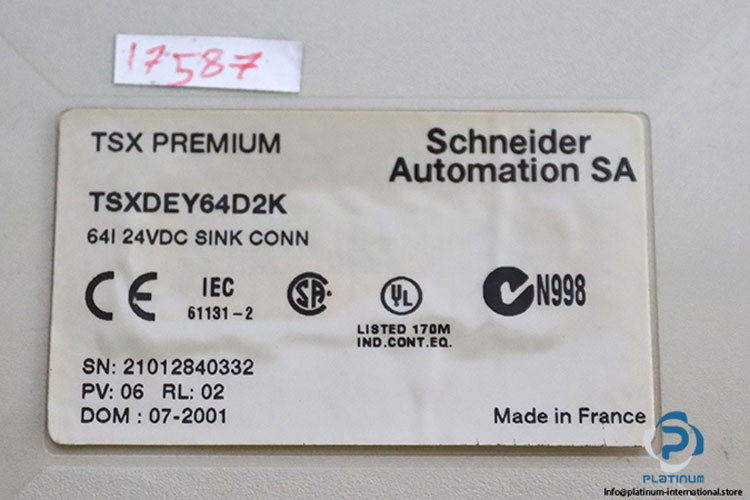

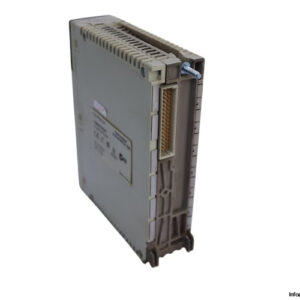

Schneider Electric Discrete Input Module TSXDEY64D2K

The Schneider Electric TSXDEY64D2K is a high-performance discrete input module, part of the Modicon Premium Automation platform. With 64 current-sink isolated discrete inputs, this module ensures precise and reliable operation in various industrial settings.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Discrete Input Module
• Model: TSXDEY64D2K
• Range: Modicon Premium Automation Platform
• Discrete Input Number: 64 current-sink isolated EN/IEC 61131-2 type 1
• Discrete Input Voltage: 24 V DC positive
• Sensor Power Supply: 19 to 30 V
• Discrete Input Current: 3.5 mA
• Response Time: 4 ms, <= 7 ms
• Current Consumption: 155 mA 5 V DC, 315 mA 24 V DC
• Power Dissipation: 1.5 W + 0.1 W x No. of channels used
• Electrical Connection: HE-10 connector
• Standard: IEC 61131-2
• Operating Temperature: 0 to 60°C
• Protection Degree: IP20
