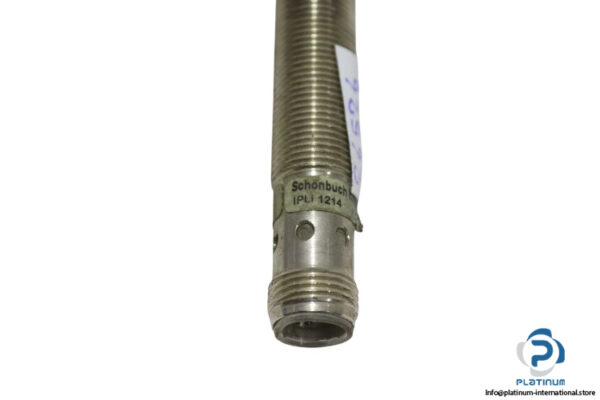

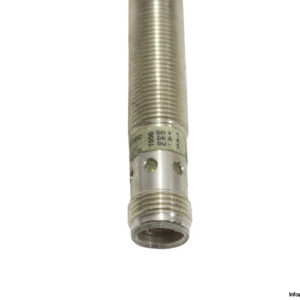

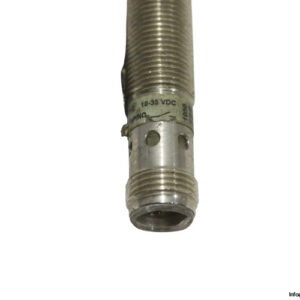

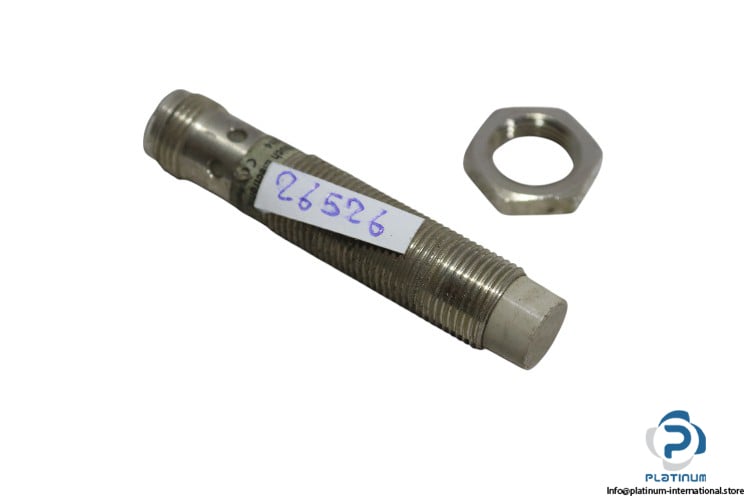

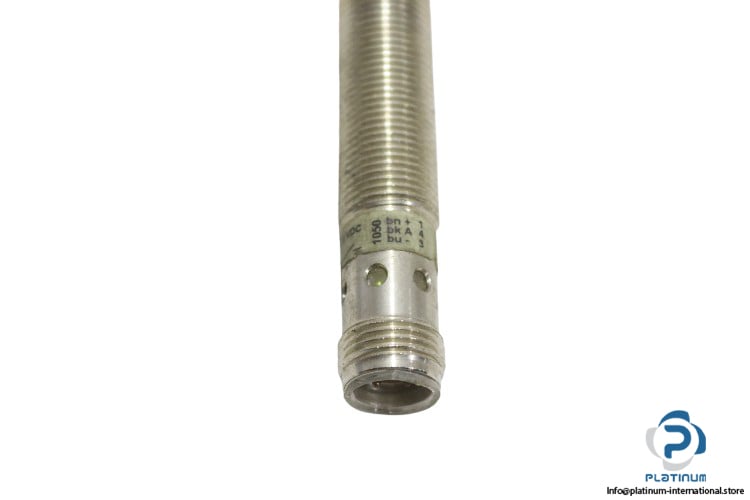

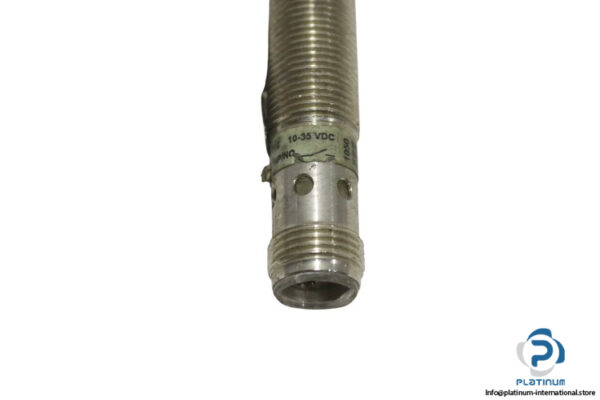

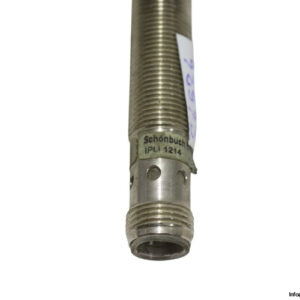

Schonbuch IPLI1214 “ Inductive Proximity Sensor

The Schonbuch IPLI1214 inductive proximity sensor is designed for precise detection of metallic objects, offering reliable performance in demanding industrial environments. With its non-flush design and robust M12 connector, it ensures smooth operation across a wide temperature range.

• Manufacturer: Schonbuch
• Type: Inductive Proximity Sensor
• Model: IPLI1214

Technical Information:

• Switching Distance: 4 mm
• Nominal Voltage: 24 VDC
• No-load Current: 10 mA
• Voltage Range: 10 to 35 V DC
• Ampacity: 300 mA
• Outlet: PNP, NO
• Connection Type: Plug M12
• Design: M12
• Diameter: M12x1
• Installation Type: Non-flush
• Length: 54 mm
• Switching Frequency: 1000 Hz
• Switching Hysteresis: 15%
• Protection Class: IP67
• Voltage Drop: 2 V
• Temperature Drift: 10 °C
• Environment Temperature: -25 to 70 °C
• Material: Nickel Plated Brass
