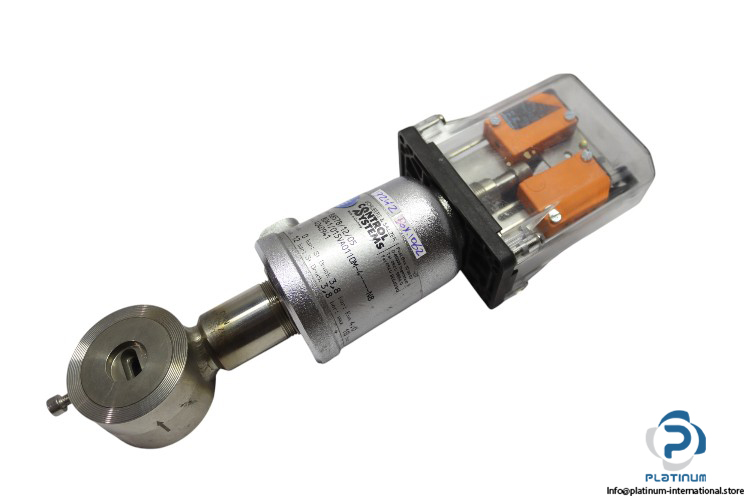

Schubert & Salzer 88578/12/05 Sliding Gate Valve with IFM IN5121 Inductive Sensor

The **Schubert & Salzer 88578/12/05 Sliding Gate Valve** is designed for precise control and reliable performance in industrial applications. Made from high-quality **stainless steel 1.4408**, it is suitable for media temperatures from **60°C to 230°C** and is rated for **PN 40 pressure**. The valve is equipped with a **G1/8 port size** and includes an **IFM IN5121 inductive sensor** for enhanced functionality and accurate sensing.

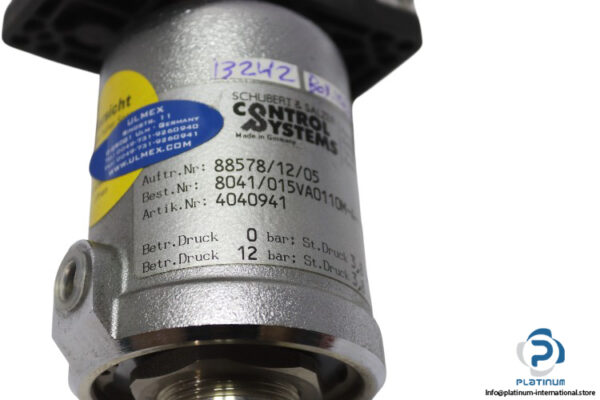

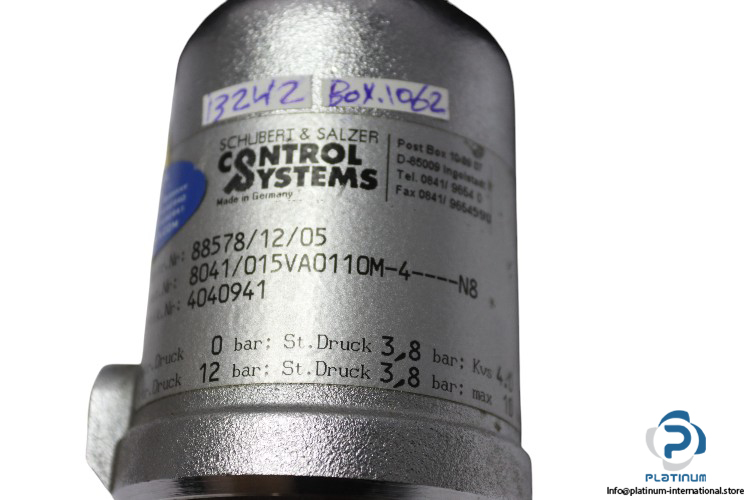

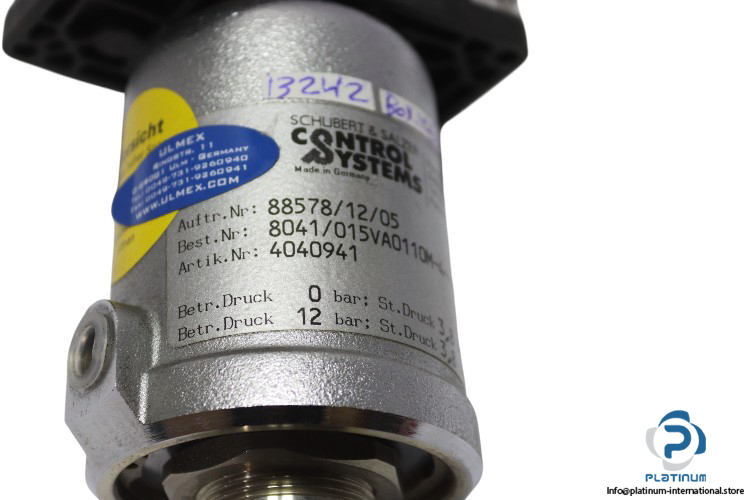

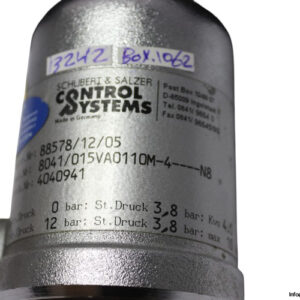

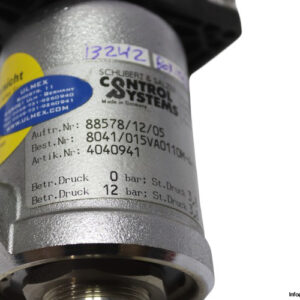

Manufacturer (Valve): Schubert & Salzer

Type (Valve): Sliding Gate Valve

Model (Valve): 88578/12/05

Part No. (Valve): 8041/015VA0110M-4—-N8

Art No. (Valve): 4040941

Rf No. (Valve): 442 071 / MH3

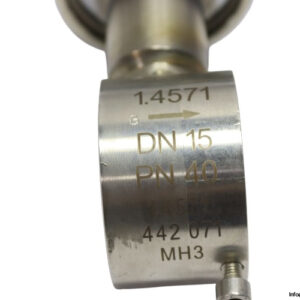

Technical Data (Valve):

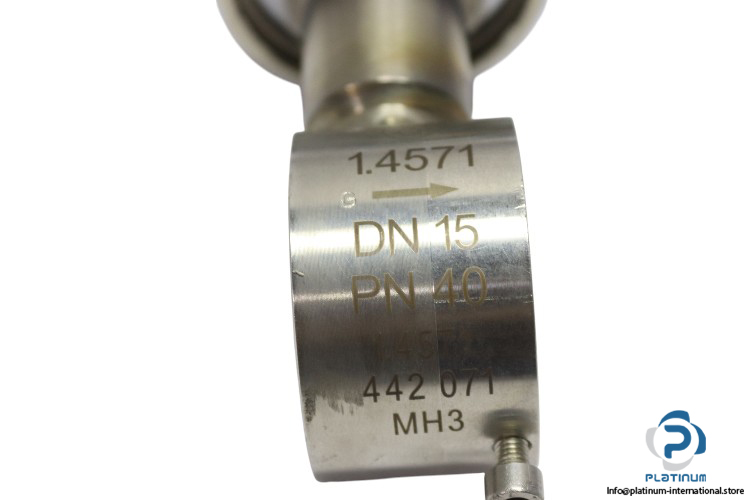

• Size: DN15
• Pressure: PN 40
• Media Temperature: 60°C up to 230°C
• Material: Stainless Steel 1.4408
• Port Size: G1/8
• Attached With: IFM IN5121 Inductive Sensor

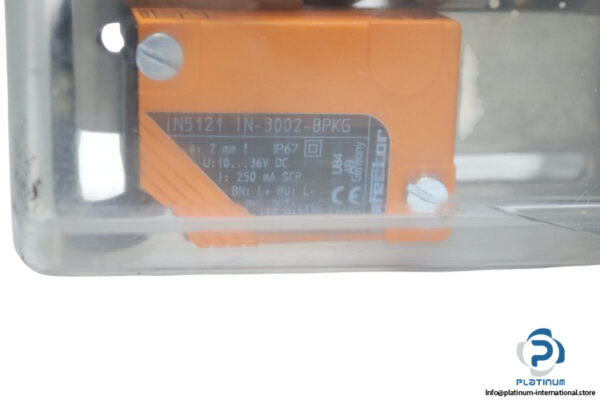

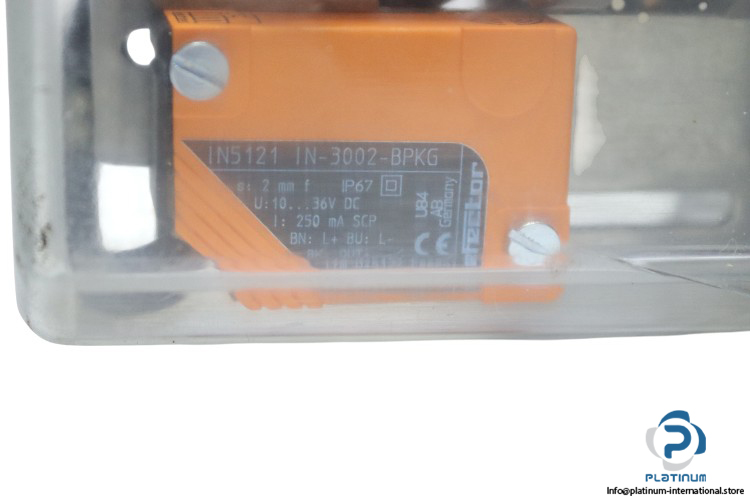

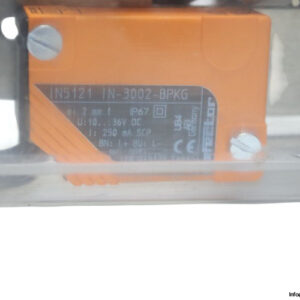

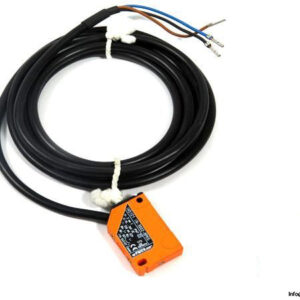

Manufacturer (Sensor): IFM

Type (Sensor): Inductive Sensor

Part No. (Sensor): IN5121

MRN (Sensor): IN-3002-BPKG

Technical Data (Sensor):

• Sensing Range: 2 mm
• Real Sensing Range: 2 ± 10% mm
• Operating Distance: 0 / 1.6 mm
• Operating Voltage: 10 / 36 V DC
• Switching Frequency: 1400 Hz
• Switching Output Current: 250 mA DC
• Electrical Design: PNP
• Output Function: Normally open
• Connector Type: PVC Cable
• Protection Class: II
• Enclosure Rating: IP67
• Housing: Rectangular
• Ambient Operating Temperature: -25 / 80°C
• Dimensions: 40 x 12 x 26 mm
