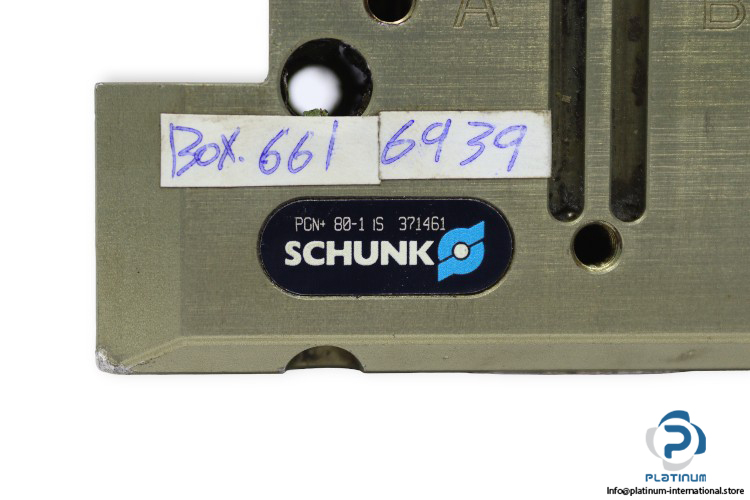

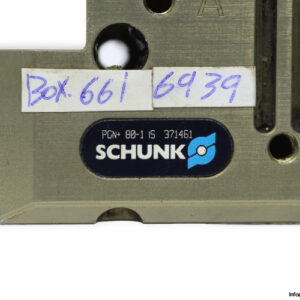

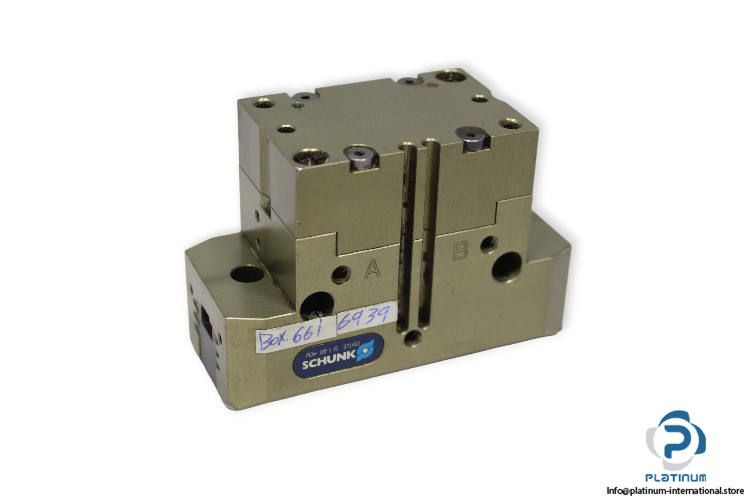

Manufacturer: SCHUNK
Type: Universal Gripper
Model: PGN+ 80-1-IS
Part No.: 371461
Media: Compressed air
Stroke per gripper jaw: 8 mm
Opening Force: 620 N
Min. spring force: 155 N
Cylinder volume per double stroke: 42.5 cm3
Operating pressure: 4 … 6 bar
Nominal operating pressure: 6 bar
Gripper function: Parallel
Closing time: 0.05 s
Opening time: 0.03 s
Max. permissible finger length: 105 mm
Max. axial force Fz max.: 1500 N
Ambient temperature: 5 … 90°C
