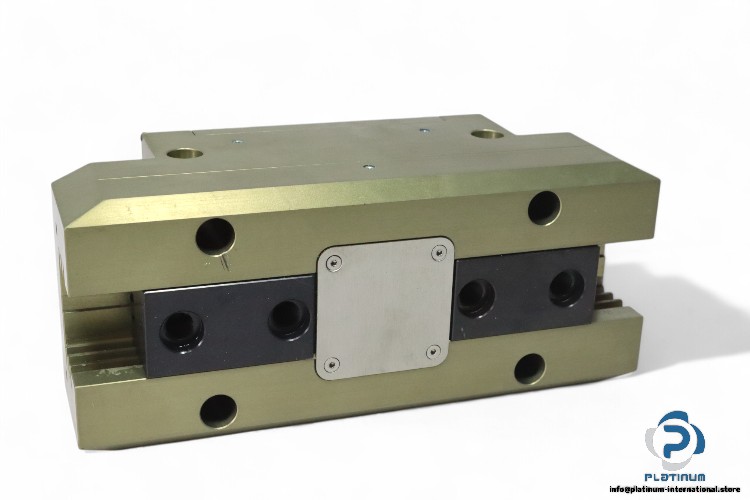

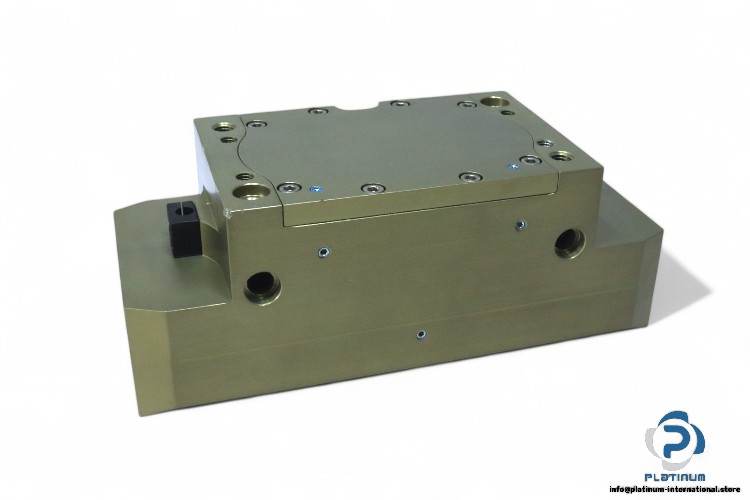

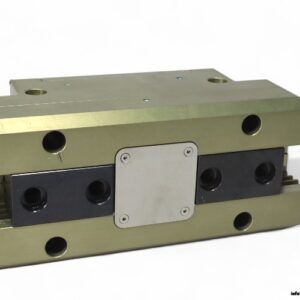

SCHUNK PGN+200/1 Universal Gripper
The SCHUNK PGN+200/1 Universal Gripper is a versatile and high-performance gripper designed for a wide range of industrial automation applications. With a stroke per finger of 25 mm and a closing force of 2700/2870 N, this gripper provides strong and precise gripping capabilities. The gripper is optimized for use at a nominal pressure of 6 bar with a pressure range from 2.5 to 8 bar, ensuring adaptability to various system pressures.
🔧 Technical Specifications:
- Manufacturer: SCHUNK
- Type: Universal Gripper
- Model: PGN+200/1
- Part No.: 39371105
- Stroke Per Finger: 25 mm
- Closing Force: 2700/2870 N
- Air Consumption Per Double Stroke: 385 cm³
- Nominal Pressure: 6 bar
- Pressure Range: 2.5 / 8 bar
- Closing Time: 0.35 sec.
- Opening Time: 0.35 sec.
- Permissible Mass Per Finger: Max. 6.5 kg
- Ambient Temperature: 5 / 90 °C
- Protection Class: IP40
- Port Size: 1/8″
With fast opening and closing times of just 0.35 seconds each, the SCHUNK PGN+200/1 Universal Gripper is an ideal solution for applications requiring high-speed and precise handling. The gripper is capable of handling a maximum mass of 6.5 kg per finger, providing robust performance in a wide range of environments with an operating temperature range of 5 to 90 °C and protection class IP40 for durability.
