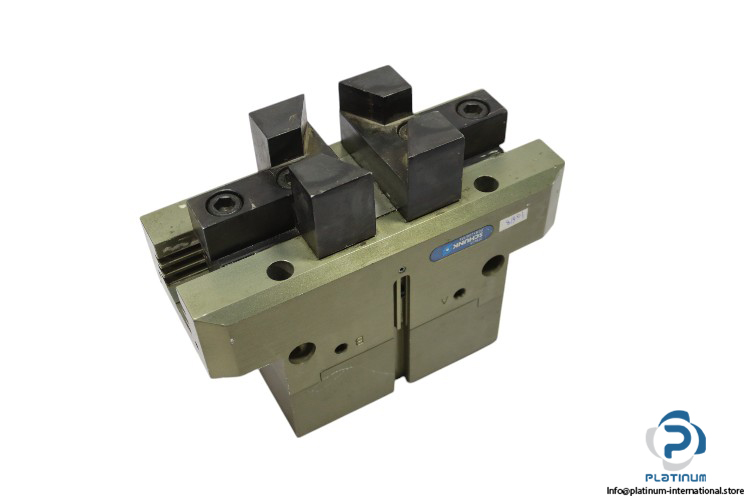

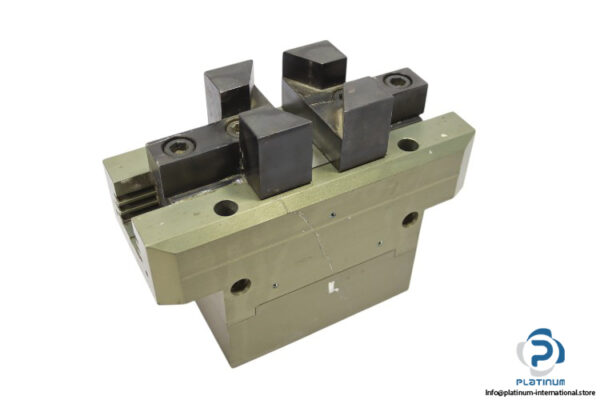

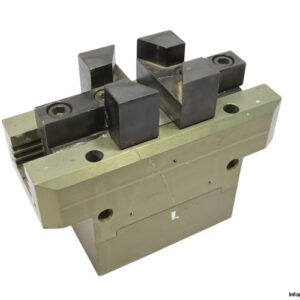

Schunk PGN-PLUS 200-1-AS Universal Gripper
The Schunk PGN-PLUS 200-1-AS Universal Gripper is a high-performance pneumatic gripper designed for precision handling in industrial automation. With a strong closing force of 3610 N and an efficient double-stroke cylinder system, this gripper ensures reliable and precise operation under demanding conditions.
- Manufacturer: Schunk
- Type: Universal Gripper
- Model: PGN-PLUS 200-1-AS

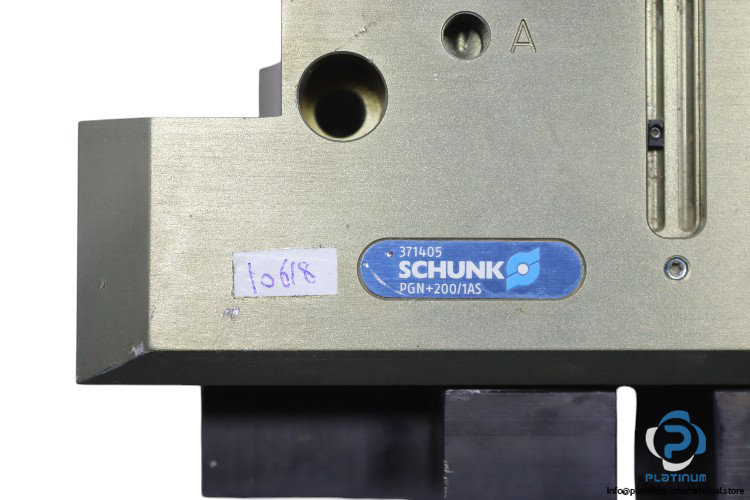

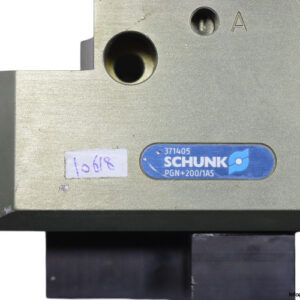

- Id. No.: 371405
Technical Information
- Actuation: Pneumatic, with filtered compressed air
- Stroke per Gripper Jaw: 25 mm
- Closing Force: 3610 N
- Min. Spring Force: 910 N
- Housing Material: Aluminum
- Base Jaw Material: Steel
- Cylinder Volume per Double Stroke: 495 cm³
- Operating Pressure: 4 to 6 bar
- Nominal Operating Pressure: 6 bar
- Closing Time: 0.3 s
- Opening Time: 0.6 s
- Max. Permissible Finger Length: 240 mm
- Max. Axial Force Fz max.: 5000 N
- Ambient Temperature: Max. 90°C
- Connection: G1/8
Designed for industrial robotics and automation, the Schunk PGN-PLUS 200-1-AS delivers exceptional precision, durability, and force, making it a reliable solution for high-precision gripping applications.
