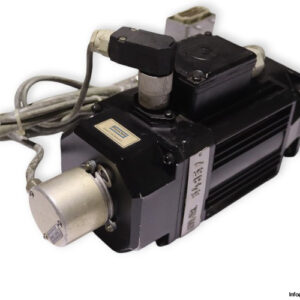

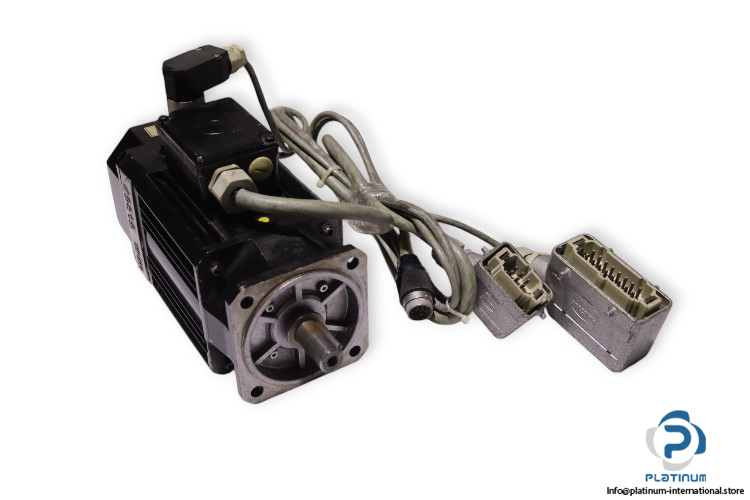

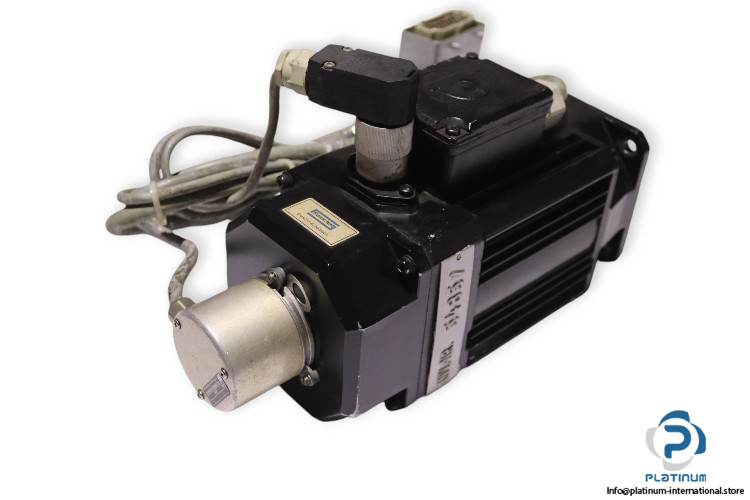

SEIDEL SM56-S 3.000 SERVO MOTOR WITH HEIDENHAIN ROD 426 E 500 ENCODER

The SEIDEL SM56-S 3.000 is a high-performance servo motor designed for precision motion control in continuous-duty industrial applications. Equipped with a robust HEIDENHAIN incremental encoder, it ensures accurate position feedback and operational efficiency.

Manufacturer: SEIDEL
Type: Servo Motor
Model: SM56-S 3.000
Item no.: 1189490

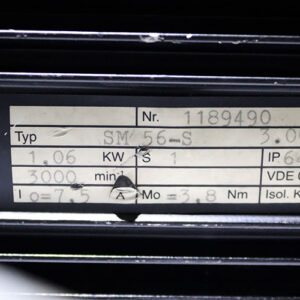

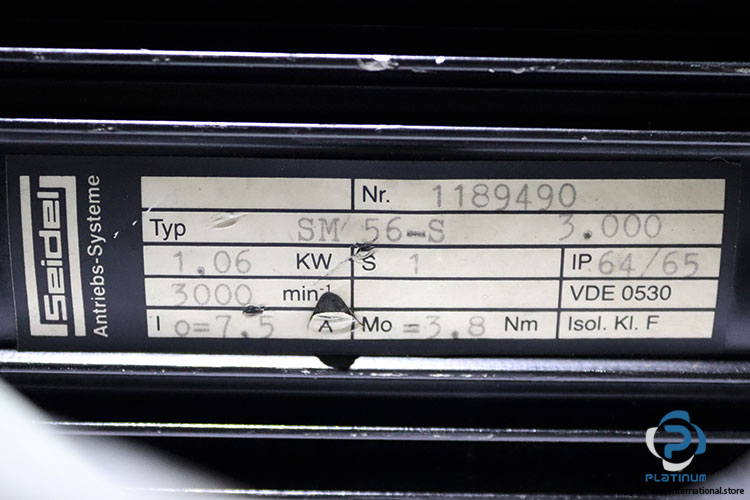

Technical Information – Servo Motor

• Nominal Speed: 3000 min»¹
• Power: 1.06 kW
• Protection Class: IP64/IP65
• Stall Torque: 3.8 Nm
• Stall Current: 7.5 A
• Duty: S1 (Continuous)
• Insulation Class: F

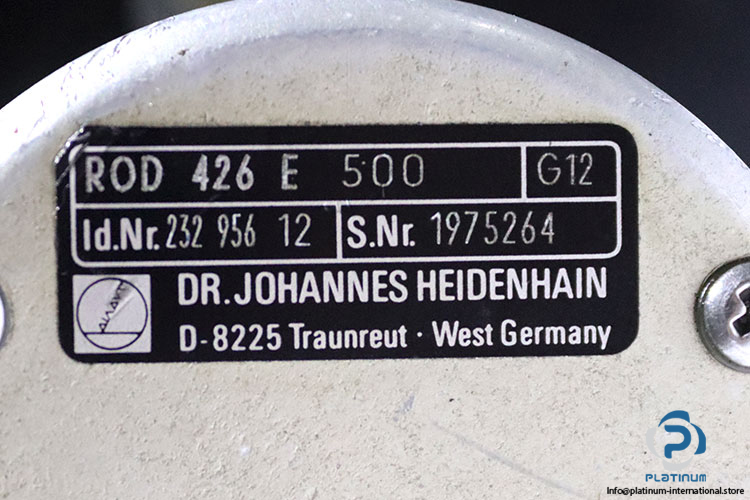

Attachment – Incremental Encoder

• Manufacturer: HEIDENHAIN
• Type: Incremental Encoder
• Model: ROD 426 E 500
• Id. No.: 232 956 12
• Flange Design: Synchro Flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 500 PPR (Pulses per Revolution)
