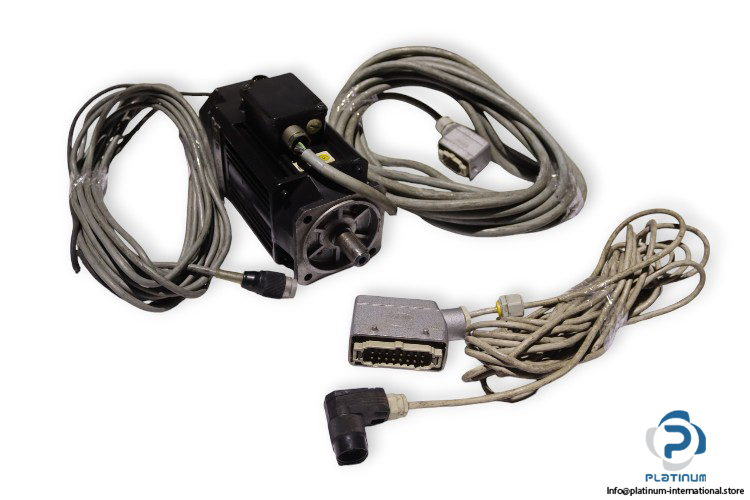

KOLLMORGEN SEIDEL SM56S 3000-426 SERVO MOTOR WITH HEIDENHAIN ROD 426 E 500 ENCODER
This industrial-grade servo motor by Kollmorgen Seidel offers high precision, consistent performance, and robust construction. Integrated with a HEIDENHAIN ROD 426 E 500 encoder, it ensures optimal feedback accuracy for automation systems.

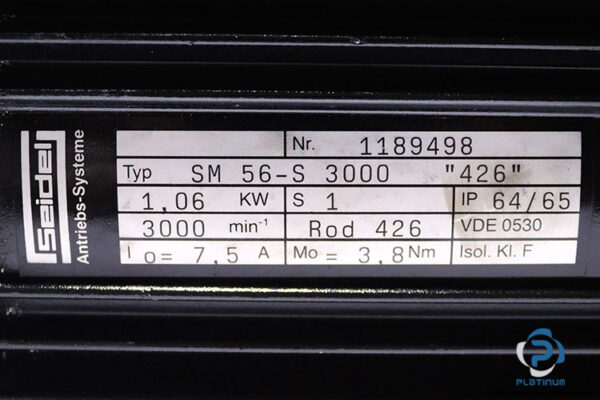

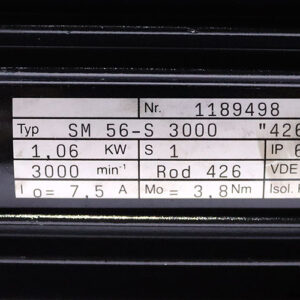

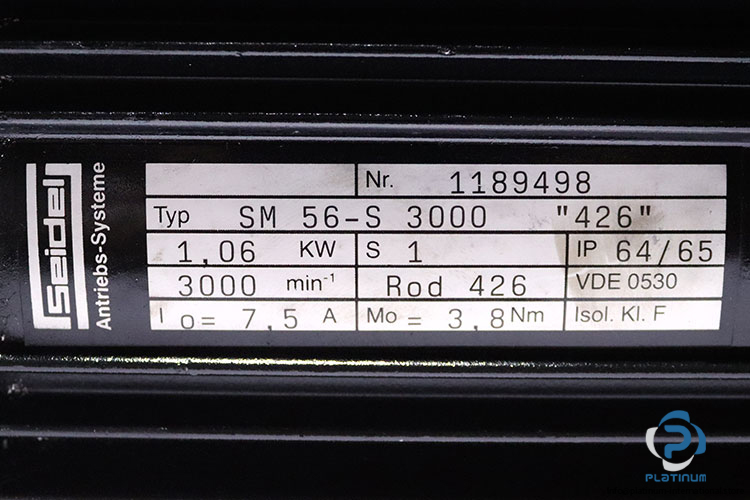

Motor Specifications
Manufacturer: KOLLMORGEN SEIDEL
Type: Servo Motor
Model: SM56S 3000-426
Part No.: 1189498
- Nominal Speed: 3000 min»¹
- Power: 1.06 kW
- Stall Torque: 3.8 Nm
- Stall Current: 7.5 A
- Duty: S1
- Insulation Class: F
- Protection Class: IP64/IP65

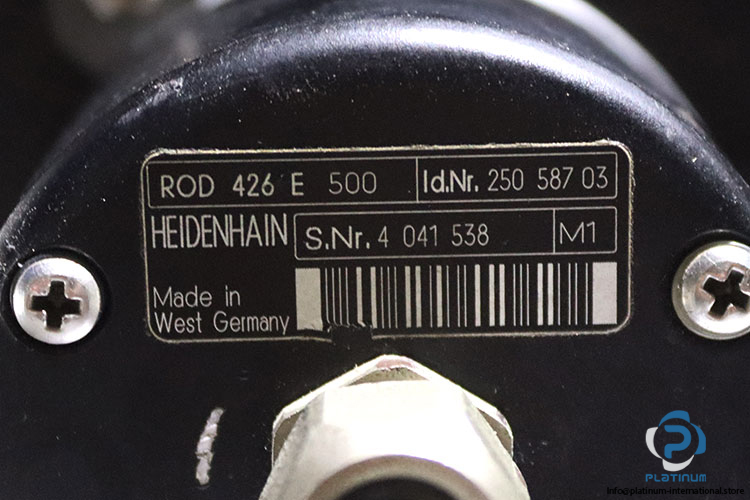

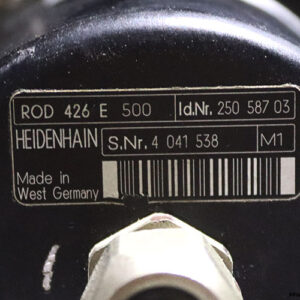

Encoder Specifications
Manufacturer: HEIDENHAIN
Type: Encoder
Model: ROD 426 E 500
ID No.: 250 587 03
Serial No.: 4 041 538
- Flange Design: Synchro Flange
- Shaft Design: Solid Shaft
- Shaft Diameter: 6 mm
- Voltage Supply: 5 VDC
- Resolution: 500 PPR
- Protection Class: IP67 (housing), IP64 (shaft inlet)
- Max Temperature: 100 °C
