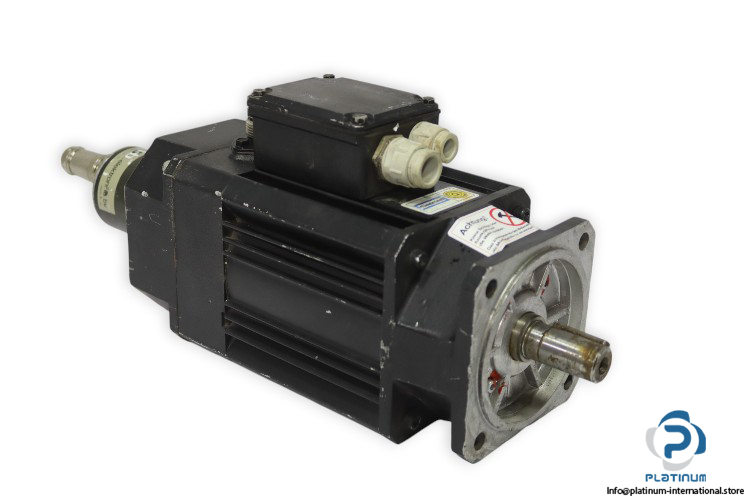

SEIDEL SM 56-S 3000-426 SERVO MOTOR
This high-performance servo motor by Seidel is built for continuous-duty industrial applications requiring precision, stability, and dynamic response. It features a robust IP64/65-rated enclosure and comes integrated with a Lenord+Bauer GEL 207 rotary encoder for accurate positioning and feedback control.

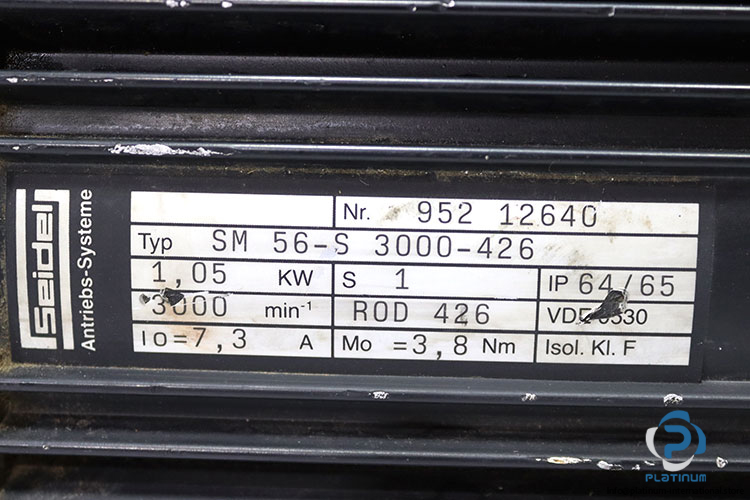

Manufacturer: Seidel
Type: Servo Motor
Model: SM 56-S 3000-426
Part No.: 952 12640
Technical Information
- Power: 1.05 kW
- Speed: 3000 rpm
- Current: 7.3 A
- Torque: 3.8 Nm
- Duty: S1 (Continuous)
- Class: F
- IP Rate: IP64/65

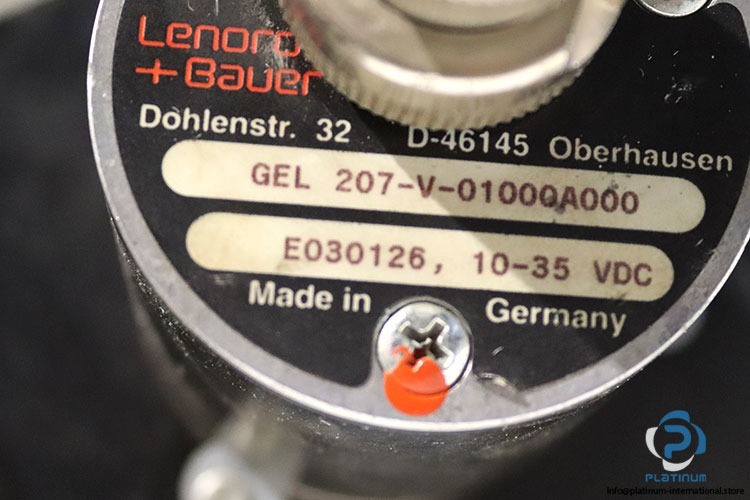

Rotary Encoder
- Encoder Name: ROD 426
- Attached With: LENORD+BAUER GEL 207-V-01000A000
- Encoder Part No.: E030126
- Voltage: 10 to 35 V DC
- Design: With synchro flange, various shaft diameters and lengths
- Resolution: 37 to 136 or 192 pulses/rev
