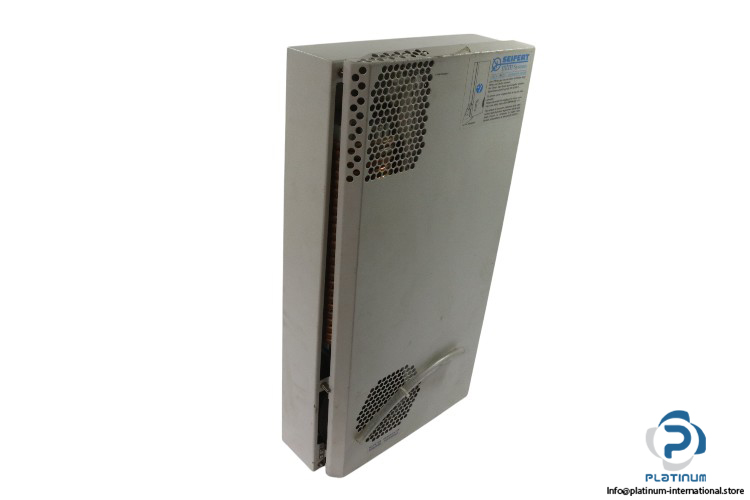

SEIFERT MTM SYSTEM KG-4269 Enclosure Cooling Unit

The SEIFERT MTM SYSTEM KG-4269 is a highly efficient enclosure cooling unit designed to regulate temperature and maintain optimal conditions for sensitive equipment. Featuring a rotary piston compressor, it is suitable for industrial applications where reliable cooling performance is required.

Manufacturer: SEIFERT / MTM SYSTEM

Type: Enclosure Cooling Unit

Model: KG-4269

Art Number: 42691001

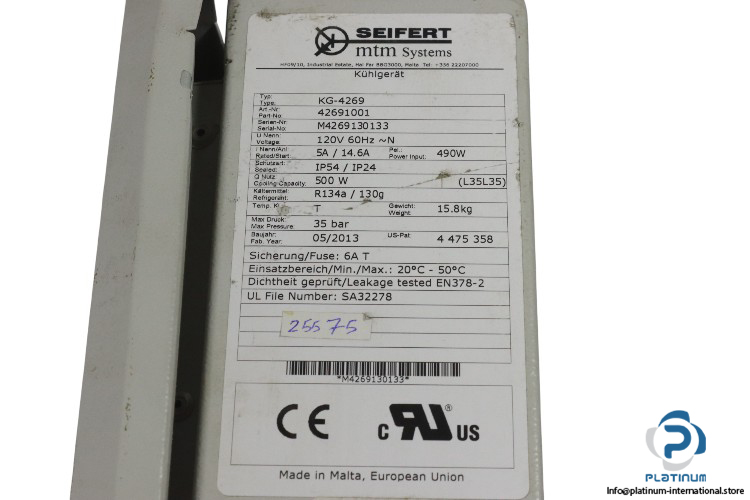

Technical Data:

• Voltage / Frequency: 120 V at 60 Hz
• Starting Current: 5 A
• Rated Current: 14.6 A
• Input Power: 490 W
• Max Pressure: 35 bar

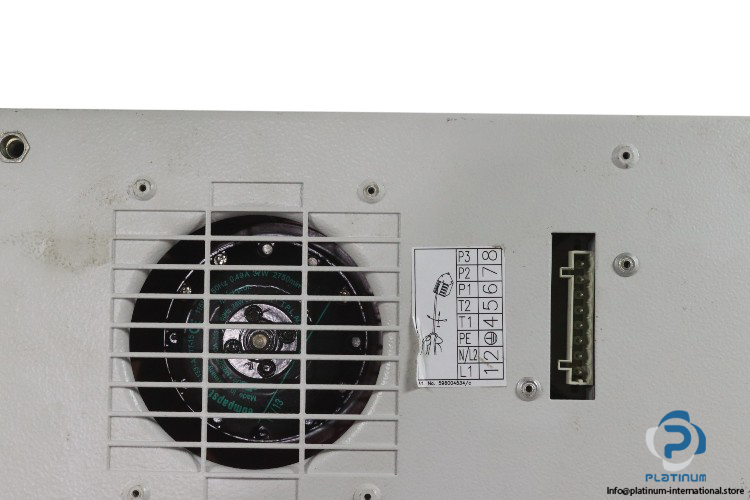

• Connection: Terminal block
• Housing Material: Stainless steel AISI 304 (V2A)
• IP Protection Class: IP 54 / IP 24
• Compressor Type: Rotary piston compressor
• Air Flow Volume (System / Unimpeded):
• Ambient Air Circuit: 250 / 650 m³/h
• Cabinet Air Circuit: 125 / 250 m³/h
• Operating Temperature Range: 20°C – 50°C
• Mounting: Wall mounted / Recessed
• Dimensions: 635 x 330 x 110 mm
