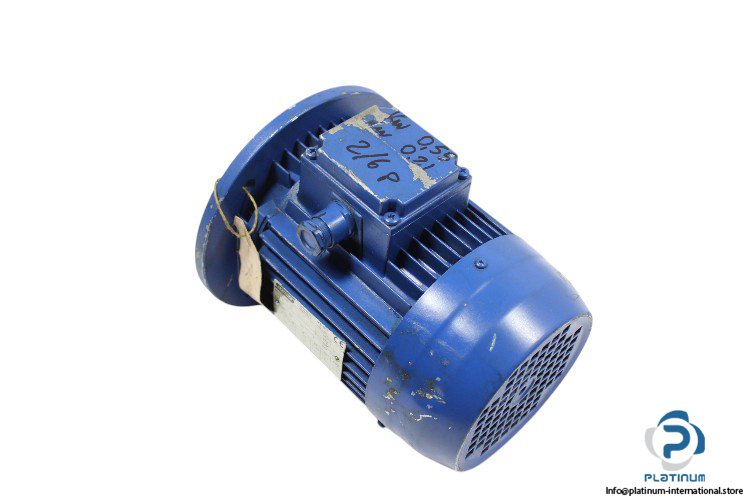

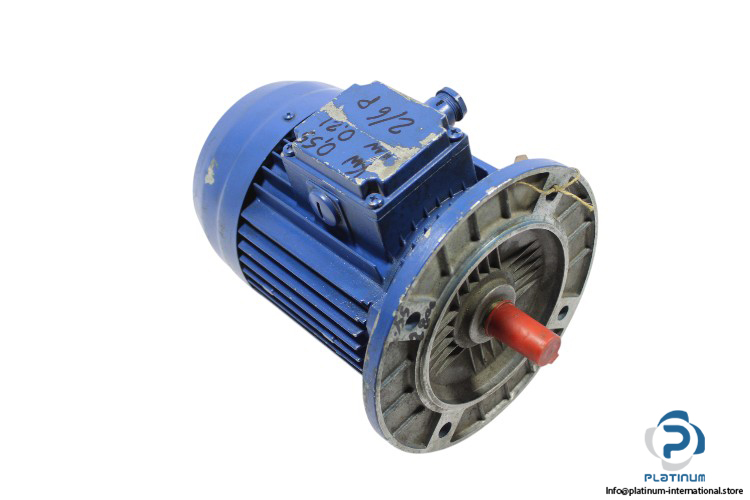

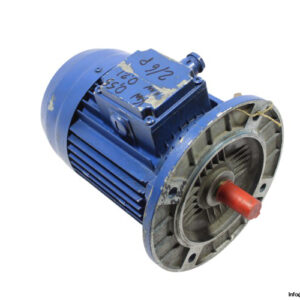

S.E.I.M.E.C. 3-PHASE ELECTRIC MOTOR

The S.E.I.M.E.C. 3-Phase Electric Motor (Model: HF 80B 2.6 B5) is designed for high efficiency and reliability in industrial applications. With rated voltages of 400 V and different rated speeds at 50 Hz, this motor offers two different operating conditions with varying power outputs and current ratings, ensuring versatile performance in a range of environments.

Manufacturer: S.E.I.M.E.C.

Type: 3-Phase Electric Motor

Model: HF 80B 2.6 B5

Technical Specifications

• At 50 Hz:
• Rated Voltage: 400 V (Star)
• Rated Speed: 2730 rpm
• Power Factor: 0.89
• Rated Power: 0.55 kW
• Rated Current: 1.65 A
• At 50 Hz (Alternate Configuration):
• Rated Voltage: 400 V (Star)
• Rated Speed: 925 rpm
• Power Factor: 0.68
• Rated Power: 0.21 kW
• Rated Current: 0.84 A
