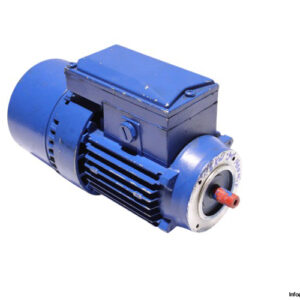

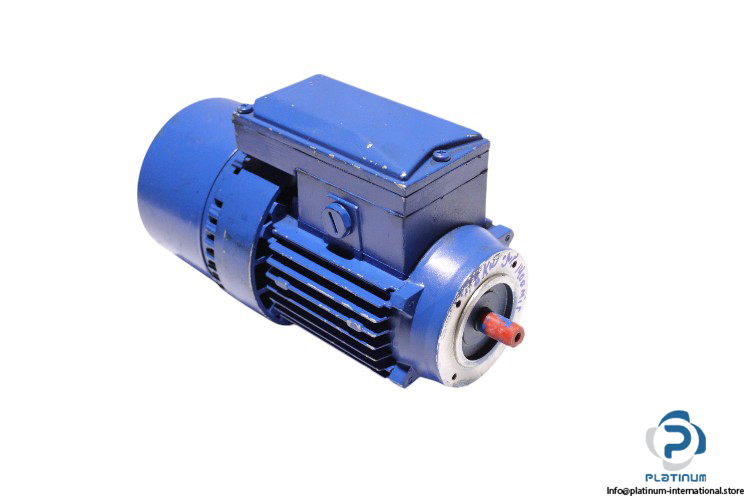

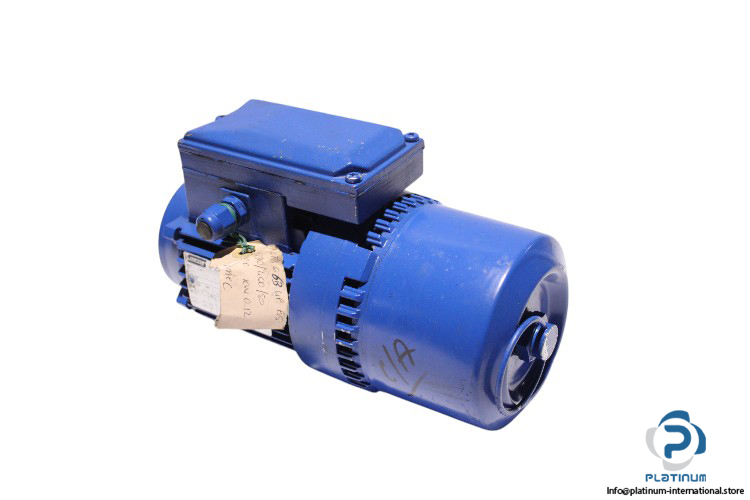

SEIMEC HFF63B4B14 BRAKE MOTOR

The SEIMEC HFF63B4B14 Brake Motor offers reliable performance for various industrial applications. It features a rated power range of 0.18 / 0.22 kW, rated speed of 1360 / 1630 min-1, and protection class IP54 for enhanced durability. Designed for both 50 Hz and 60 Hz operation, it ensures versatility and efficiency in demanding environments.

Manufacturer: SEIMEC

Type: Brake Motor

Model: HFF63B4B14

Part No.: 32905/08 2/08

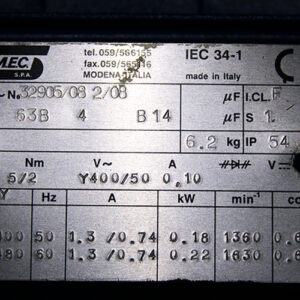

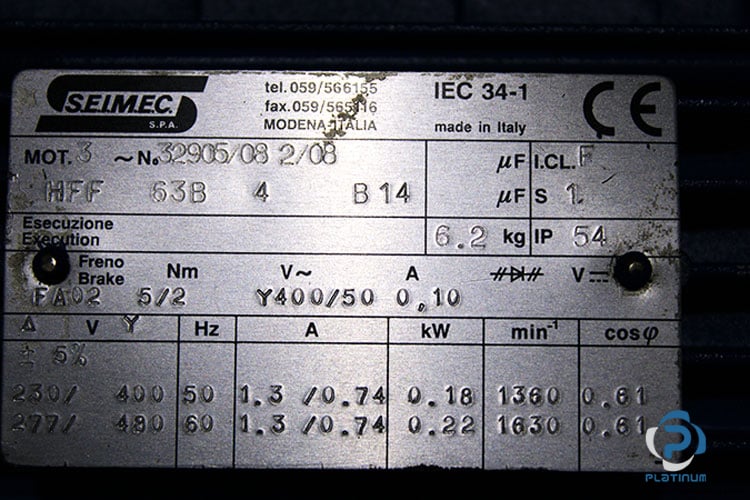

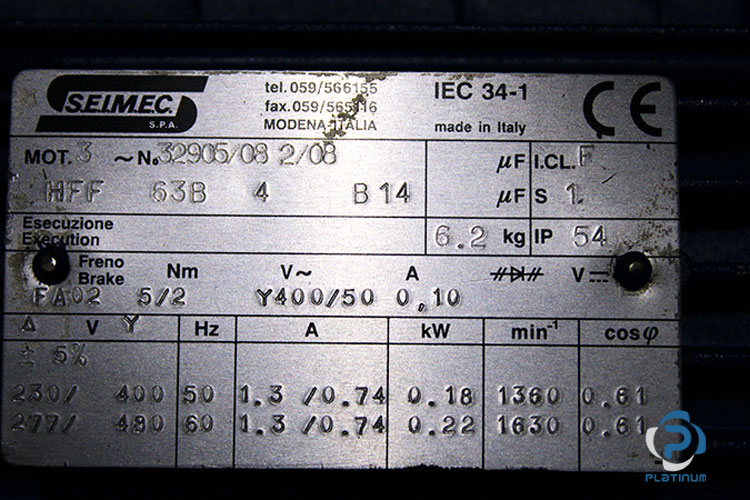

Technical Specifications

• Rated Power [kW]: 0.18 / 0.22
• Rated Voltage [V]: 230 / 400 at 50 Hz, 277 / 480 at 60 Hz
• Rated Current [A]: 1.3 – 0.74 / 1.3 – 0.74
• Rated Speed [min-1]: 1360 / 1630
• Frequency [Hz]: 50/60
• Protection Class [IP]: 54
• Thermal Class: F
• Duty: S1
• Power Factor [cos]: 0.61
• Brake: FA 02
• Rated Voltage [V]: 400 / 50
• Rated Current [A]: 0.10
• Rated Torque [Nm]: 5/2
