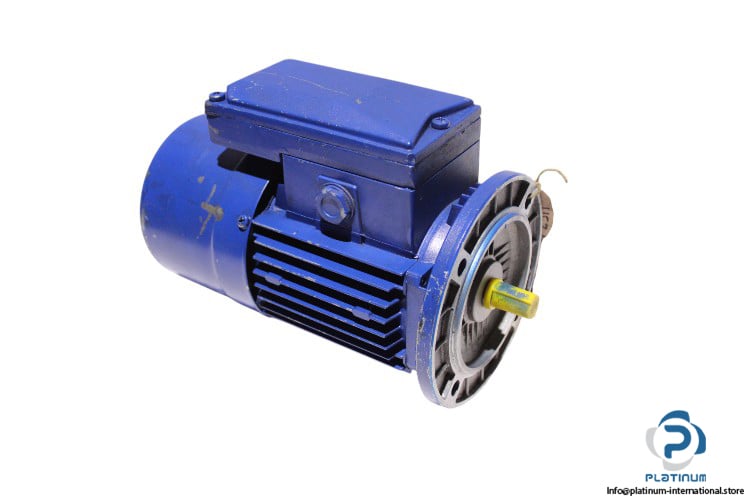

SEIMEC HFZ 63A 2 B5 BRAKE MOTOR
The SEIMEC HFZ 63A 2 B5 Brake Motor is designed for efficient and reliable operation in various industrial applications. With a rated power of 0.18 kW, it operates at a rated speed of 2800 min-1 and provides a high torque output, ensuring excellent performance and safety. Its durable construction and thermal class F make it a reliable choice for demanding environments.
Manufacturer: SEIMEC
Type: Brake Motor
Model: HFZ 63A 2 B5
Technical Specifications
- Rated Power [kW]: 0.18
- Rated Voltage [V]: 230 / 400
- Rated Current [A]: 0.83 / 0.48
- Rated Speed [min-1]: 2800
- Frequency [Hz]: 50
- Protection Class [IP]: 54
- Thermal Class: F
- Duty: S1
- Power Factor [cos]: 0.73
- Brake: ZC 02
- Rated Voltage [V] (Brake): 230 AC
- Rated Current [A] (Brake): 0.17
- Rated Torque [Nm]: 1.75
