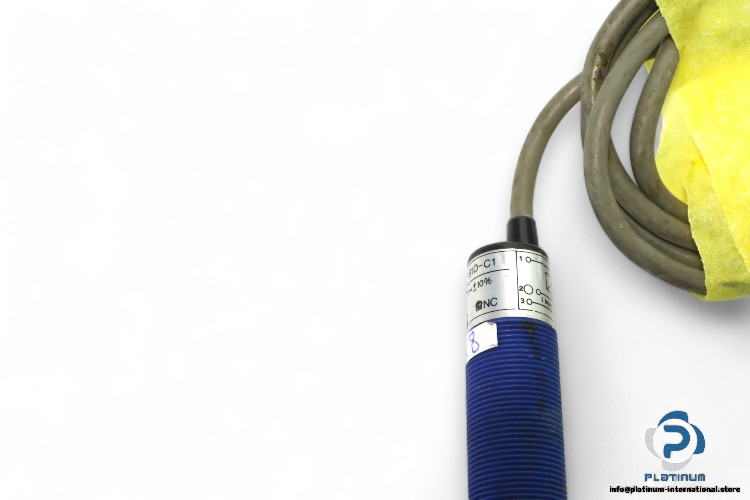

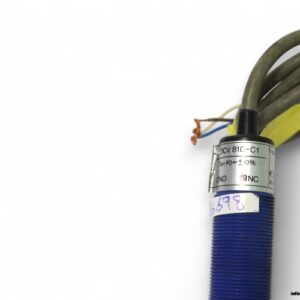

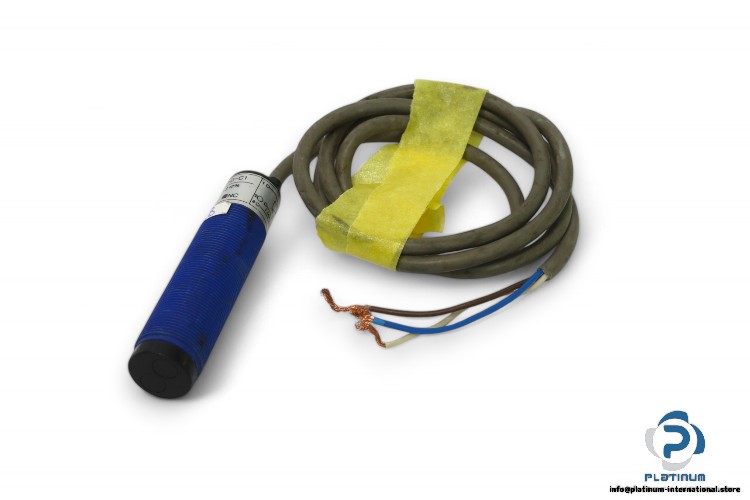

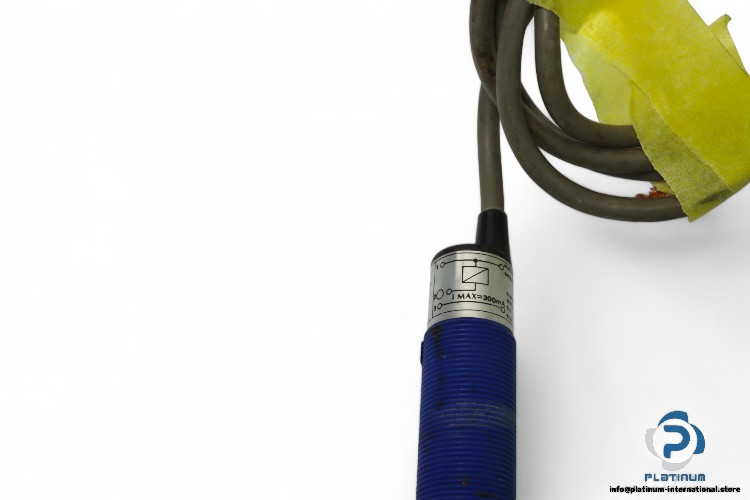

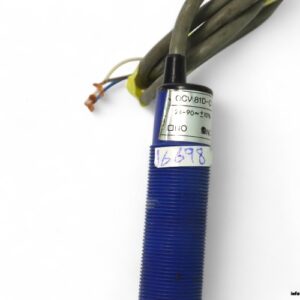

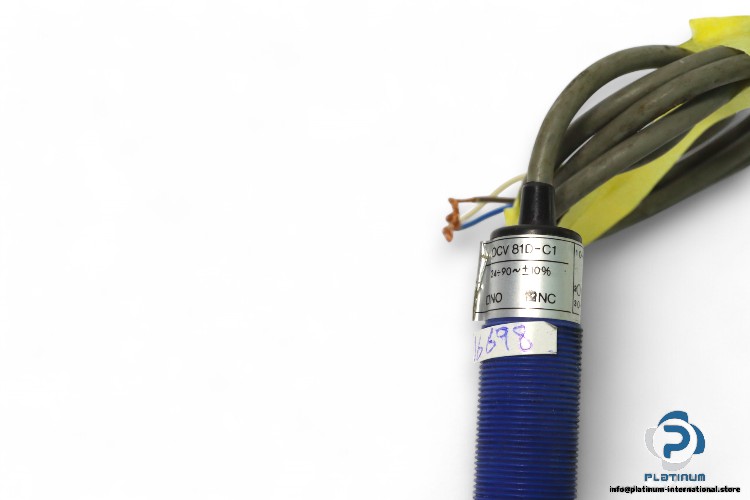

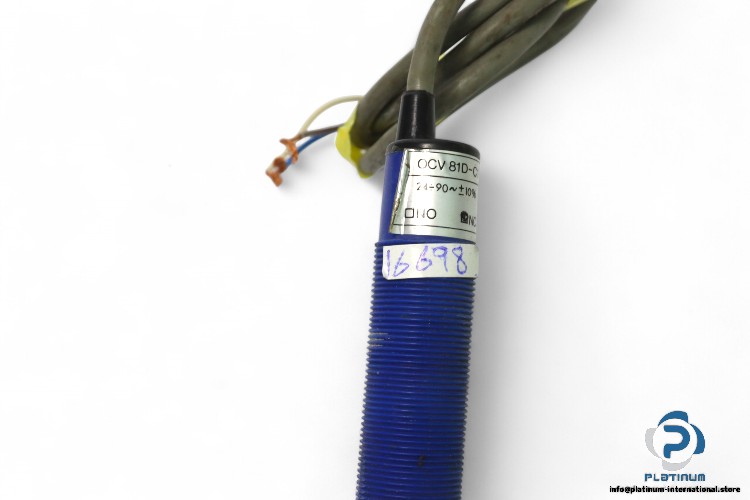

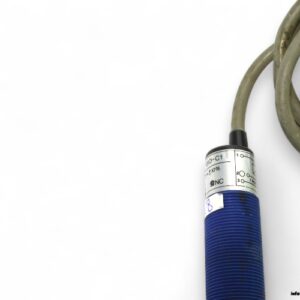

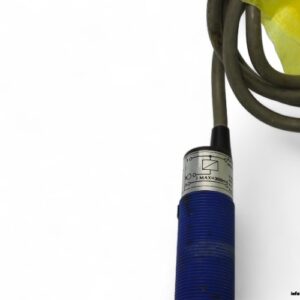

Manufacturer: SELET
Type: DIFFUSE PHOTOELECTRIC SENSOR
Model: OCV81D-C1

Sensing distance: D= 100 mm, D1= 200 mm, D2= 400 mm, D3= 600 mm, D4= 1000 mm

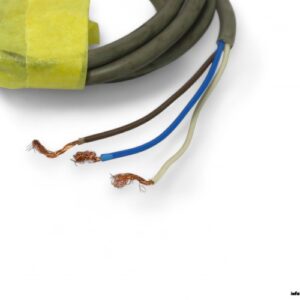

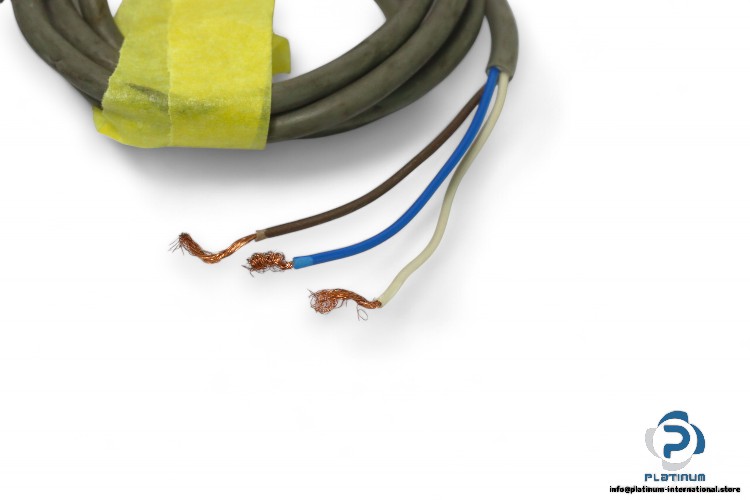

Electrical Connection: Cable and M12 connector output
DC features:
Sensor diameter: M18
Emission: PULSED IR 880 nm
Power supply: 10 … 30 V DC
Switching frequency: 150 Hz
Power consumption: 25 mA
Maximum load: 250 mA
Working temperature: -25°C … 70°C
IP rating: IP65
Metal housing: OTTONE NICHELATO / NICKEL PLATED BRASS
Plastic housing: ABS
Lenses material: PMMA

AC features:
Sensor diameter: M18
Emission: PULSED IR 880 nm
Power supply: 20 … 230 V AC
Switching frequency: 50 Hz
Power consumption: 4 Ma
Maximum load: 300 mA
Working temperature:  -25°C … 70°C
IP rating: IP65
Metal housing: OTTONE NICHELATO / NICKEL PLATED BRASS
Plastic housing: ABS
Lenses material: PMMA
