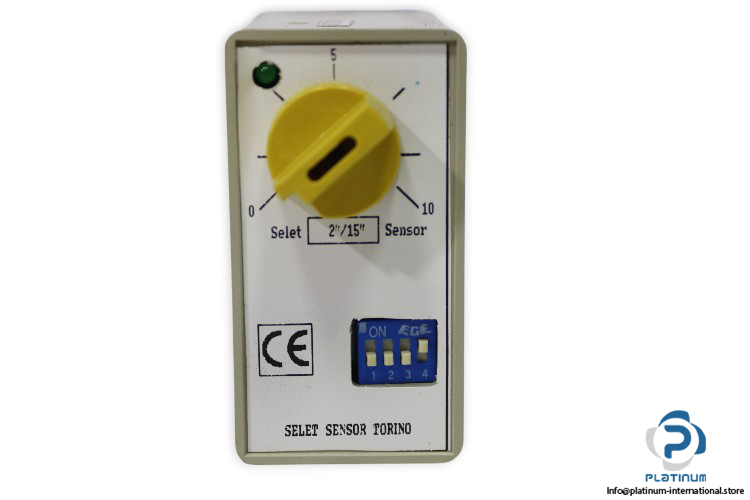

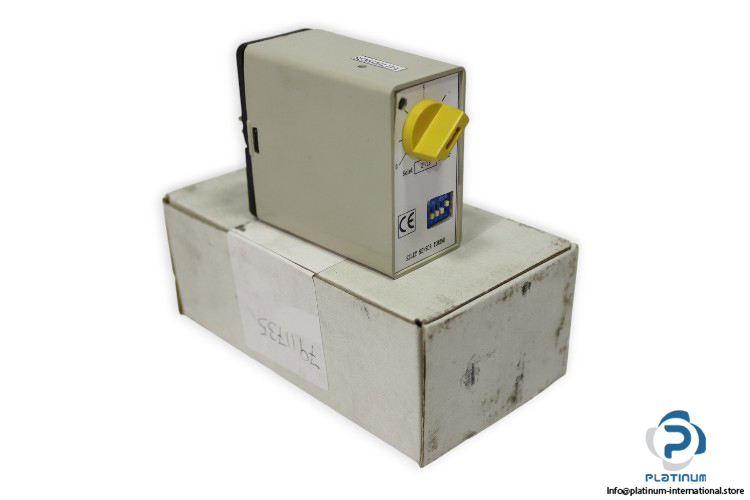

SELET SEL1500/24 SENSOR INTERFACE UNIT

This versatile sensor interface unit is designed to support industrial automation and sensor-based control systems. It provides precise detection, reliable switching, and flexible configuration for both sender and receiver detection modes. Ideal for integrating with optical or proximity sensors in high-performance environments.

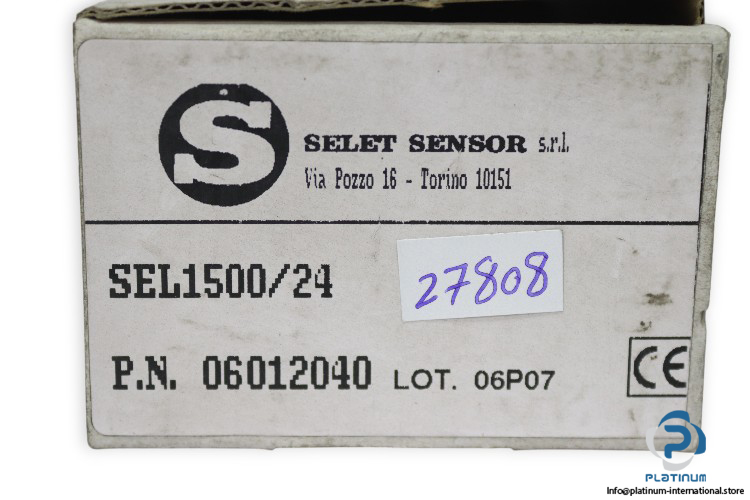

• Manufacturer: Selet Sensor
• Type: Sensor Interface Unit / Sensor Controller
• Model: SEL1500/24
• Part No.: 06012040
• Lot No.: 06P07

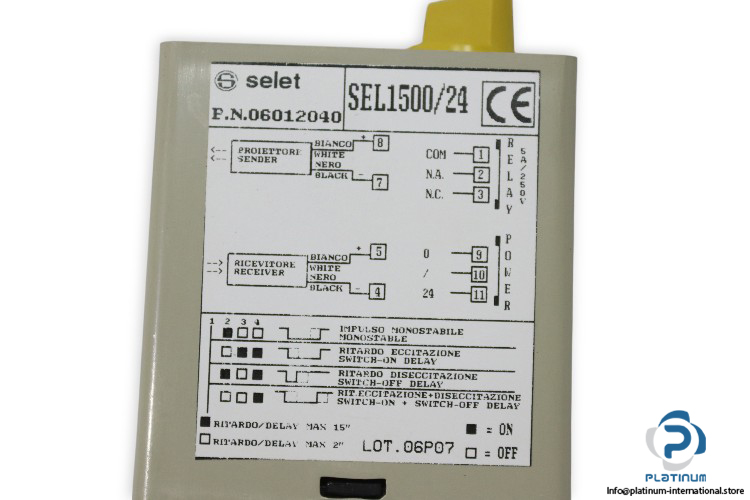

Technical Information

• Relay Voltage: 250 V
• Relay Current: 5 A
• Power Supply: 0 to 24 V
• Detecting Range: 0 to 10
• Switching Mode: ON/OFF Switching
• Detection Mode: Receiver, Sender
• Impulse at ON Delay: 15 seconds
• Impulse at OFF Delay: 2 seconds

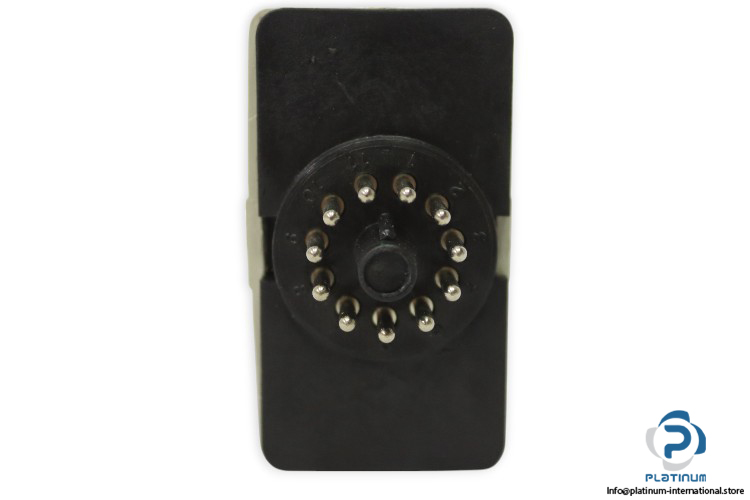

• No. of Pins: 11
