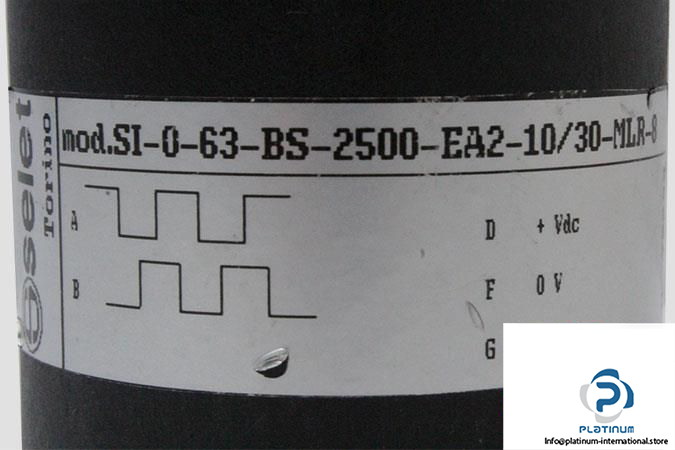

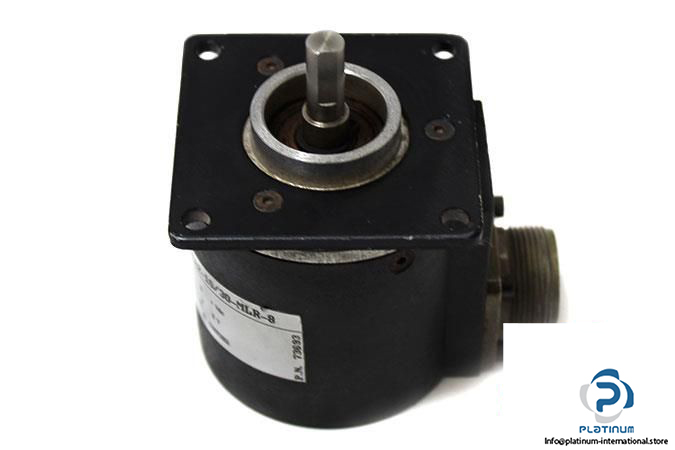

SELET SI-0-63-BS-2500-EA2-10/30-MLR-8 INCREMENTAL ENCODER

The SELET SI-0-63-BS-2500-EA2-10/30-MLR-8 is a high-precision incremental encoder engineered for demanding industrial automation systems. Designed with a square flange and solid shaft, this encoder offers accurate position feedback, excellent resolution, and robust environmental protection.

Manufacturer: SELET
Type: Incremental Encoder
Model: SI-0-63-BS-2500-EA2-10/30-MLR-8

Technical Information

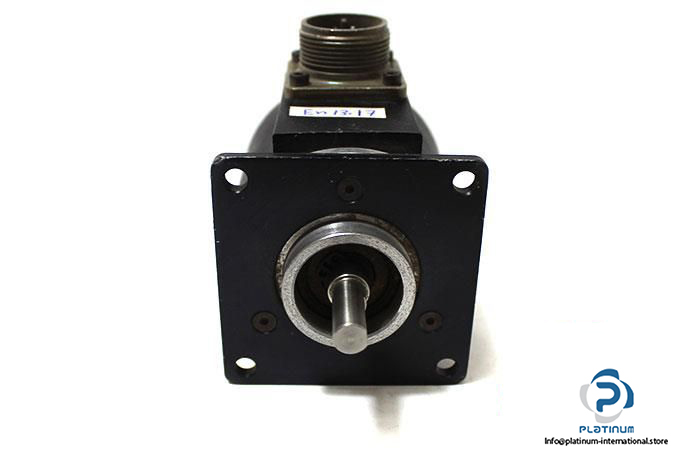

• Flange Type: Square Flange
• Shaft Type: Solid Shaft
• Frame Size Diameter: 63 mm
• Resolution: 2500 pulse per revolution (PPR)
• Voltage Supply: 10 / 30 V DC
• Output Circuits: Push-Pull (HTL)
• Output Frequency: 0 / 100 KHz

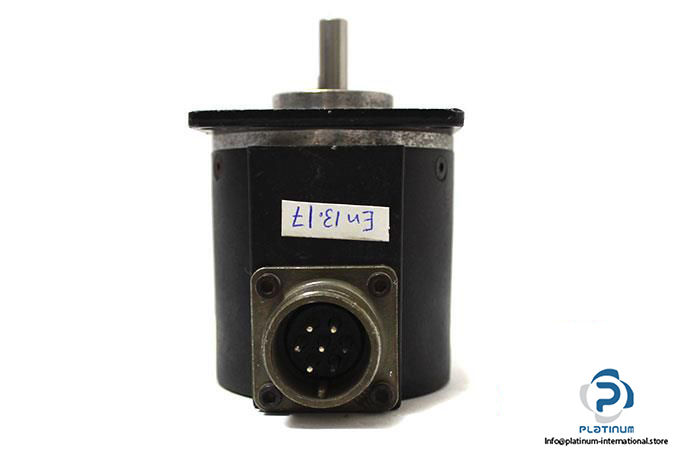

• Connection Type: Radial military connector (7 pins)
• Protection Class: IP65
