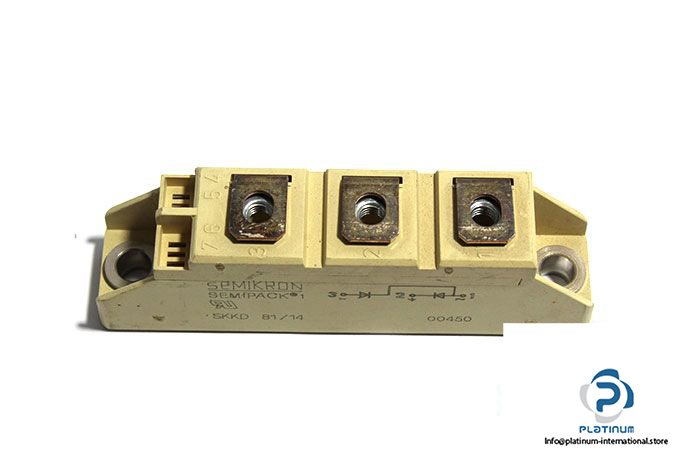

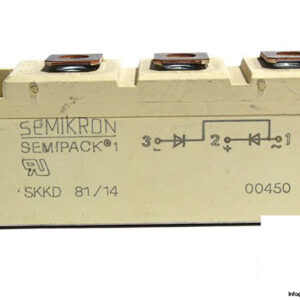

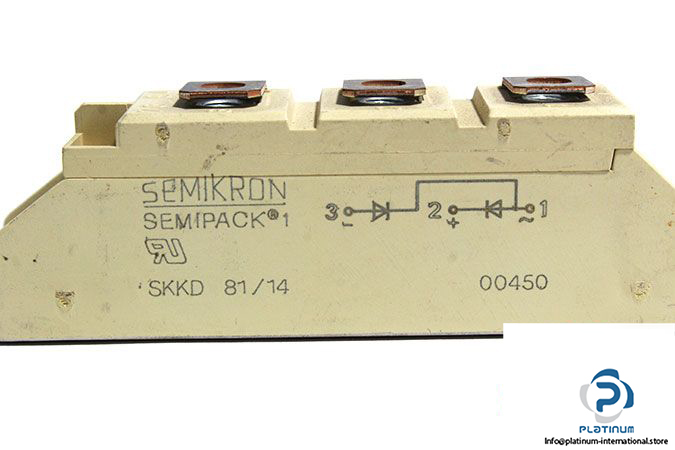

SEMIKRON SKKD81/14 RECTIFIER DIODE MODULE

The Semikron SKKD81/14 is a high-performance rectifier diode module from the Semipack family, designed for reliable power rectification in industrial applications. Built with a ceramic insulated metal baseplate, it ensures excellent heat transfer and robust performance in demanding environments.

Manufacturer: Semikron
Family: Semipack
Type: Rectifier Diode Module
Series: SKKD81
Model: SKKD81/14
Part No.: 00450

Technical Information

• Design: Heat transfer with ceramic insulated metal baseplate
• Applications: Non-controllable rectifiers for AC/AC converters, Line rectifiers for transistorized AC motor controllers, Field supply for DC motors
• IFRMS (Max continuous operation): 140 A
• ITAV (sin. 180; TCASE = 85 °C): 80 A
• VRSM: 1500 V
• VRRM: 1400 V
