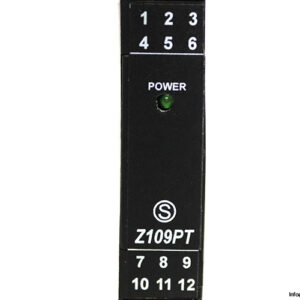

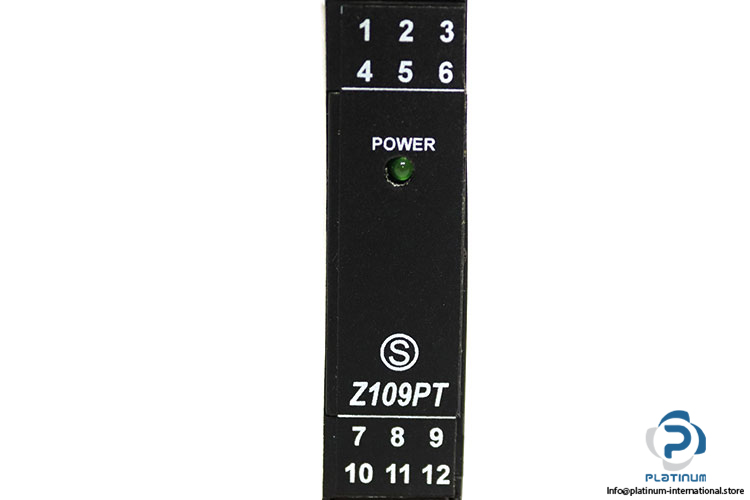

SENECA Z109PT Universal Converter
The SENECA Z109PT Universal Converter is a high-accuracy signal conditioning device designed for Pt100 temperature inputs and current output conversion. Built for industrial automation, it provides excellent precision, galvanic separation, and long-term stability.
Manufacturer: SENECA
Type: Universal Converter
Model: Z109PT
Series: Z

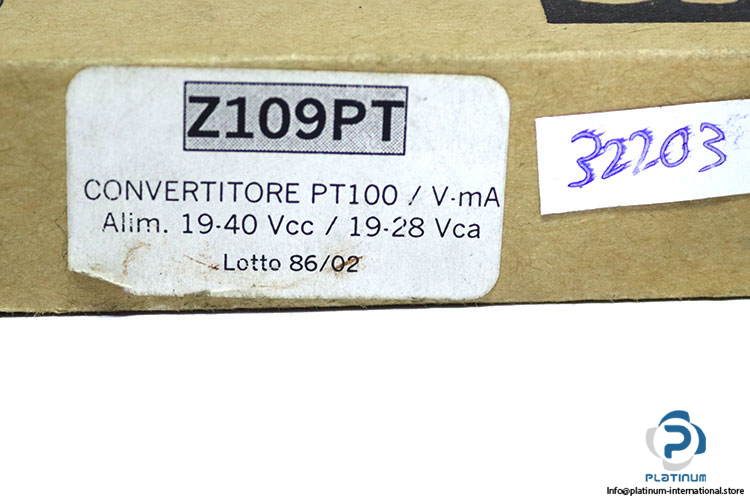

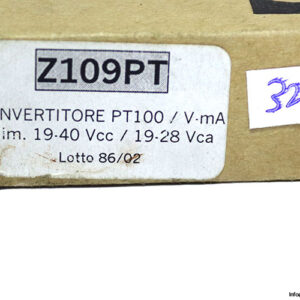

Code: 86/02, ET001310C
Technical Information
- Power Supply: 19 to 40 VDC, 19 to 28 VAC
- Power Consumption: Maximum 2.5 W

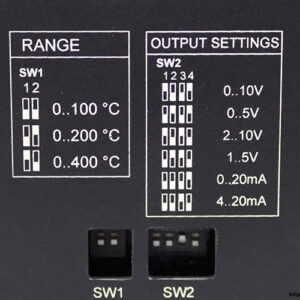

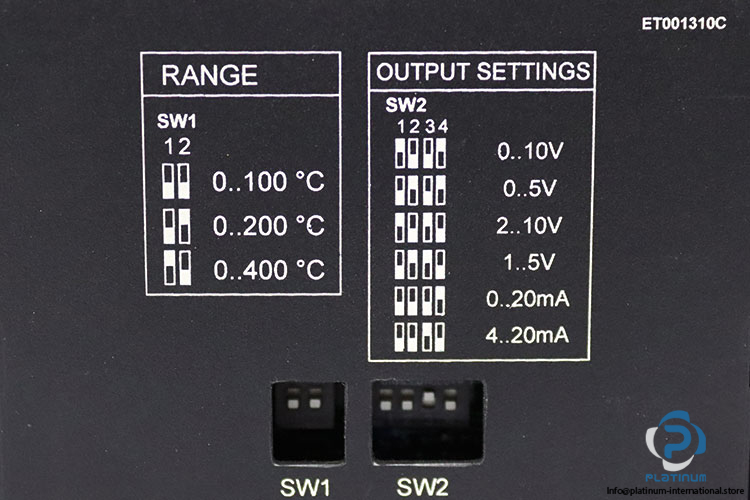

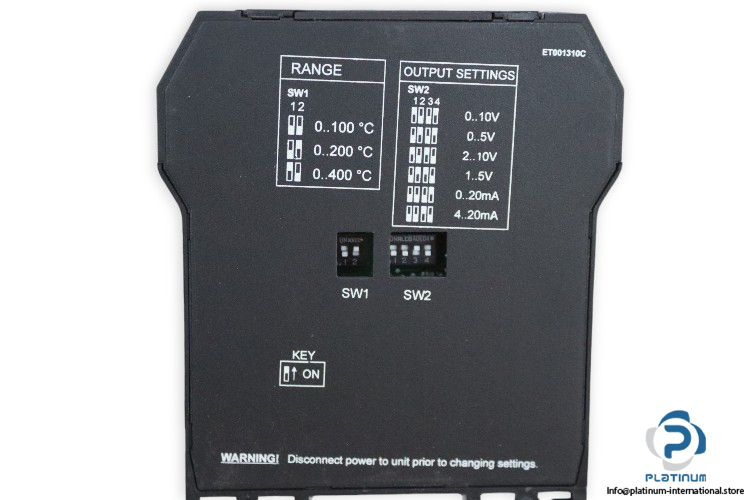

- Input: Pt100 (0 to 100, 0 to 200, 0 to 400 degree Celsius), 2 or 3 wire connections
- Excitation Current: 1 mA
- Output: Current (0 to 20 mA, 4 to 20 mA)

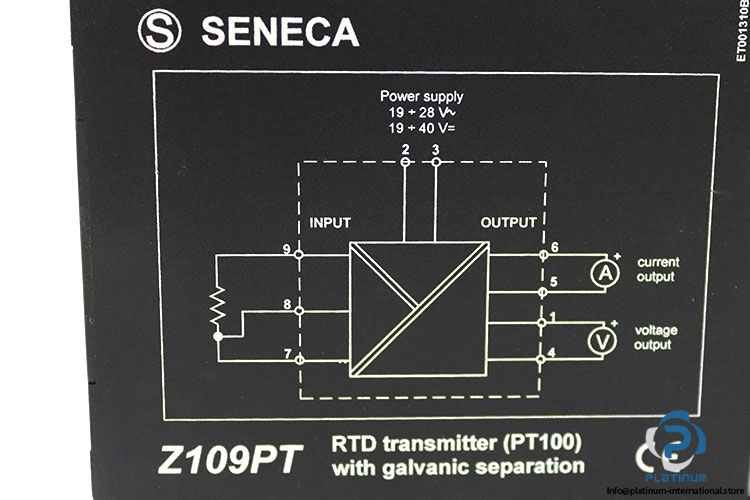

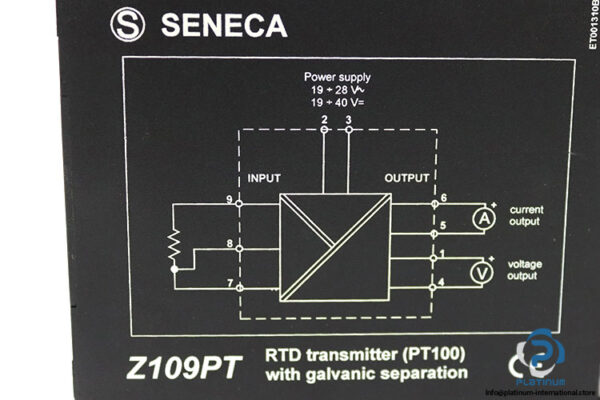

- Galvanic Separation: Power supply, input, and output (1500 VAC)
- Precision: Greater than plus or minus 0.2 percent
- Linearity: Greater than plus or minus 0.2 percent
- Stability: 200 ppm per degree Celsius
- Cable Resistance Interference: plus or minus 0.05 percent per Ohm (3 wires, maximum 10 Ohm)
- Output Impedance: 0 to 600 Ohm current loop impedance
- Burn-Out: Positive, output greater than 20 mA
- Operating Temperature: 0 to 50 degree Celsius
- Dimensions (W x H x D): 17.5 x 100 x 112 millimeters
