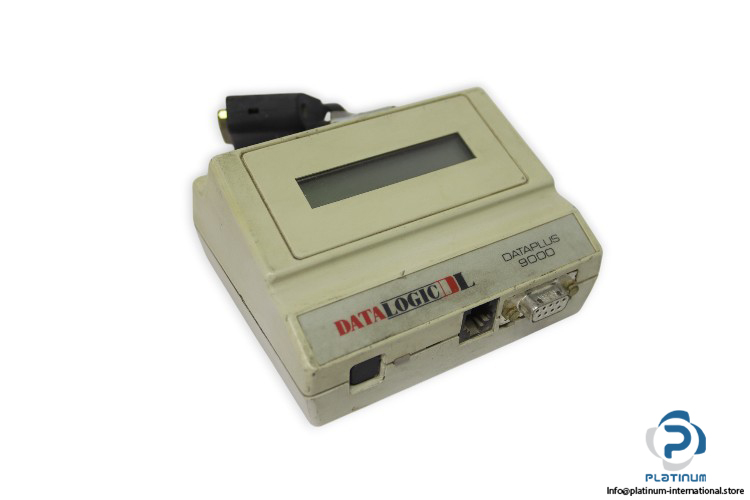

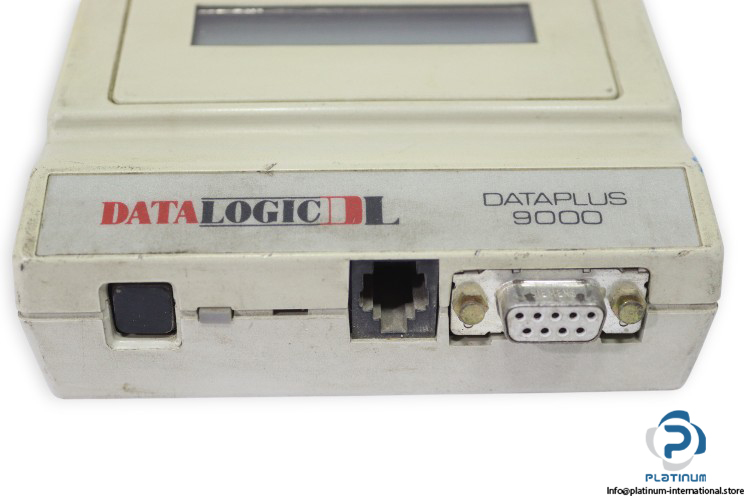

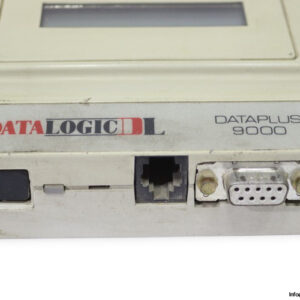

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE

data-logic-dps9000-14d-decoder-with-serial-interface-module(used)
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-1
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-3
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-1
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-3

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE

DECODER WITH SERIAL INTERFACE MODULE

DATA LOGIC DPS9000-14D from the DATAPLUS 9000 family supports optic pens, badge readers, handheld CCD and laser scanners with primary RS232/RS422/RS485 and auxiliary TTL“RS232 interfaces, 110“19,200 baud, and a 2×16 LCD display.

SKU: 1074708 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE

The DATA LOGIC DATAPLUS 9000 DPS9000-14D is a versatile decoder module designed to connect a wide range of readers”optic pens, badge readers, handheld CCD and laser scanners”via robust serial interfaces for dependable data capture in industrial and logistics environments.

Manufacturer: DATA LOGIC
Type: Decoder with serial interface module
Family: DATAPLUS 9000
MRN: DPS9000-14D

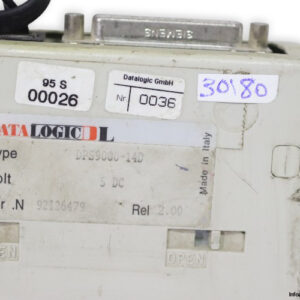

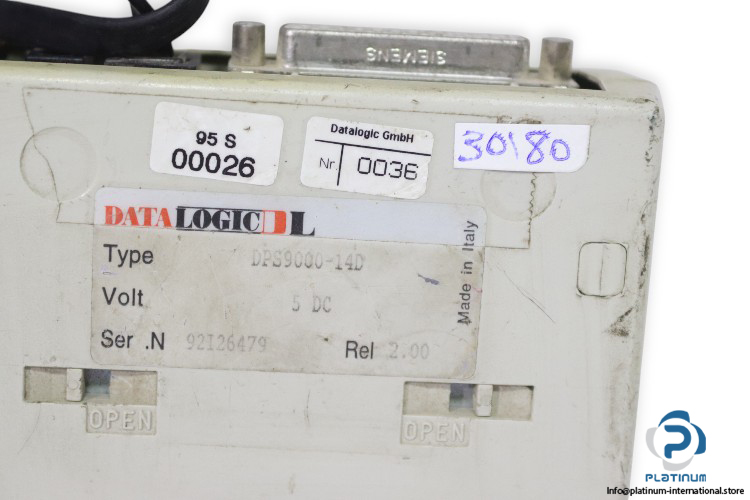

MANUFACTURER NO; 0036 / 00026
SN: 92126479

Technical Information

  • Power Supply: +5 Vdc
  • Power Consumption: 100 mA (without readers)
  • Supported Readers: Optic Pens P10, P51; Badge readers F30, DLS2000; Hand held œCCD readers: DL65/DL80, DLC60XX-M, DLC7070-M; Hand held laser scanners: DL910, DL910LR, DLL501X-M, DLL601X-M; Readers with pen emulation output; Magnetic readers (standard track 1/2/3 ISO 3554 75 bpi)
  • Interfaces: Primary EIA RS232 / EIA RS422 / EIA RS485; Auxiliary TTL “ EIA RS232
  • Baud Rate: 110 to 19,200 bauds
  • Transmission Protocol: Hardware (CTS/DTR); Software (XON/XOFF)
  • Indicators: LED and beeper with variable tone and volume
  • Display: 2 lines by 16 characters LCD (DPS9000-14D)
Weight 0,42 kg
Condition

Used
Manufacturer

DATA LOGIC
Shelf No.

250803
Type of Product

Decoder with serial interface module
MNR

DPS9000-14D
