Manufacturer: DATALOGIC DATASENSOR
Type: Photoelectric Tubular Sensor
Model: S50-PA-5-C01-PP
Part No.: 952001060

Optic: LASER, Radial optic
Through Beam: 0…20 m
Fixed Focus: 100 mm
Background Suppression: 50…100 mm
Through Beam with Fiber Optic: 0…100 mm
Diffuse Proximity with Fiber Optic: 0…30 mm
Contrast Sensor: 10 ±2 mm
Luminescence Sensor: 0…20 mm
Operating Voltage: 10…30 VDC
Max. Output Current: 100 mA
Switching Frequency: 1 kHz
Output Function: Normally Open / Normally Closed
Light Emission: Red Laser 650 nm
Response Time: 0.5 ms
Electrical Design: PNP

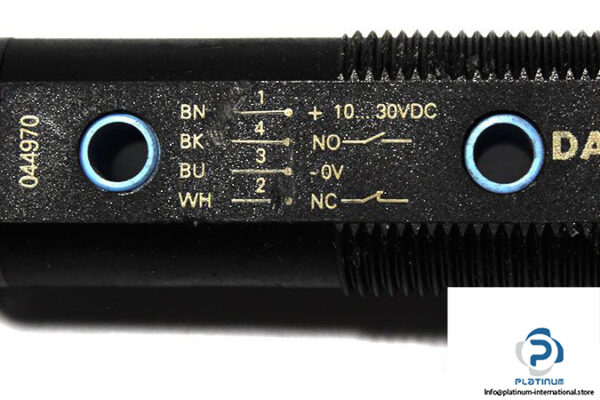

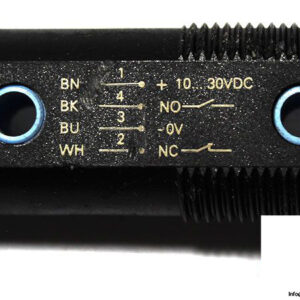

Connector Type: M12 Connector, 4-pin
Operating Temperature: –25 … 55°C
Material: PBT, Nickel Plated Brass
Mounting: M18
Length: 82 mm
