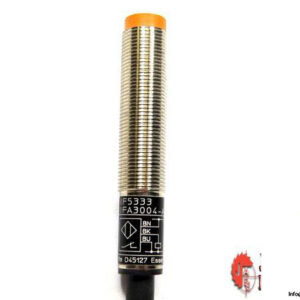

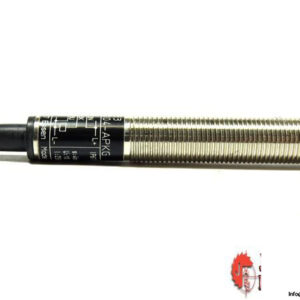

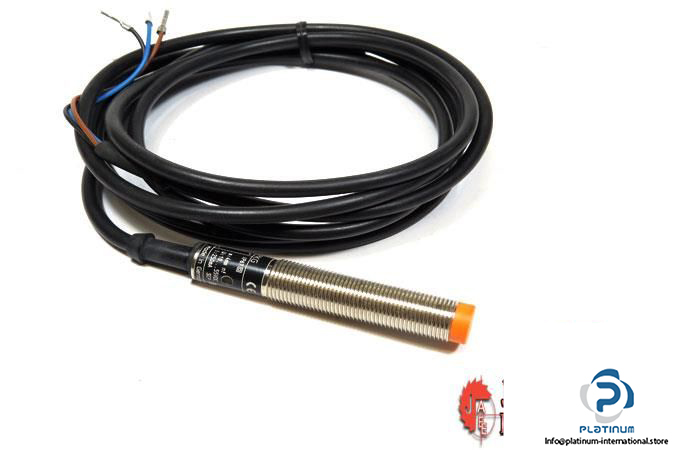

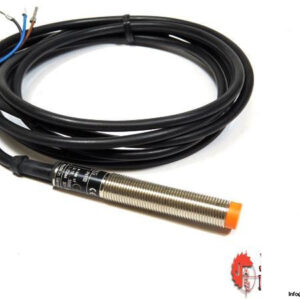

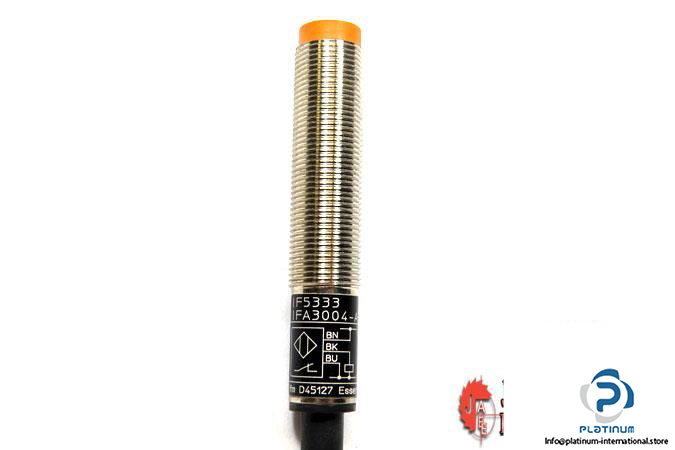

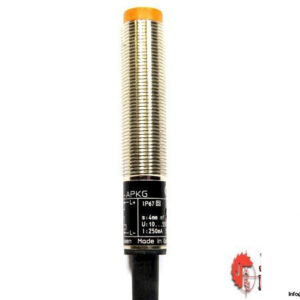

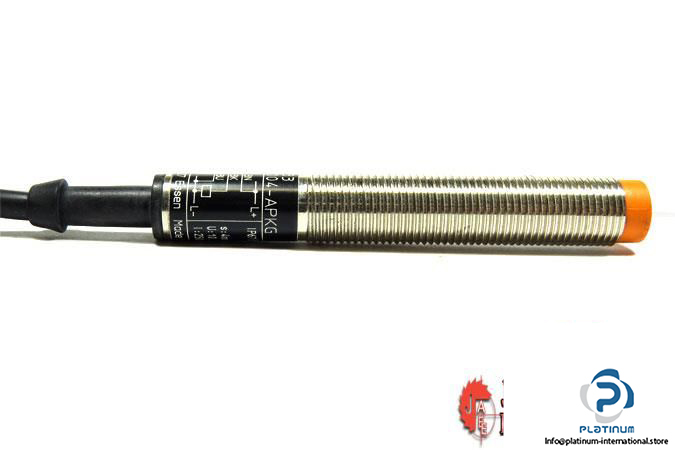

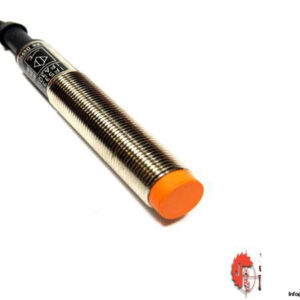

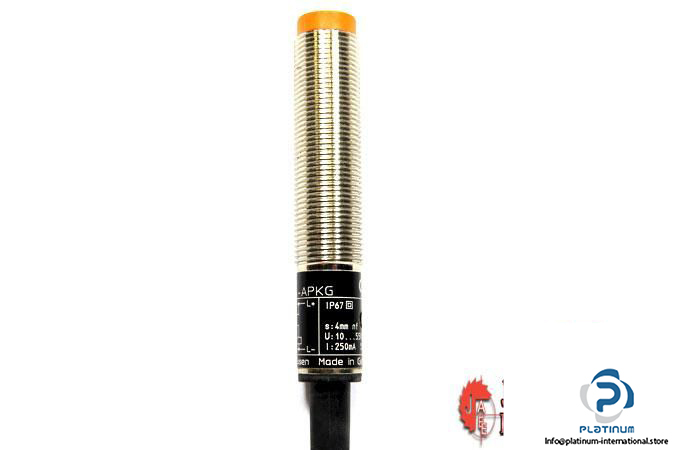

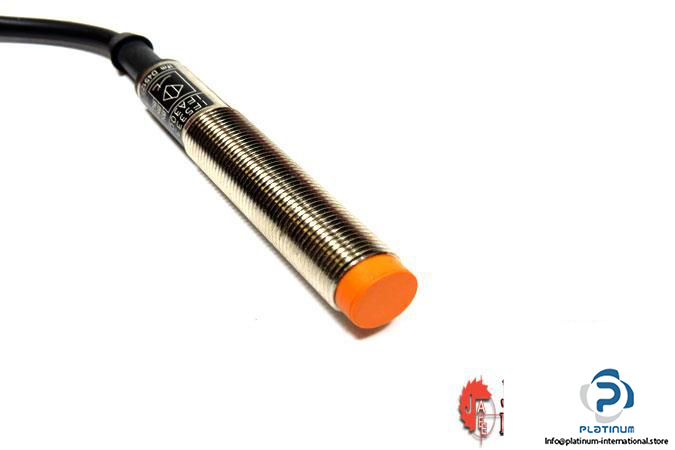

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IF5333

MRN: IFA3004-APKG

Sensing range: 4 mm

Real sensing range: 4 ± 10 % mm

Operating distance: 0 … 3.25 mm

Operating voltage: 10…36 V DC

Current consumption: 15 mA

Output function: PNP

Output current: 250 mA

Switching frequency DC: 400 HZ

Output voltage drop max.: 2.5 V

Connection: Cable: 2 m, PVC; 3 x 0.34 mm²

Mounting: non-flush mountable

Ambient operating temperature: -25 … 80°C

Enclosure rating: IP67

Protection class: II

Housing: Threaded type

Diameter, housing length: 12 , 71 mm

Material: Brass white bronze coated

Weight: 101.5 g

Condition: New
