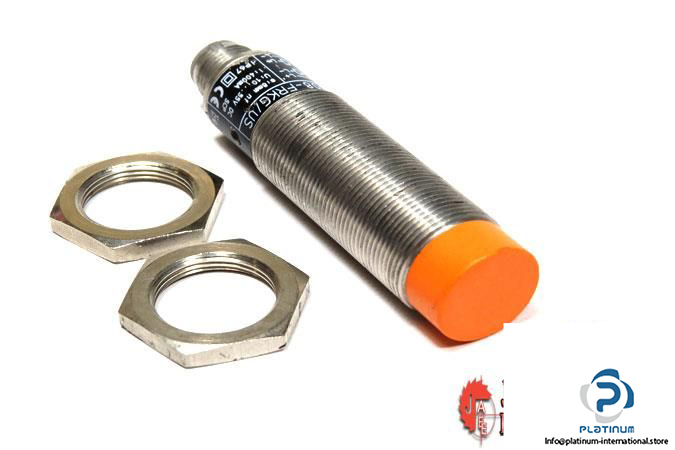

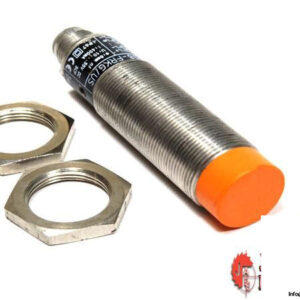

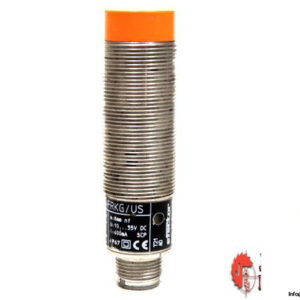

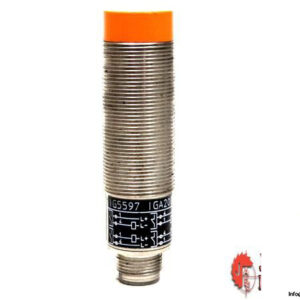

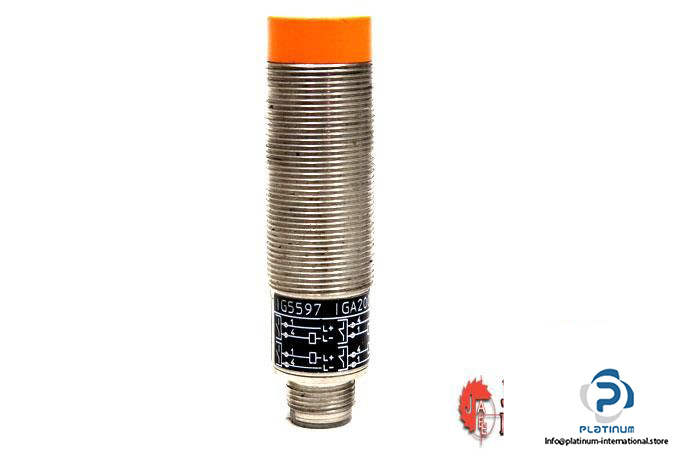

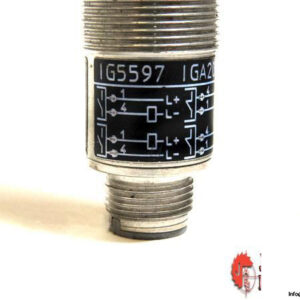

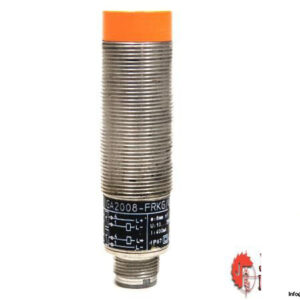

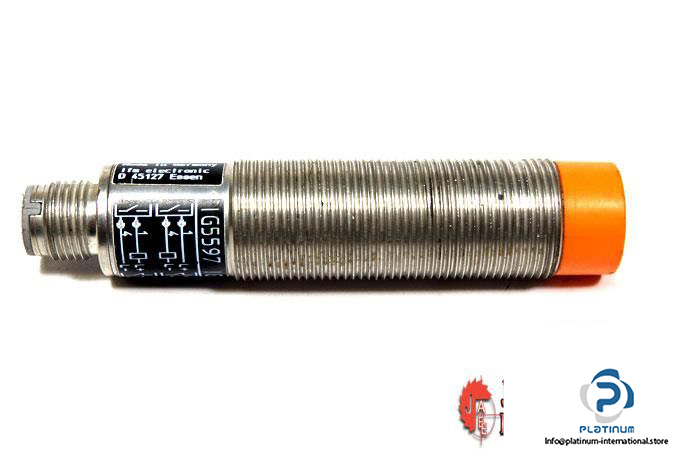

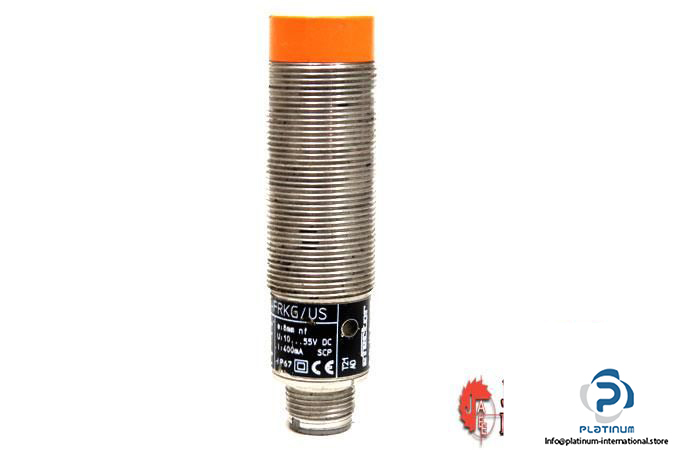

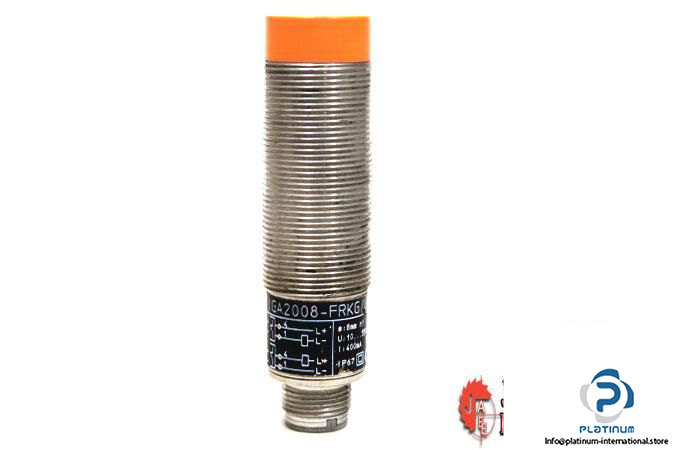

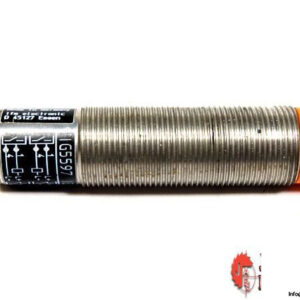

Manufacturer: IFM

Type: INDUCTIVE SENSOR

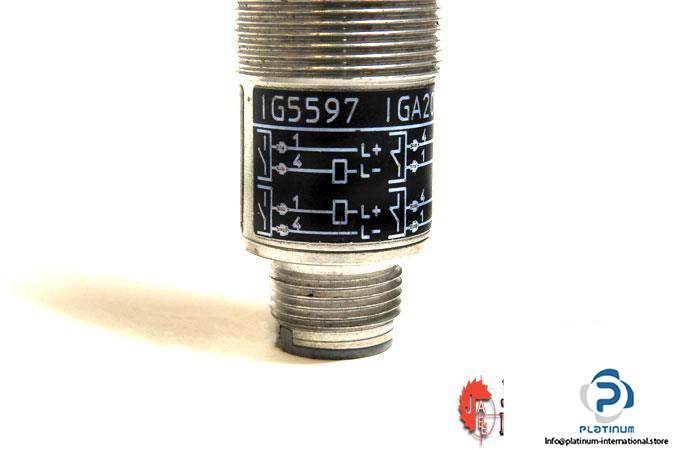

Part No.: IG5597

MRN: IGA2008-FRKG/US

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 4.6 V DC

Switching Output Current: 400 mA DC

Load Current Min.: 4 mA

Switching Frequency: 300 Hz DC

Electrical Design: PNP/NPN

Output: Normally Open And Normally Closed (Selectable)

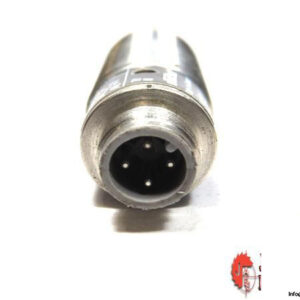

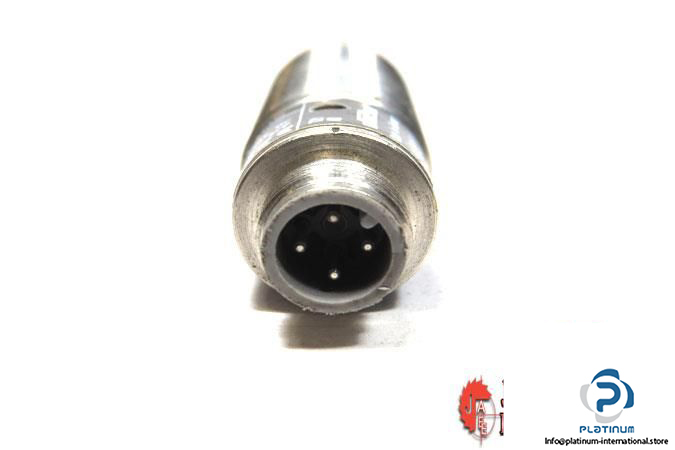

Connector: M12 Connector

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 18, 76 mm

Material: Brass White Bronze Coated; Sensing Face: PC

Mounting: Non-Flush Mountable

Weight: 60.8 g
