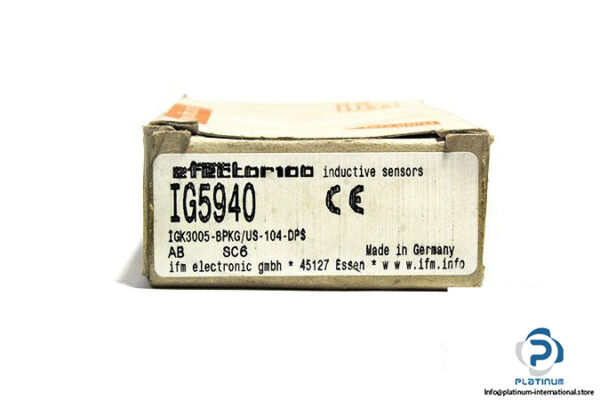

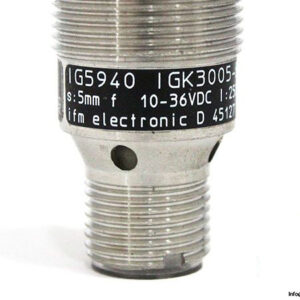

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IG5940

MRN:  IGK3005-BPKG/US

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 30 V DC

Switching Output Current: 200 mA DC

Electrical Design: PNP

Output Function: Normally Open

Switching Frequency DC: 500 Hz

Connection: M12 Connector; Gold Plated

Protection Class: II

Enclosure Rating: IP67

Operating Ambient Temperature: -25 … 80°C

Housing: Threaded Type

Diameter, Housing Length: 18, 60 mm

Material: Brass White Bronze Coated; Sensing Face: PBT Orange

Mounting: Flush Mountable

Weight: 0.05 kg

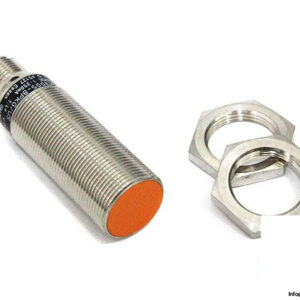

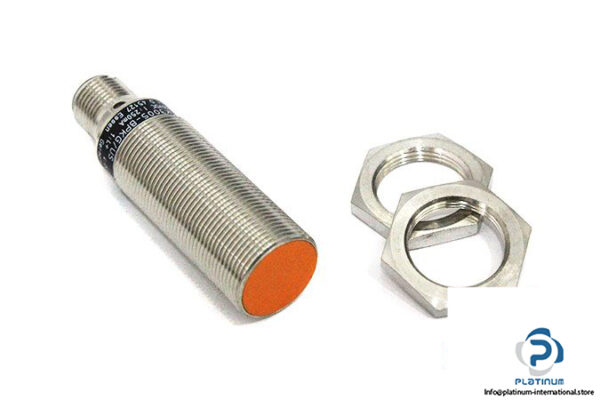

Supplied Accessories: 2 Lock Nuts
