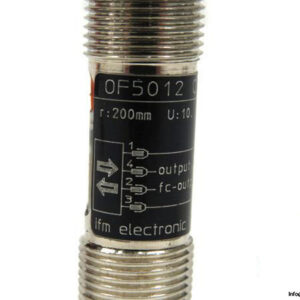

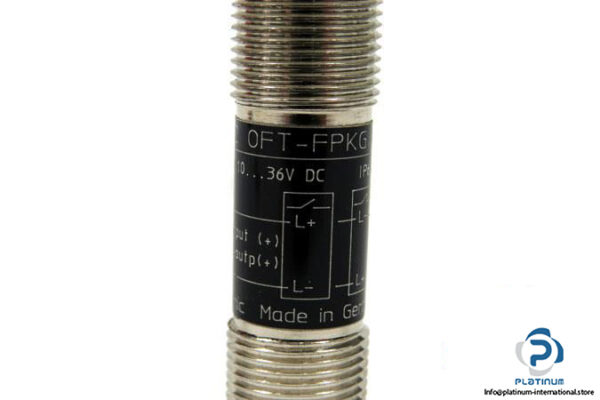

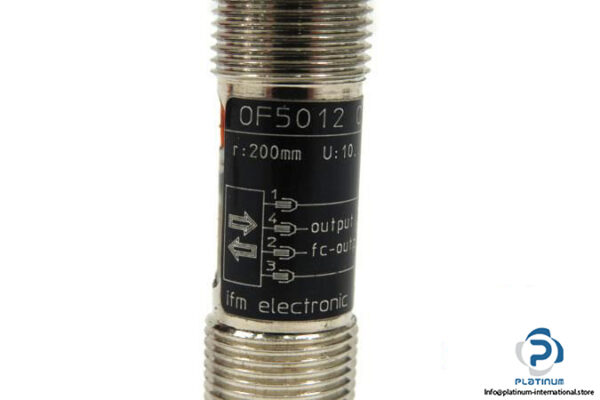

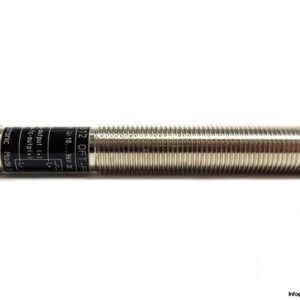

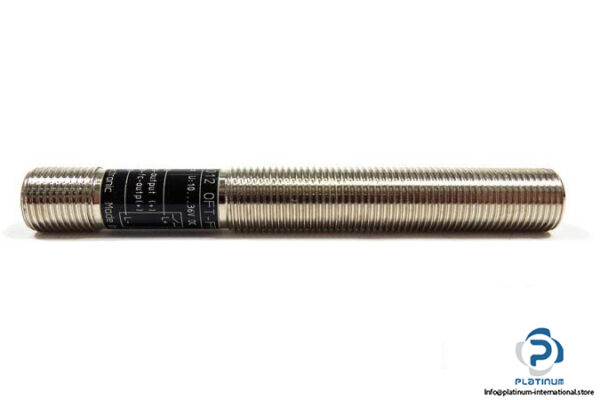

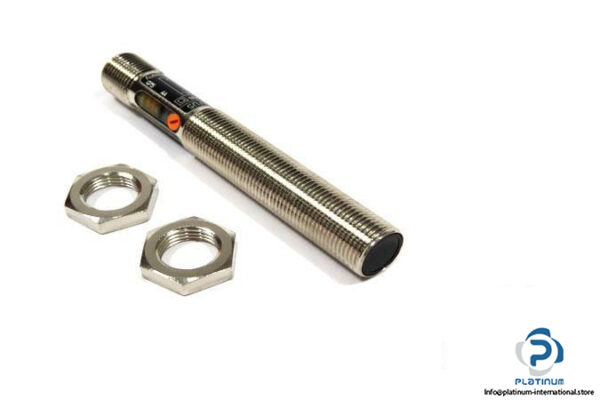

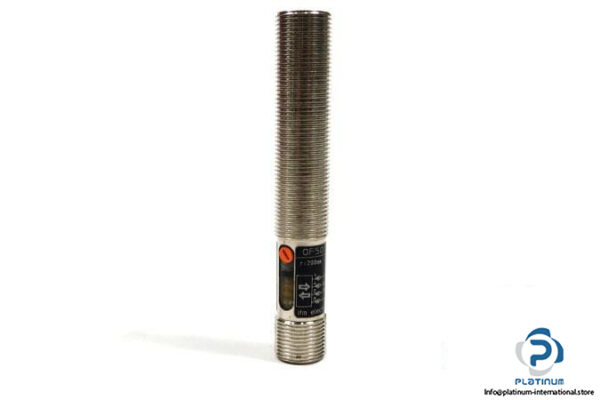

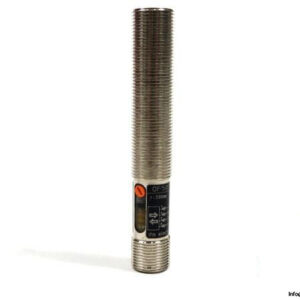

Manufacturer: ifm

Type: DIFFUSE REFLECTION SENSOR

Part No.: 0F5012

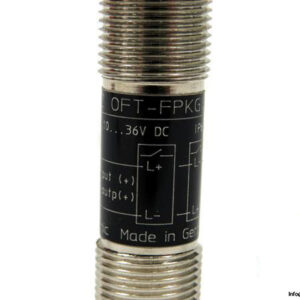

MRN: OFT-FPKG/US

Sensing Range: 200 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 200 mA DC

Switching Frequency: 320 Hz

Electrical Design: PNP

Output Function: Light on/Dark on Mode

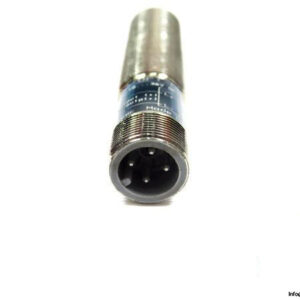

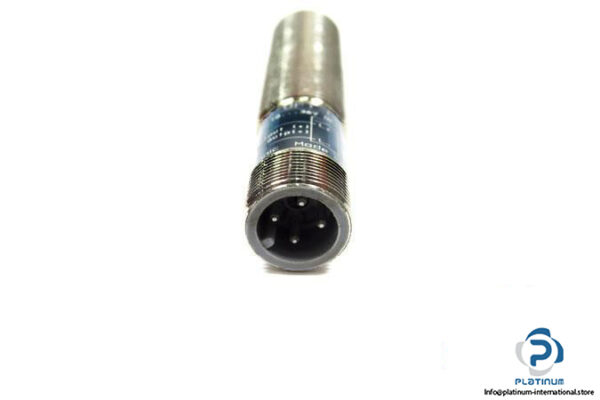

Connector Type: M12 Connector, 4 pin

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 60°C

Diameter, Housing Length: 12 , 74 mm

Material: Brass Nickel-Plated

Lens Material: PMMA

Supplied Accessories: 2 Lock Nuts

Weight: 46.8 g
