Manufacturer: ROSEMOUNT
Type: Vibrating Fork Level Switch
Model: 2120

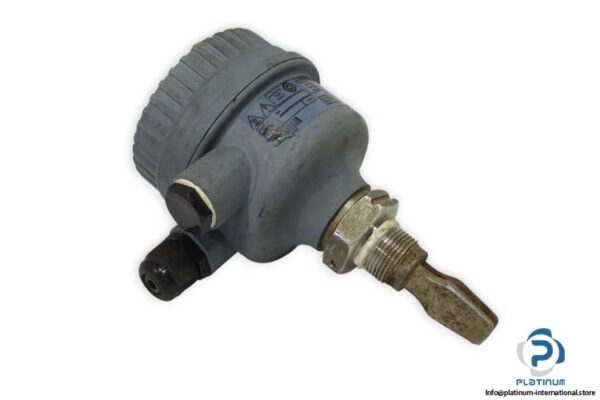

The ROSEMOUNT 2120 vibrating fork level switch is a robust, compact, and reliable solution for detecting liquid levels across a wide range of industrial processes. Designed with advanced tuning fork technology, this device operates effectively even in harsh environments and with varying fluid types. It supports user-selectable switching modes and operates efficiently with both low and high-viscosity liquids. Ideal for applications involving challenging temperature ranges and aggressive media.
Technical Information:
- Rated Voltage: 8V DC

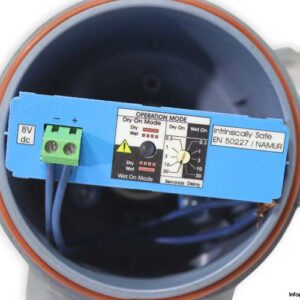

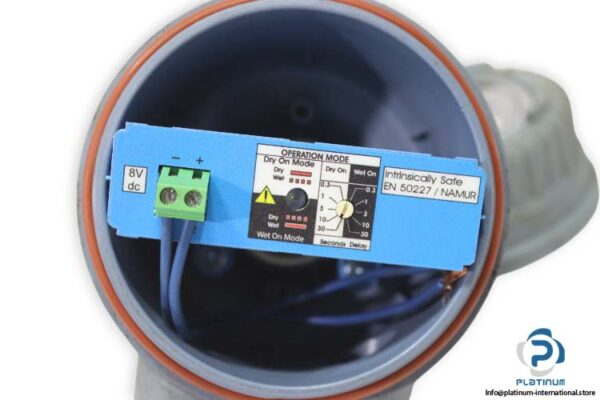

- Switching Mode: User selectable (Dry=on or Wet=on)
- Liquid Density Requirement: Minimum 37.5 lb/ft³ (600 kg/m³)
- Liquid Viscosity Range: 0.2 to 10000 cP
- Ambient Temperature: -40 to 150 °C
