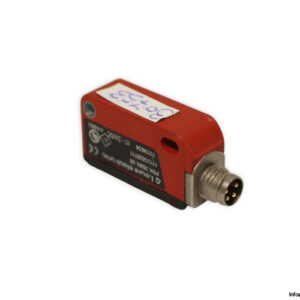

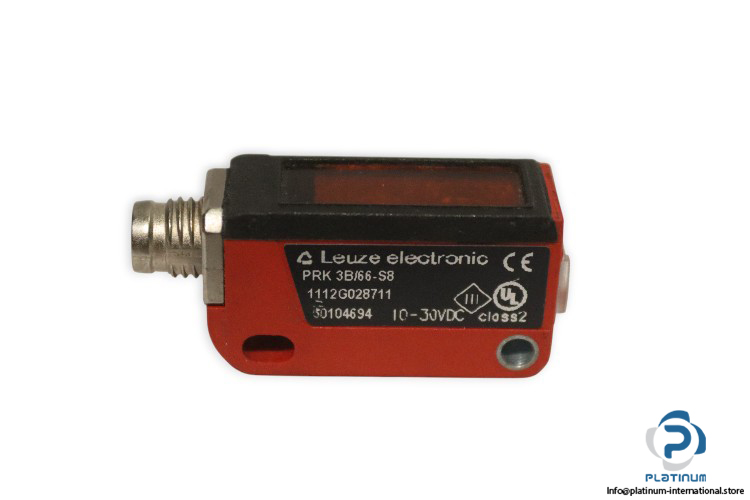

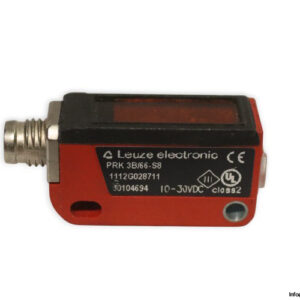

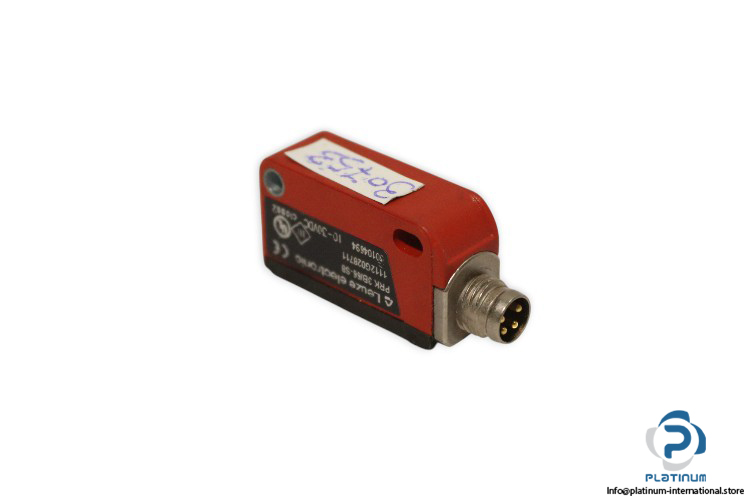

LEUZE PRK3B/66-S8 Retro-Reflective Photoelectric Sensor

The LEUZE PRK3B/66-S8 is a high-performance retro-reflective photoelectric sensor from the 3B series, designed for reliable detection with versatile switching options. Engineered with a robust plastic housing and advanced optics, it ensures dependable operation in industrial automation environments.

Manufacturer: LEUZE
Type: Retro-reflective Photoelectric Sensor
Model: PRK3B/66-S8
Part No.: 50104694
Ref No.: 1112G028711

Technical Information

• Series: 3B
• Operating Principle: Reflection principle
• Operating Range: 0.02 … 5 m (guaranteed), up to 6 m (typical)
• Beam Path: Divergent
• Light Source: LED, Red (620 nm, Pulsed)
• Light Spot Geometry: Rectangular
• LED Group: 2
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 … 30 V DC
• Current Consumption (max.): 14 mA
• Residual Ripple: 0 … 15 % from UB
• Open-circuit Current: 0 … 14 mA
• Digital Switching Outputs: 2 pcs, Transistor Push-pull
• Switching Principle: Light switching (PNP)/dark switching (NPN); Dark switching (PNP)/light switching (NPN)
• Switching Frequency: 1,000 Hz
• Response Time: 0.5 ms
• Readiness Delay: 300 ms
• Connections: 1 pc, Connector M8, Male, 4-pin, Metal
• Function: Signal OUT
• Dimensions (W x H x L): 11 x 32 x 17 mm
• Housing Material: Plastic (PC-ABS)
• Lens Cover: Plastic / PMMA
• Housing Color: Red, RAL 3000
• Fastening Type: Through-hole mounting
• Ambient Temperature (operation): -30 … 55 °C
