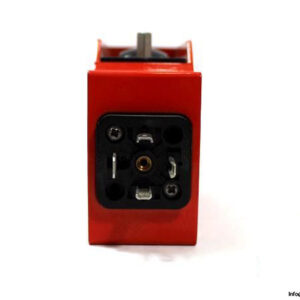

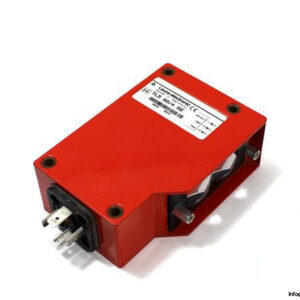

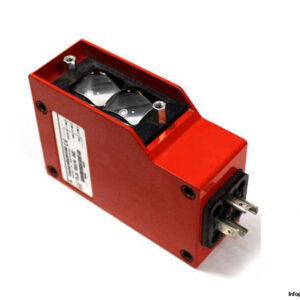

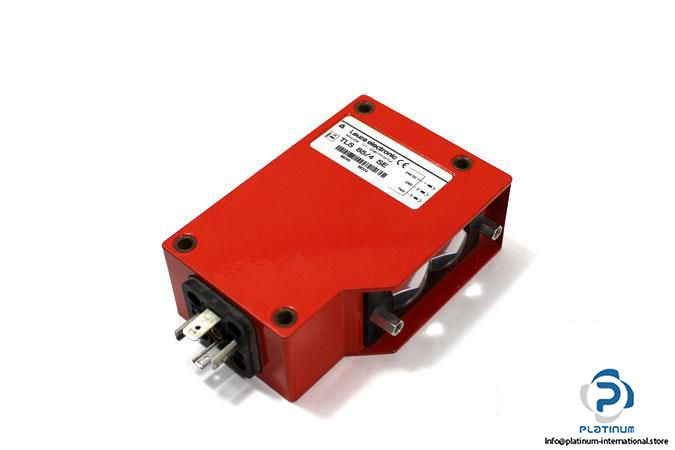

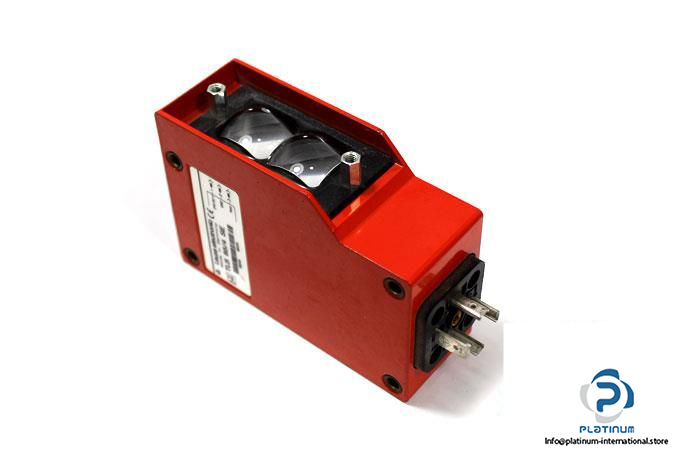

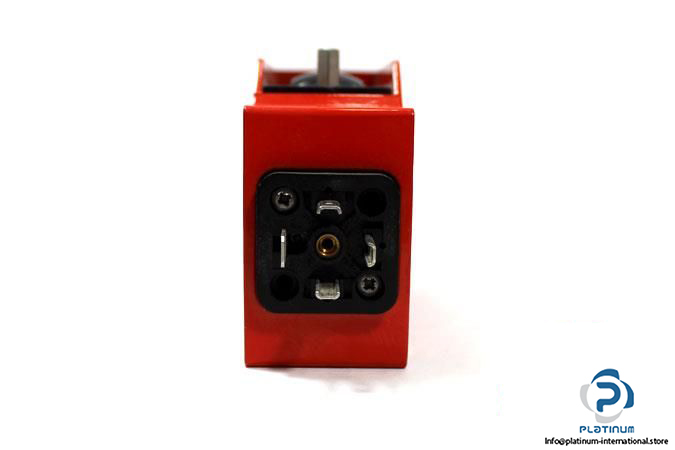

Manufacturer: LEUZE

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – TRANSMITTER

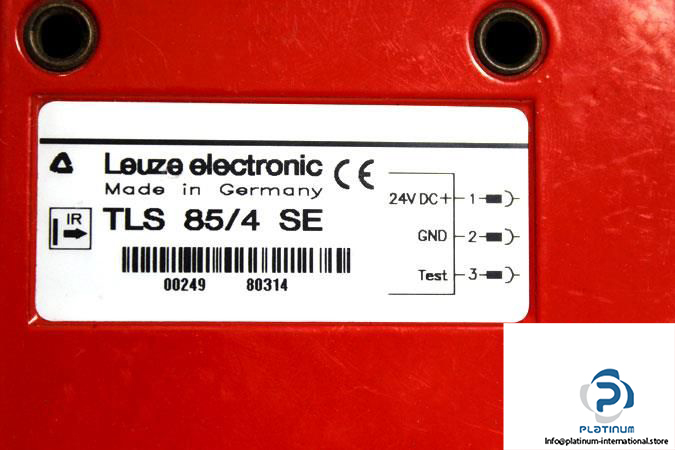

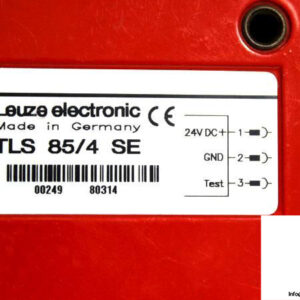

Model : TLS 85/4 SE

Operating range limit : 0 … 65 m

Light source : LED (modulated light)

Wavelength : 880nm

Sensor switching frequency : 100Hz

Sensor response time : 2.5ms

Delay before start-up : ≤ 200ms

Operating voltage : 10 … 30VDC

Bias current : ≤ 30mA

Output current : max. 100mA

Ambient temperature : -20 … +60°C

Protection class : IP65

Dimensions: 69 x 36 x 100 mm

Housing: Rectangular

Housing material: Metal

Weight: 0.3 Kg
