Manufacturer:  OMRON

Type: PHOTOELECTRIC SENSOR

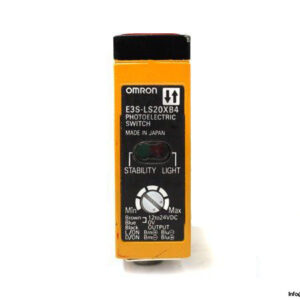

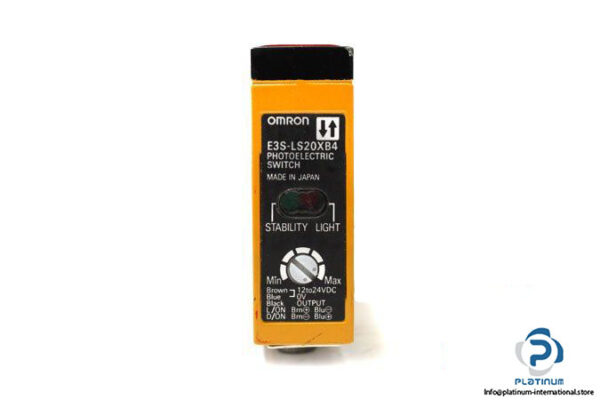

Model No.: E3S-LS20XB4

Application: Sensing of objects utilizing their difference in luster, objects traveling in contiguous succession, Sensing of small holes, narrow openings, or evenness.

Sensing range: 50 … 250 mm

Operating Voltage: 12 … 24 V DC

Response time: 1 ms

Current consumption: 40 mA

Light source: Infrared LED

Electrical design: PNP

Switching output: Normally open/Normally closed

Adjustment: Potentiometer

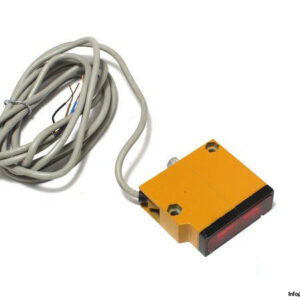

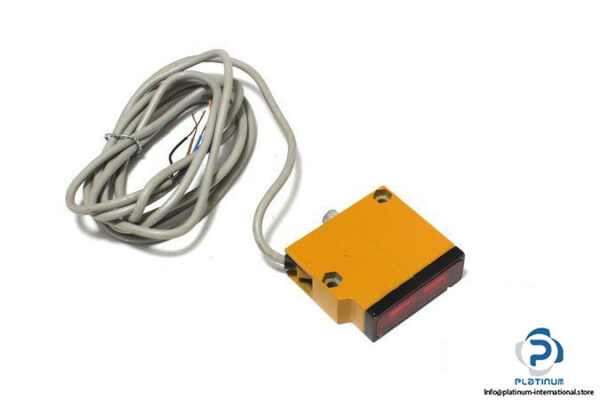

Connector type: Cable, 2 m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 50°C

Dimensions: 51 x 17 x 55 mm

Housing material: Metal

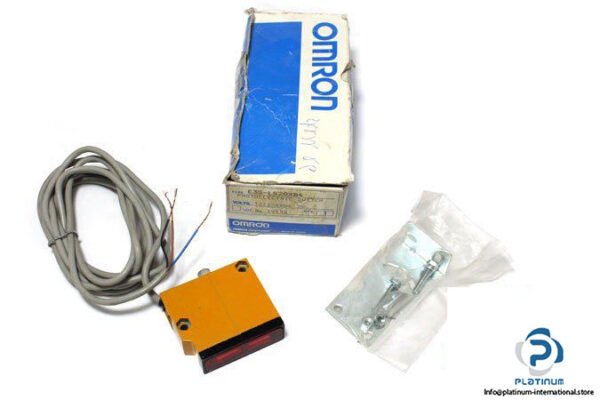

Supplied accessories: mounting brackets
