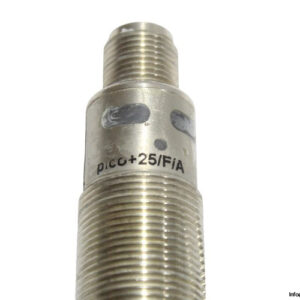

Microsonic pico+25/F/A Ultrasonic Sensor
The Microsonic pico+25/F/A is a compact M18 cylindrical ultrasonic sensor designed for precise distance measurement and object detection. With versatile operating modes and IO-Link compatibility, it is ideal for a wide range of industrial automation applications.
- Manufacturer: Microsonic
- Type: Ultrasonic Sensor
- Model: pico+25/F/A
Technical Information:
- Operating Voltage (UB): 10“30 V DC
- No-load Current Consumption: 40 mA
- Type of Connection: 5-pin M12 initiator plug
- Input 1: com input, synchronisation input, teach-in input
- Output 1: Switching output (Push-Pull, UB-3 V, -UB+3 V, Imax = 100 mA)
- Class of Protection: IP67
- Operating Temperature: -25°C to 70°C
- Measuring Range: 30 “ 350 mm
- Design: Cylindrical M18
- Operating Modes: IO-Link, proximity switch/reflective mode, reflective barrier, window mode
