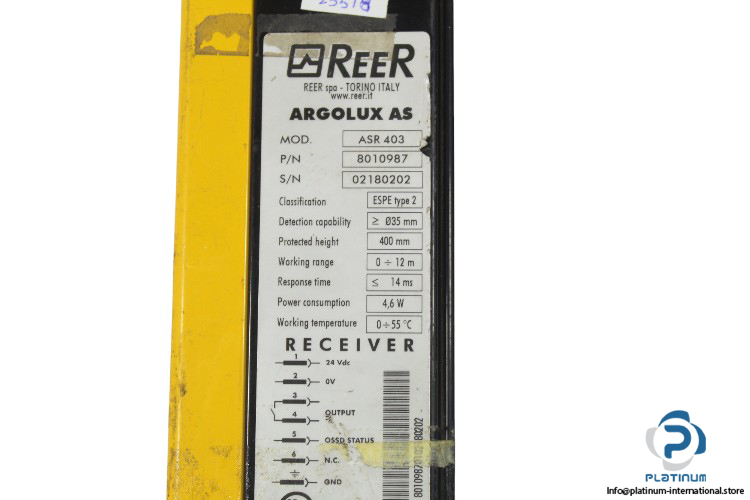

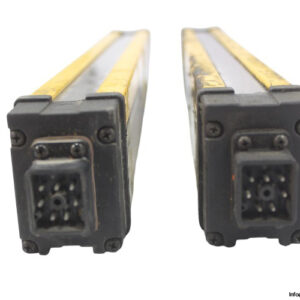

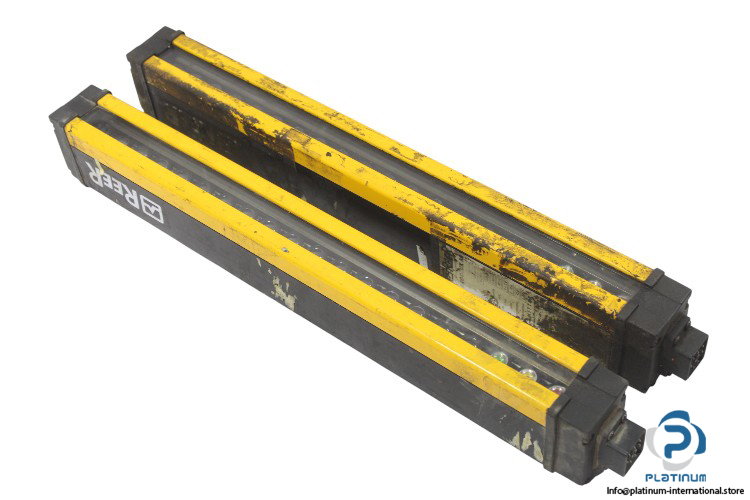

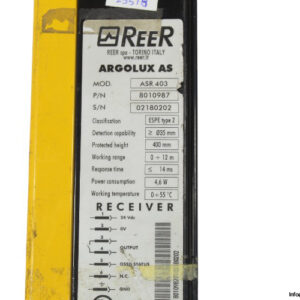

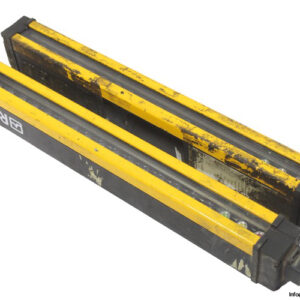

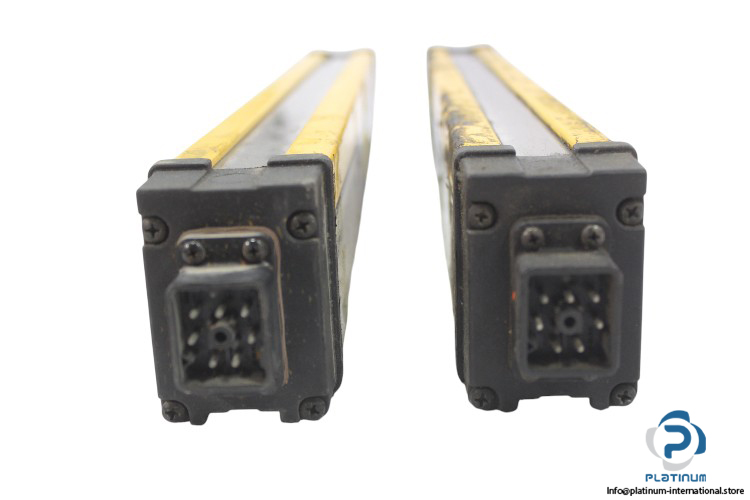

REER ASR403 Receiver with ASE403 Emitter

The REER ASR403 Receiver, combined with the ASE403 Emitter, forms a complete optical safety system designed for reliable object detection and protection in automation and industrial safety applications. With a working range of up to 12 meters and a protected height of 400 mm, this set delivers dependable performance in demanding environments.

• Manufacturer: REER
• Type: Receiver
• Model: ASR403
• Part No.: 8010987

Technical Information:

• Rated Voltage: 24 VDC
• Detection Capability: 35 mm
• Protected Height: 400 mm
• Working Range: 0 / 12 m
• Response Time: 14 ms
• Power Consumption: 4.6 W
• Working Temperature: 0 / 55 °C

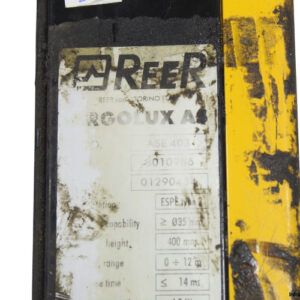

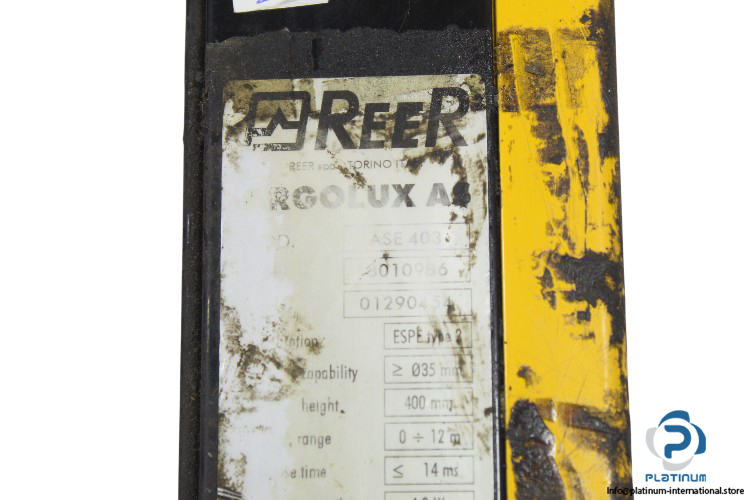

Attachment:

• Manufacturer: REER
• Type: Emitter
• Model: ASE403
• Part No.: 8010986
• Rated Voltage: 24 VDC
• Detection Capability: 35 mm
• Protected Height: 400 mm
• Working Range: 0 / 12 m
• Response Time: 14 ms
• Power Consumption: 4.2 W
• Working Temperature: 0 / 55 °C
