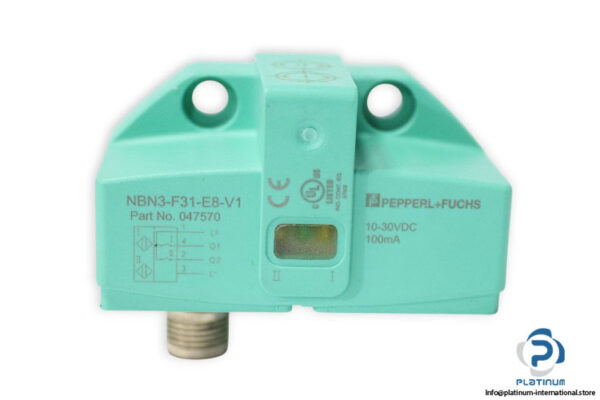

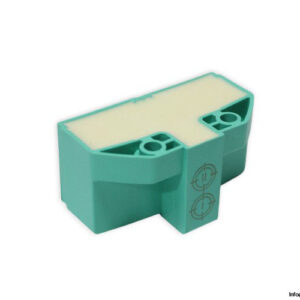

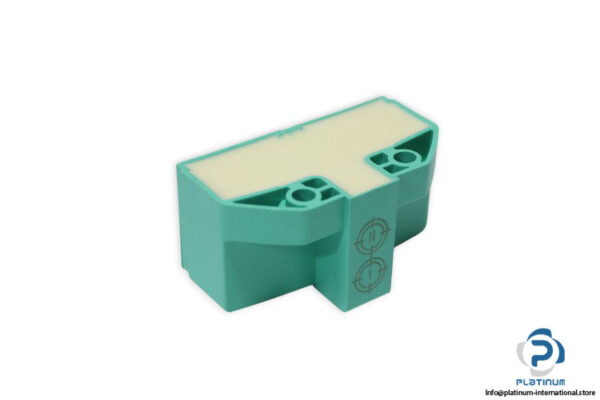

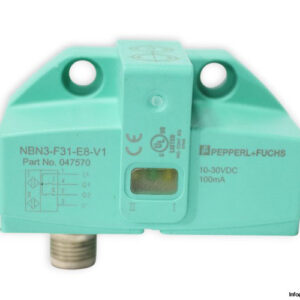

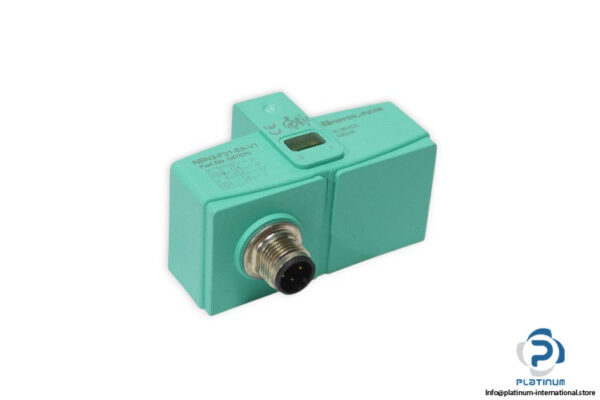

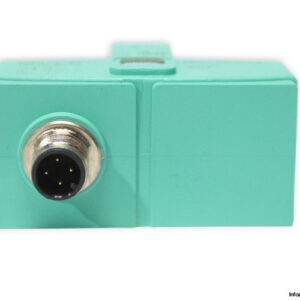

PEPPERL+FUCHS NBN3-F31-E8-V1 INDUCTIVE SENSOR
The Pepperl+Fuchs NBN3-F31-E8-V1 is a high-performance inductive sensor designed for precise detection of metallic objects in demanding industrial environments. With robust construction, high switching accuracy, and reliable operation, it ensures dependable performance in automation systems.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBN3-F31-E8-V1

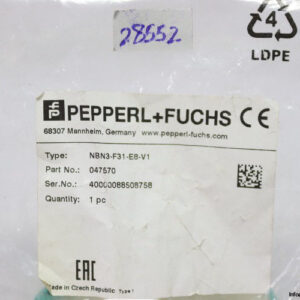

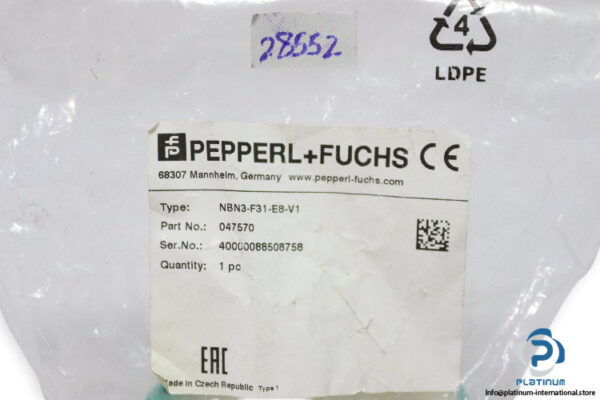

Part No.: 047570
Serial No.: 40000088508758
Technical Information
- Switching Function: 2 x Normally Open (NO)
- Output Type: PNP, 3-wire, DC polarity
- Rated Operating Distance (sn): 3 mm
- Assured Operating Distance (sa): 0 / 2.43 mm
- Actual Operating Distance (sr): 2.7 / 3.3 mm typ.
- Reduction Factor rAl: 0.5
- Reduction Factor rCu: 0.4
- Reduction Factor r304: 1
- Reduction Factor rSt37: 1.2
- Operating Voltage (UB): 10 / 30 V DC
- Switching Frequency (f): 0 / 500 Hz
- Standards: EN IEC 60947-5-2
- Ambient Temperature: -25 / 70 °C

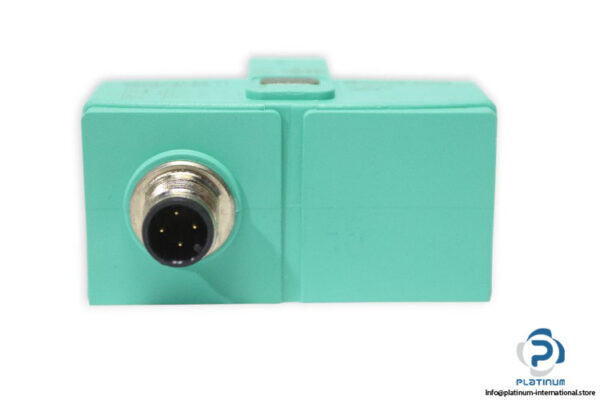

- Connection: 4-pin M12 x 1 connector (metal housing)
- Housing Material: PBT
- Sensing Face: PBT
- Degree of Protection: IP67
- Dimensions: Height 33.5 mm, Width 65 mm, Length 36 mm
