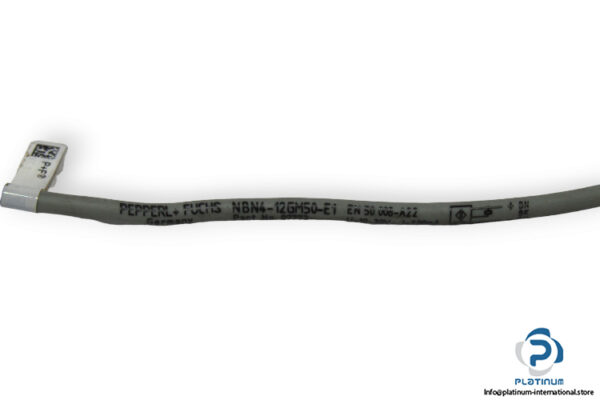

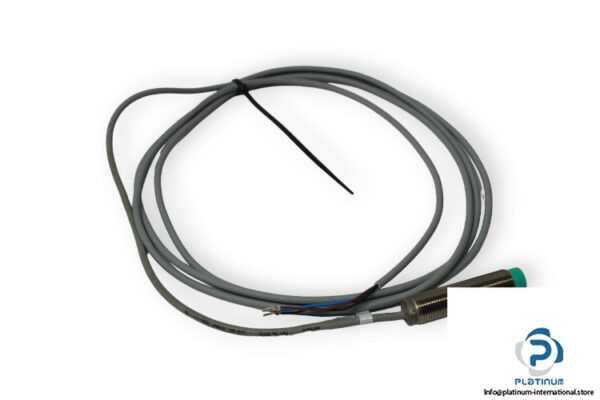

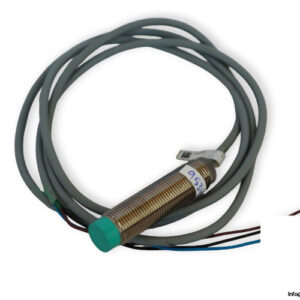

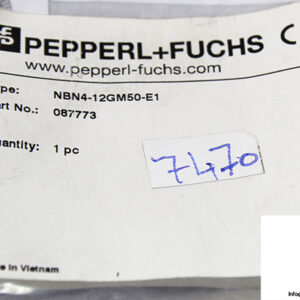

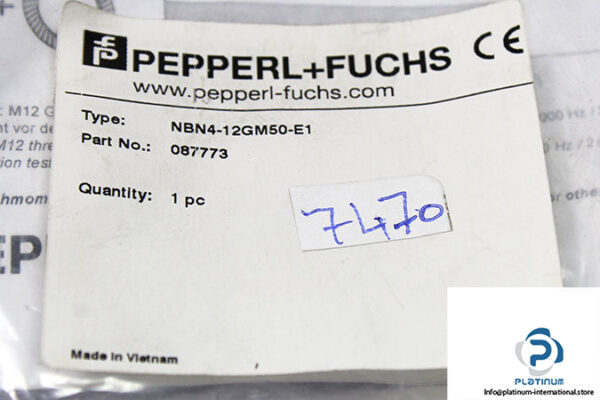

Manufacture: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBN4-12GM50-E1
Part No.: 087773
Sensing Range: 4 mm
Assured operating distance: 0 … 3.24 mm
Operating Voltage UB: 5 … 36 V
Operating current IL: 0 … 200 mA
Electrical Design: NPN
Actuating element: 12 x 12 x 1 mm
Output type: 3-wire
Switching frequency: 0 … 2650 Hz
Degree of protection: IP68
Cable Material: PVC
Connection type: cable
Operating Temperature: -40 … 85°C
