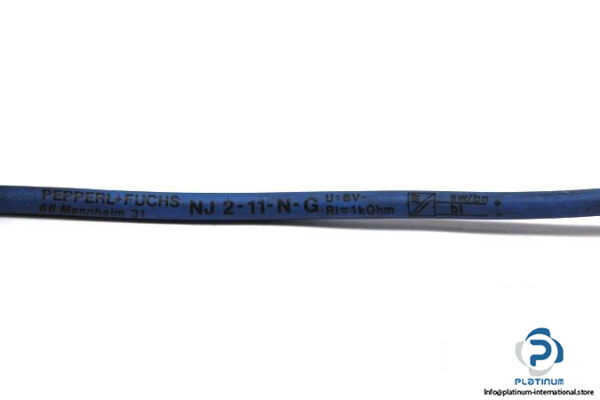

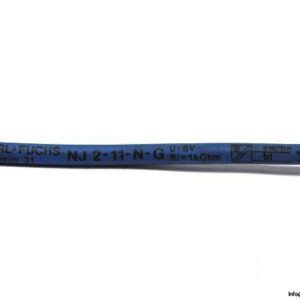

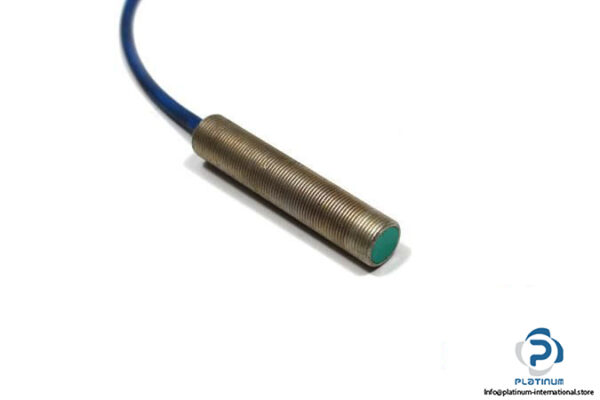

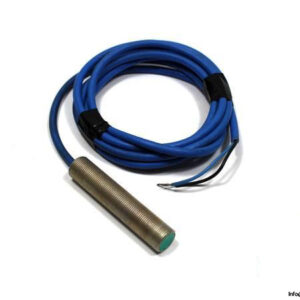

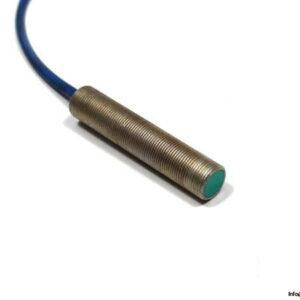

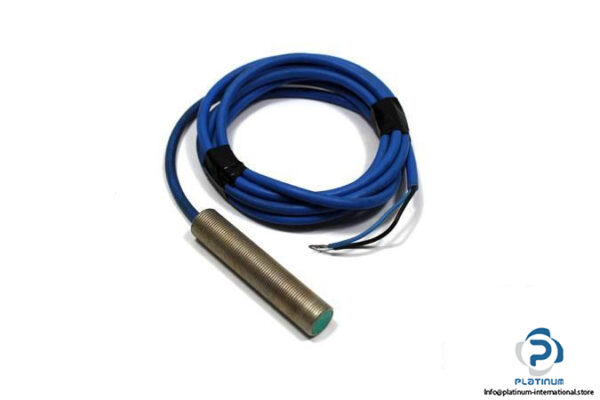

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ211NG

Part No.: 106378

Rated operating distance: 2 mm

Assured operating distance: 0 … 1.62 mm

Actual operating distance: 1.8 … 2.2 mm

Operating Voltage: 8 V DC

Current consumption (Measuring plate not detected): ≥ 3 mA

Current consumption (Measuring plate detected): ≤ 1 mA

Switching frequency: 0 … 3000 Hz

Output type: NAMUR

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -25 … 100°C

Diameter, housing length: 14, 30 mm

Housing material: Stainless steel

Sensing face material: PVDF

Mounting: Flush-mountable
