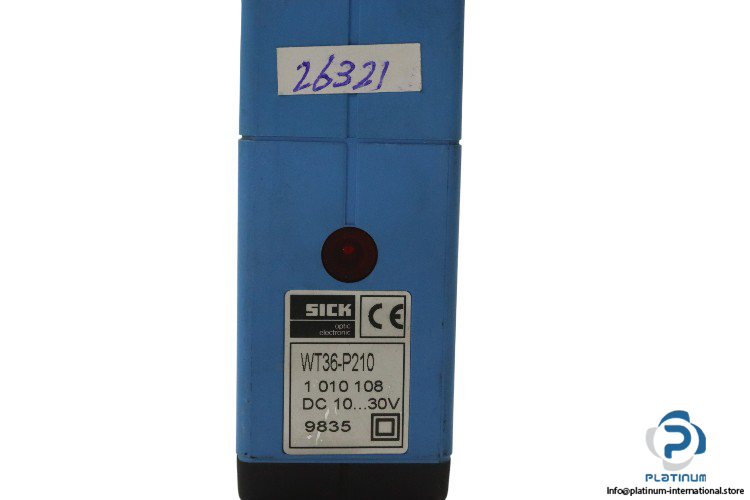

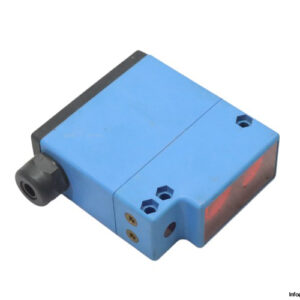

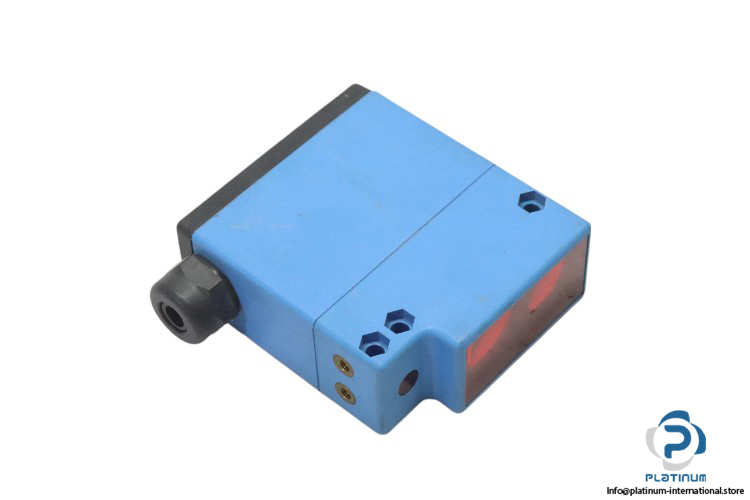

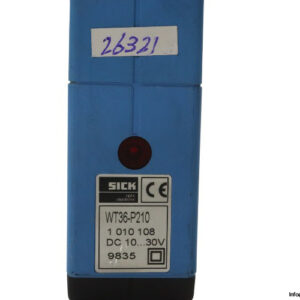

SICK WT36-P210 Photoelectric Proximity Sensor

The SICK WT36-P210 (Part No: 1 010 108) is a rugged photoelectric proximity sensor engineered for reliable object detection in industrial environments. It offers visible red light switching, IP67 protection, and wide temperature tolerance, making it suitable for harsh applications.

• Manufacturer: SICK
• Type: Photoelectric Proximity Sensor
• Model: WT36-P210
• Part No.: 1 010 108

Technical Information:

• Supply Voltage: 10… 30 V DC
• Current Consumption: 50 mA
• Switching Mode: Light/dark switching
• Type of Light: Visible red light
• Adjustment: Potentiometer
• Housing Material: Plastic, glassfibre reinforced plastic
• Optics Material: Plastic, PMMA
• Enclosure Rating: IP67
• Housing Design (Light Emission): Rectangular
• Ambient Temperature: -40 °C … +55 °C
• Dimensions (W x H x D): 36 mm x 85 mm x 100 mm
