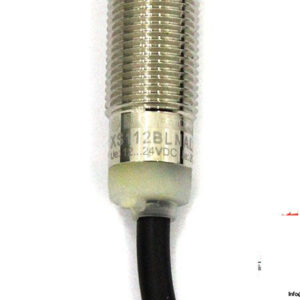

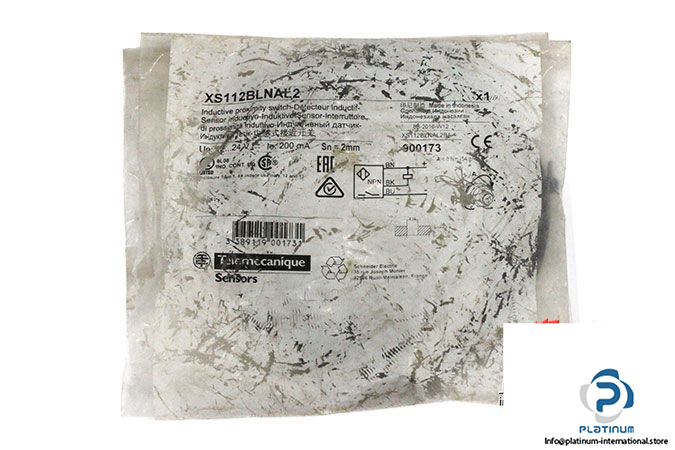

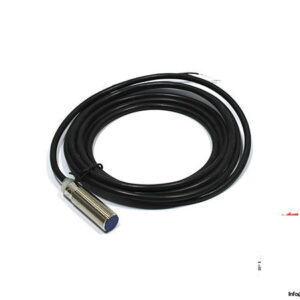

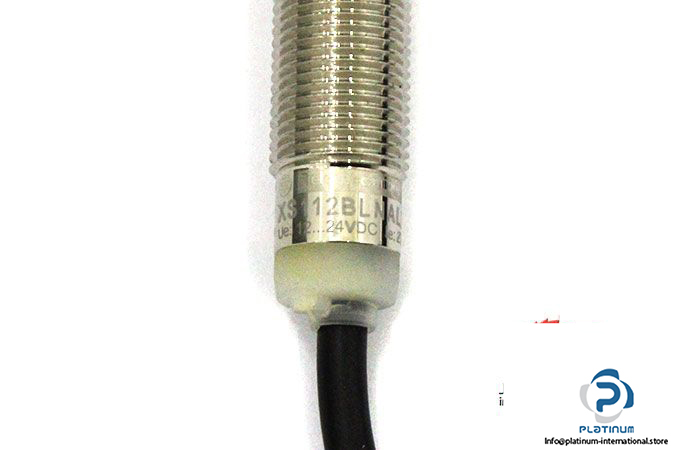

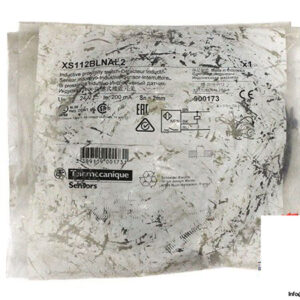

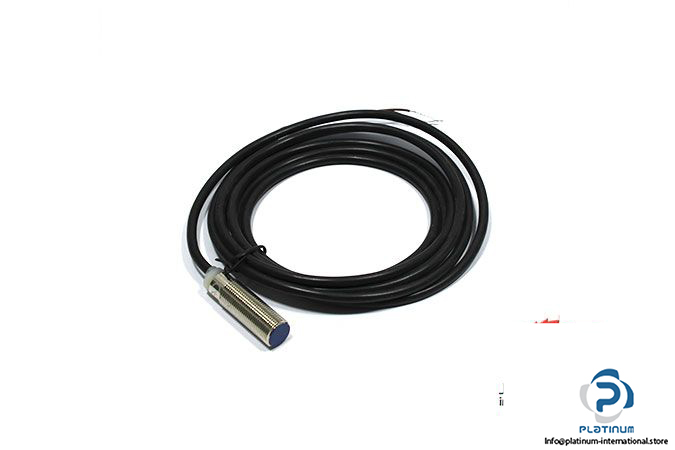

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Inductive Sensor

Series Name: General Purpose

Model: XS112BLNAL2

Sensing Range: 2 mm

Operating Voltage: 12 … 24 V DC

Operating Current: <= 200 mA
Current Consumption, No-Load: <= 10 mA
Maximum Voltage Drop: < 2 V
Switching Frequency: <= 2500 Hz
Discrete Output Type: NPN

Discrete Output Function: Normally Open

Sensor Design: Cylindrical M12

Connector Type: Cable 2 m, 3-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Diameter, Length: 12, 44 mm

Body Type: Fixed

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable

Weight: 0.07 kg
