Manufacturer: TELEMECANIQUE SCHNEIDER
Type: INDUCTIVE SENSOR
Series Name: General PURPOSE

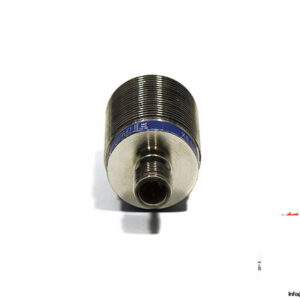

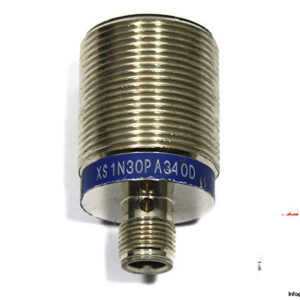

Model: XS1N30PA340D
Operating Voltage: 12 … 24 V DC
Switching Capacity: 0 … 200 mA
No-Load Supply Current: ≤ 10 mA
Maximum Voltage Drop: <= 2 V
Switching Frequency: 1000 Hz
Signal Output: PNP
Switching Output: Normally Open
Sensor Design: Cylindrical M30
Electrical Connection: Male Connector M12, 4-Pin
Diameter, Length: 30, 50 mm
Ambient Operating Temperature: -25 … 70 °C
Housing Material: Metal
Front Material: PPS
Mounting: Flush-Mountable
Weight: 0.08 kg
