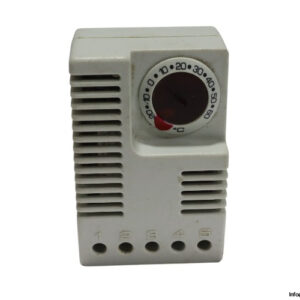

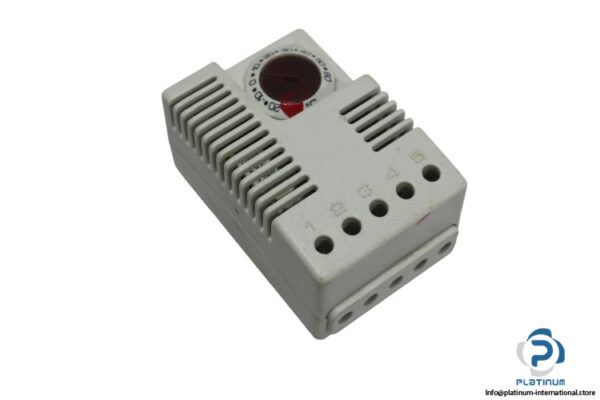

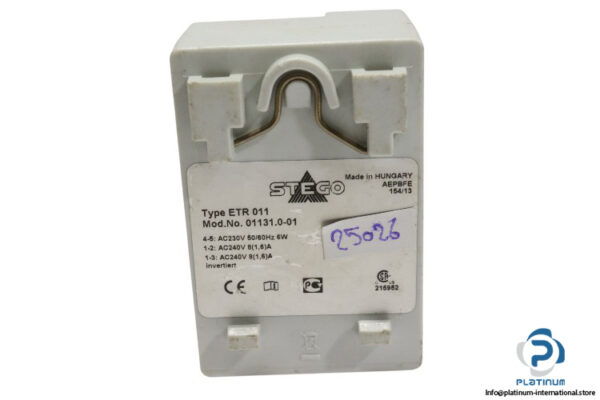

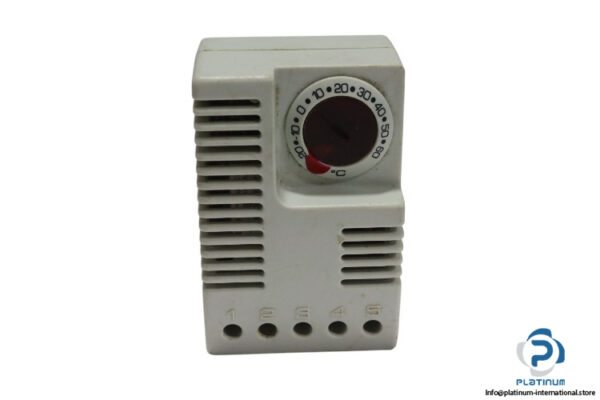

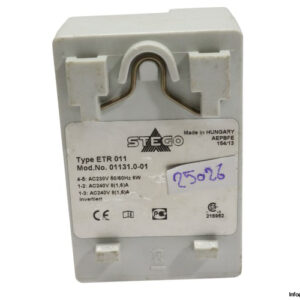

STEGO ETR 011 Electronic Thermostat

The STEGO ETR 011 electronic thermostat is designed for precise thermal regulation in control cabinets and enclosures. With a 4K switching differential, it offers reliable performance for temperature control across a broad operating range from -40 to 85°C. The unit supports various voltage levels with a maximum switching capacity of 240VAC or 24VDC, and is equipped with a 5-pole terminal connection. It features DIN rail mounting and IP20 protection.

• Manufacturer: STEGO
• Type: Electronic Thermostat
• Model: ETR 011

Technical Specifications:

• Switch Difference: 4K
• Max. Switching Capacity (Relay Output):
  • 240VAC, 8 (1.6) A
  • 120VAC, 8 (1.6) A
  • 24VDC, 4A
• Connection: 5-pole terminal, clamping torque 0.5 Nm max.
• Mounting: Clip for 35 mm DIN rail
• Protection Type: IP20
• Operating Temperature: -40 to 85°C
• Dimensions (HxWxD): 64.5 x 42 x 38 mm

Applications:

• Electrical enclosures and cabinets
• Industrial automation systems
• Thermal management for sensitive equipment
