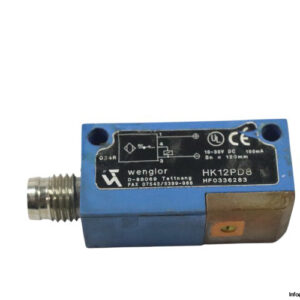

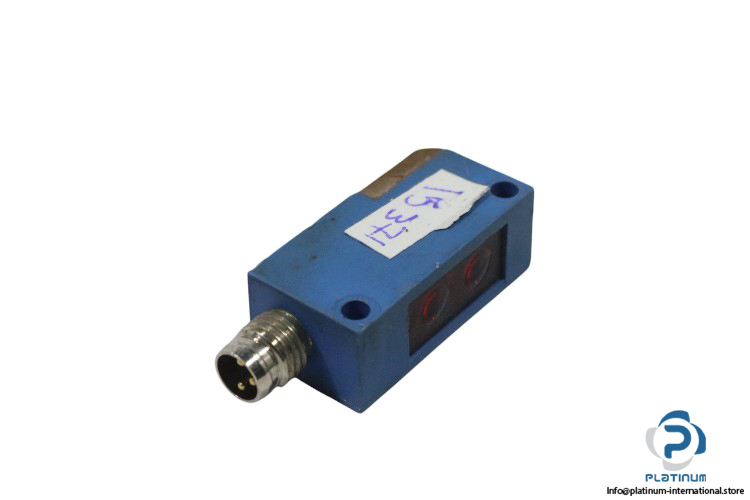

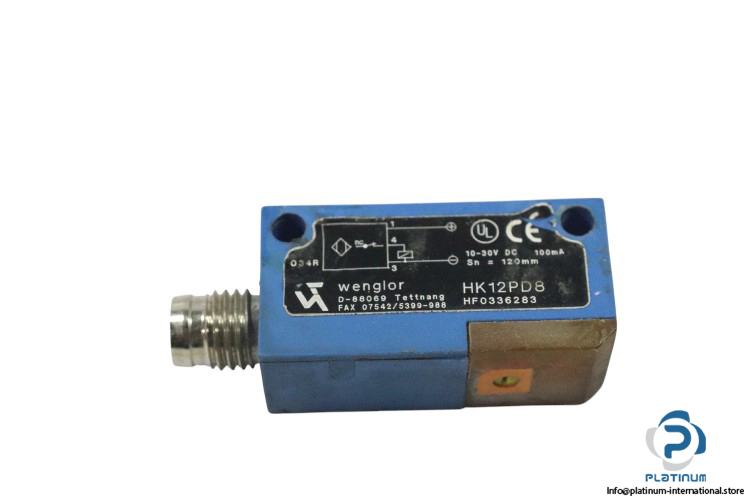

Wenglor HK12PD8 Reflex Sensor with Background Suppression

The Wenglor HK12PD8 is a high-performance reflex sensor with background suppression, engineered for accurate object detection and reliable switching in automated systems. Featuring red light technology and a compact, IP67-rated plastic housing, it provides consistent operation even in demanding industrial environments.

Manufacturer: Wenglor

Type: Reflex Sensor with Background Suppression

Model: HK12PD8

Technical Data:

• Supply Voltage: 10 / 30 V DC
• Rated Voltage: 10 / 30 V DC
• Current Consumption: 25 mA
• Switching Output Voltage Drop: 2.5 V
• PNP Switching Output / Switching Current: 100 mA
• Switching Frequency: 1,300 Hz
• Power: 6 W
• Sensing Range: 120 mm
• Setting Range: 18 / 120 mm
• Light Source: Red Light
• Connection: M8, 3-pin
• Degree of Protection: IP67
• Housing Material: Plastic
• Temperature Range: -25 / 60 °C
