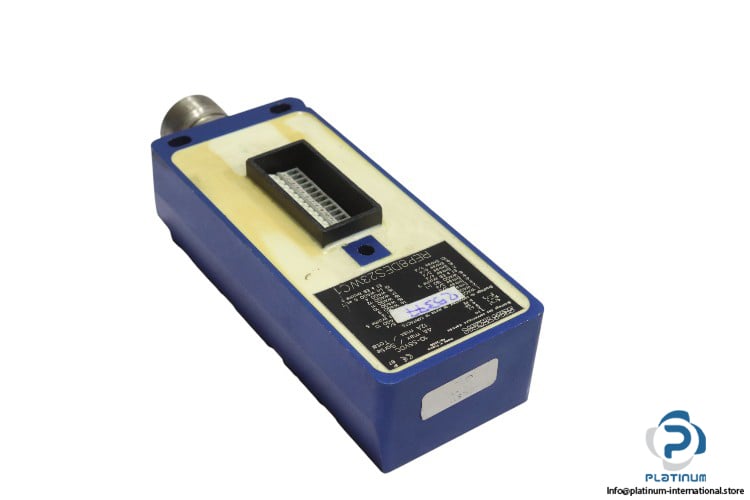

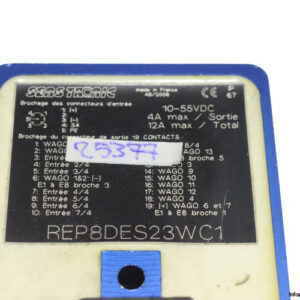

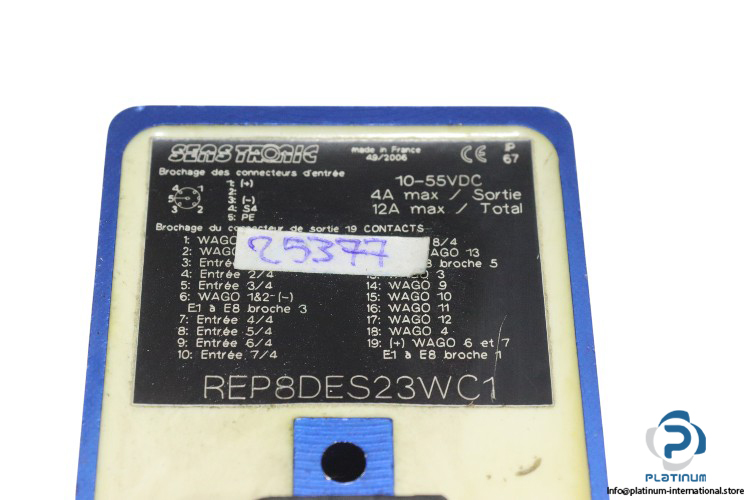

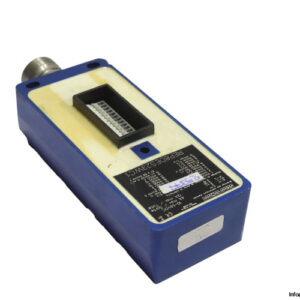

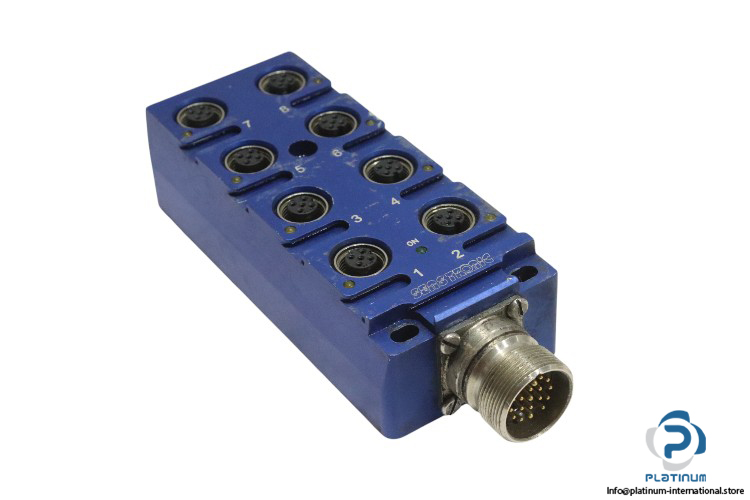

Sensitronic REP8DES23WC1 Sensor Distribution Box
The Sensitronic REP8DES23WC1 Sensor Distribution Box is designed for efficient power distribution in sensor systems. With 8 input ports and 5 pins per port, it offers robust performance with a wide voltage range of 10“55 Vdc and a current rating of 4/12 A. Built with anodized aluminum housing, this distribution box provides durability and protection with an IP67 rating for harsh environments.
Manufacturer: SENSTRONIC
Type: Sensor Distribution Box
Model: REP8DES23WC1
Technical Data:
- Gender: Female
- Number of Inputs: 8 ports
- Number of Pins: 5 pins
- Current Rating: 4 / 12 A
- Voltage Rating: 10 “ 55 Vdc
- Protection Degree: IP67
- Materials: Housing Anodized Aluminium
- Ambient Temperature Range: -25 to 70 °C
