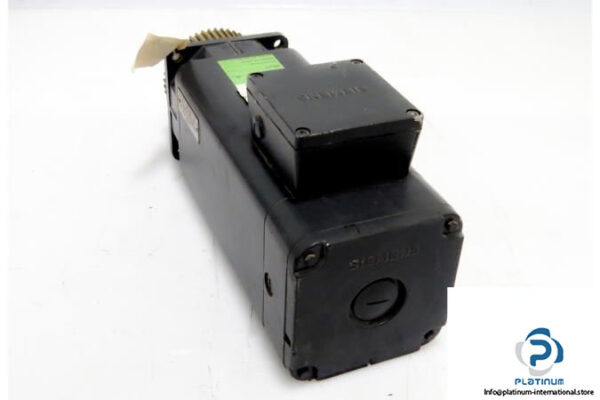

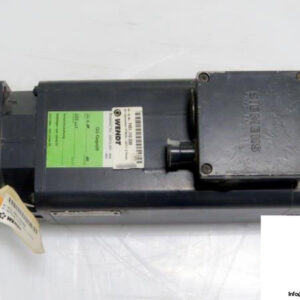

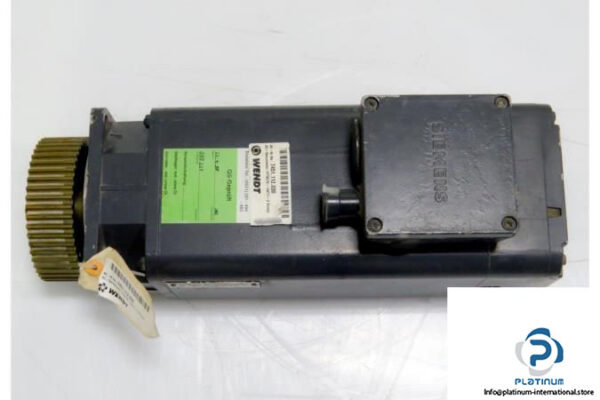

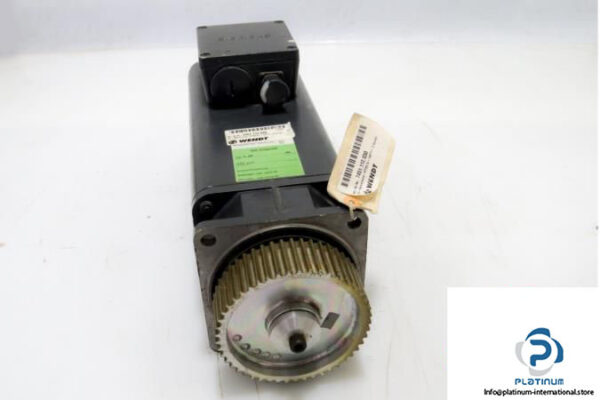

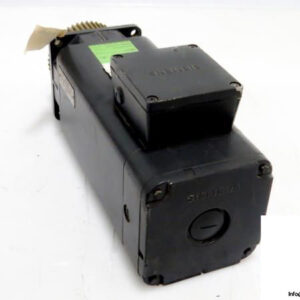

SIEMENS 1FT5076-0AF01-2-Z AC SERVO MOTOR
The Siemens 1FT5076-0AF01-2-Z is a high-performance AC servo motor engineered for precision motion control in demanding industrial applications. Built for continuous duty operation, it offers exceptional torque consistency, speed stability, and robust protection against harsh conditions.
Manufacturer: Siemens
Type: AC Servo Motor
Model: 1FT5076-0AF01-2-Z
Part No.: 8H60 4371 04 013

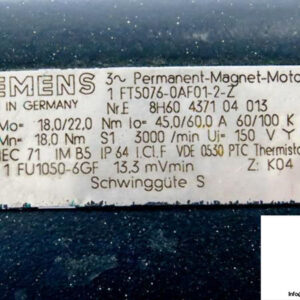

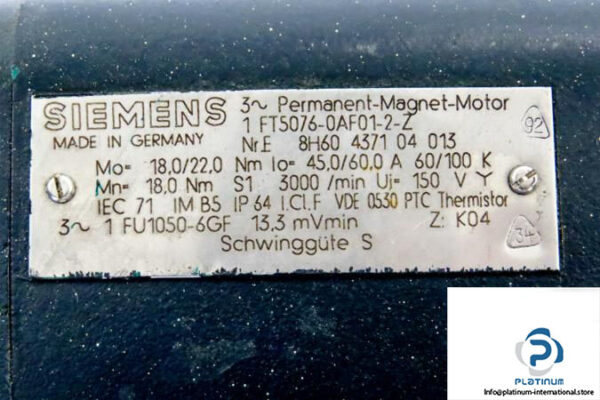

Technical Information
- Rated Voltage (Star): 150 V
- Stall Current: 45.0 / 60.0 A
- Rated Torque: 18 Nm
- Stall Torque: 18 / 22 Nm
- Rated Speed: 3000 RPM
- Duty: S1
- Insulation Class: F
- Degree of Protection: IP64
- Tacho Generator: 1FU1050-6GF
- Voltage Constant: 13.3 mV/min
