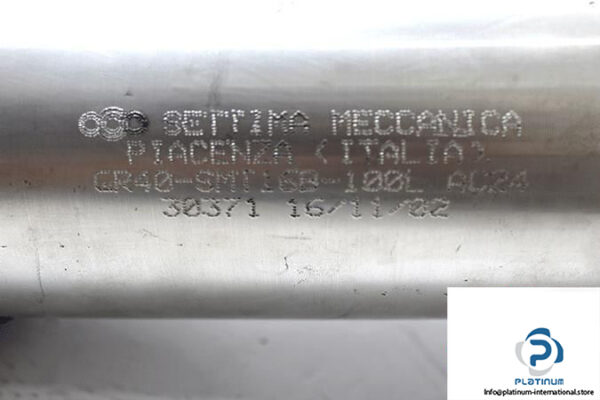

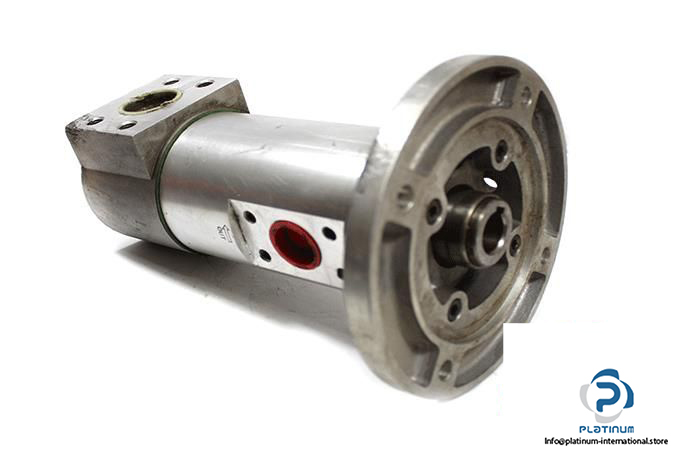

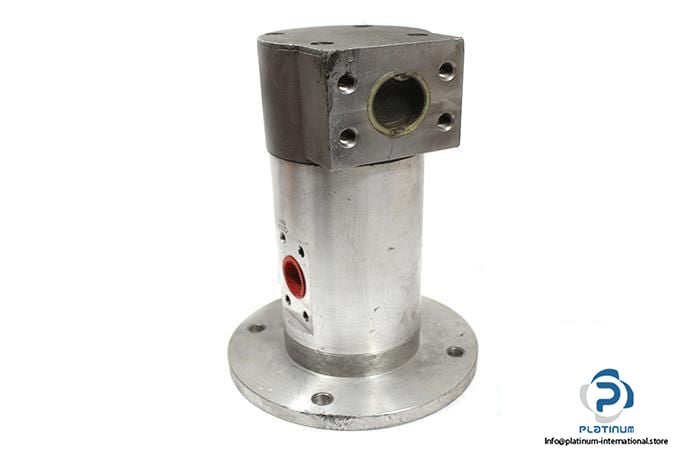

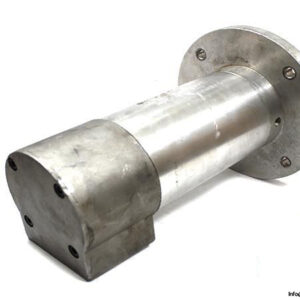

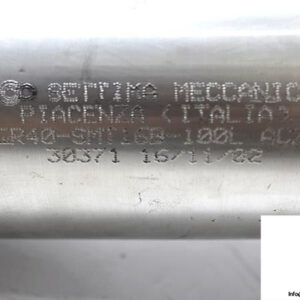

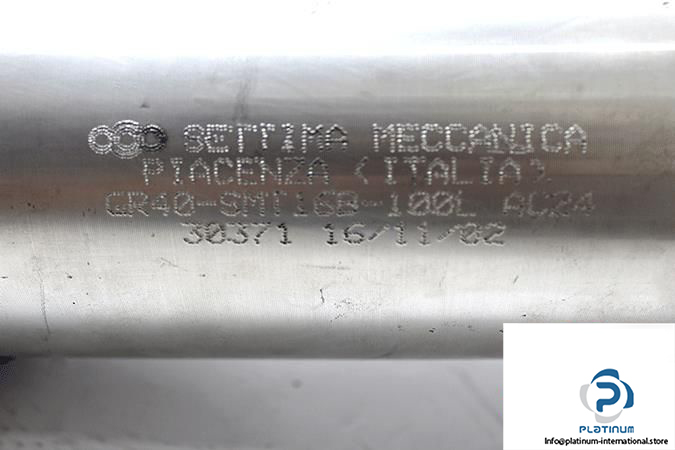

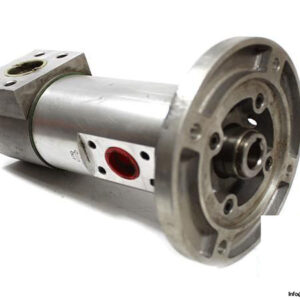

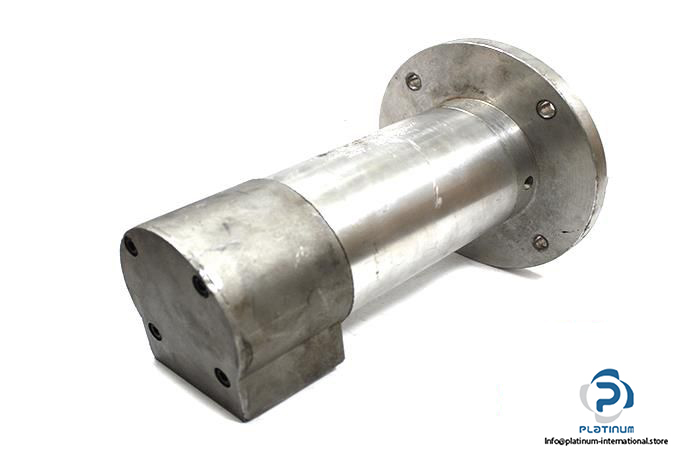

SETTIMA MECCANICA GR40-SMT16B-100L AC24 Screw Pump

The SETTIMA MECCANICA GR40-SMT16B-100L AC24 is a high-performance medium-pressure screw pump engineered for efficient, quiet, and continuous operation. Designed for industrial hydraulic systems, it offers excellent flow consistency across a wide viscosity and temperature range, ensuring reliable fluid transfer in demanding applications.

Manufacturer: SETTIMA MECCANICA
Type: Screw Pump (Medium Pressure)
Model: GR40-SMT16B-100L AC24

Technical Information

Operating Pressure Range (P): 10 / 30 bar
Continuous Discharge Flow (Q): 98.4 / 90.5 l/min
Number of Revolutions (n): 2750 min»¹
Viscosity Range (ν): 6 / 400 mm²/s
Hydraulic Fluid Temperature (T): -20 / +180 °C
Direction of Rotation: Clockwise
