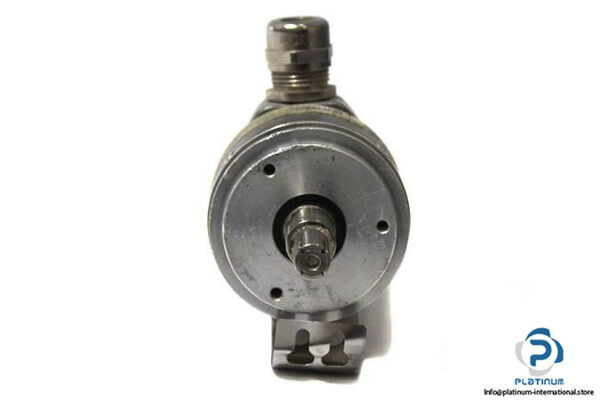

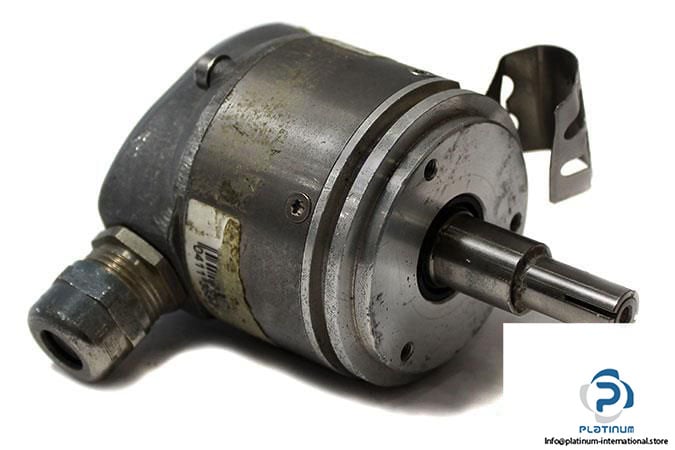

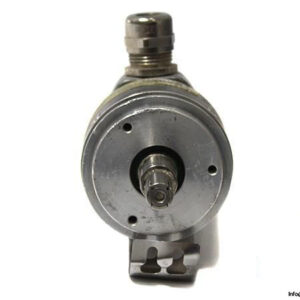

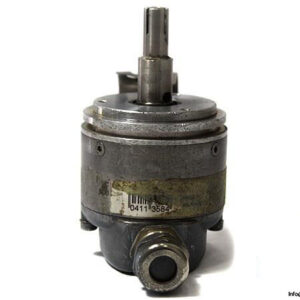

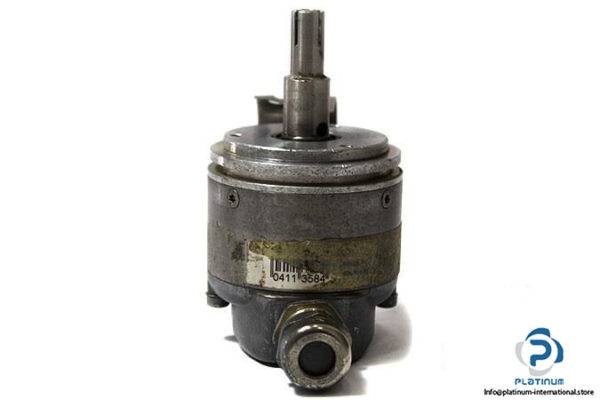

SEW AS7W/AV7W ABSOLUTE ENCODER

The SEW AS7W/AV7W Absolute Encoder is a high-precision, explosion-proof rotary encoder designed for demanding industrial environments. With RS485 multi-turn output and binary scanning, it ensures accurate position feedback and reliable data transmission even in harsh conditions.

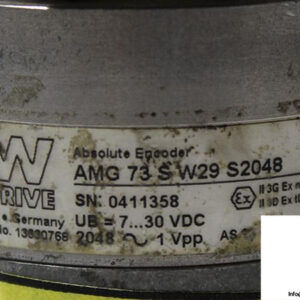

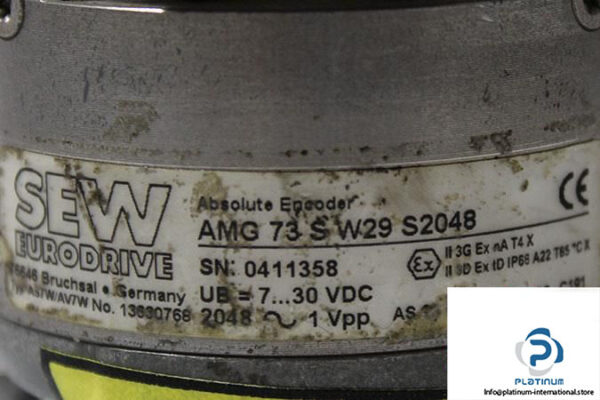

Manufacturer: SEW
Type: Absolute Encoder
Model: AS7W/AV7W
Order Code: AMG73SW29S2048
Part No.: 13630768
Serial No.: 0411358

Technical Information

• Shaft Design: Spread Shaft
• Explosion Proof: EX II 3G Ex nA T4 X
• Voltage Supply: 7 / 30 VDC
• Multi-Turn Resolution: 65536 Revolutions (16 bit)
• Periods Per Revolution: 2048
• Max. Current Consumption: 150 mA
• Scanning Code: Binary Code
• Data Transfer: RS485
• Electrical Interface: RS485 (Multi-Turn) +sin/cos
• Max Speed: 6000 1/min
• Max. Pulse Frequency: 200 kHz
• Output Connection: Terminal Strip
• Protection Class: IP 66
• Temperature Range: -30 / 60 °C
