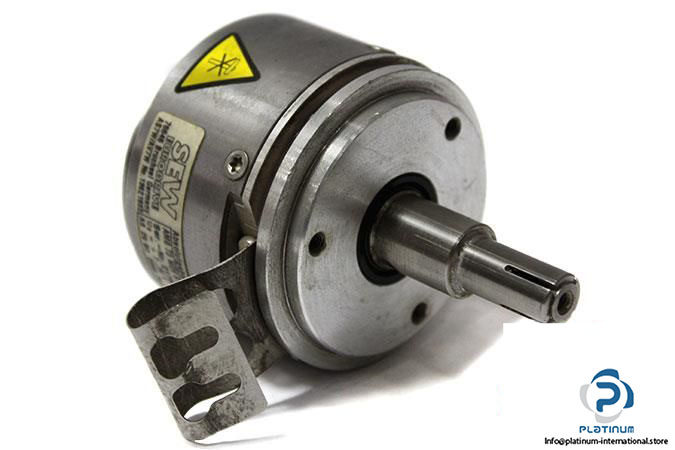

SEW AS7W/AV7W ABSOLUTE ENCODER

The SEW AS7W/AV7W is a high-precision absolute encoder engineered for advanced industrial automation systems. With explosion-proof design and robust protection class IP66, it ensures accurate data acquisition even in demanding environments.

Manufacturer: SEW
Type: Absolute Encoder (Without Plug)
Model: AS7W/AV7W

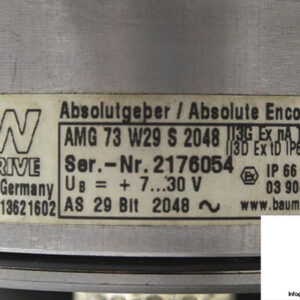

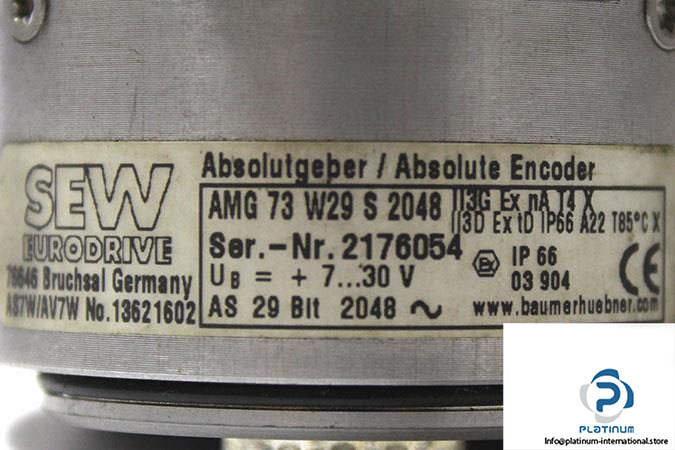

Order Code: AMG73W29S2048
Part No.: 13621602
Serial No.: 2176054

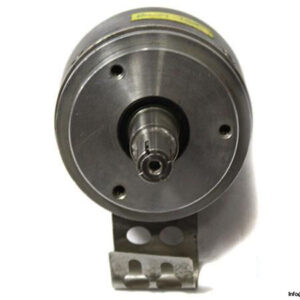

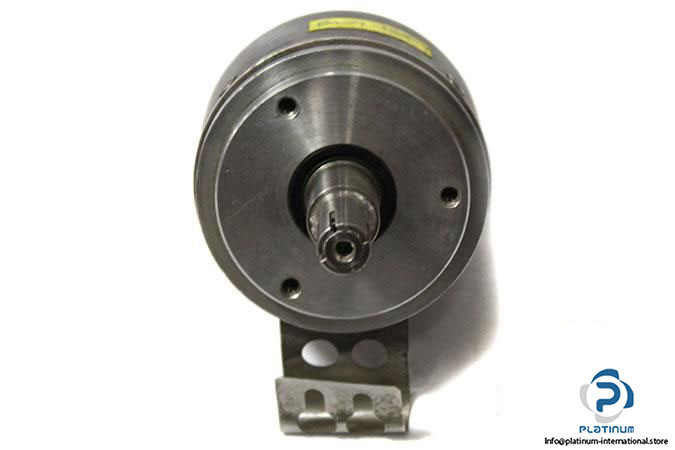

Shaft Design: Spread Shaft

Technical Information

• Voltage Supply: 7 “ 30 V DC
• Multi-Turn Resolution: 65536 Revolutions (16 bit)
• Periods Per Revolution: 2048
• Max. Current Consumption: 150 mA
• Scanning Code: Binary Code
• Data Transfer: RS485

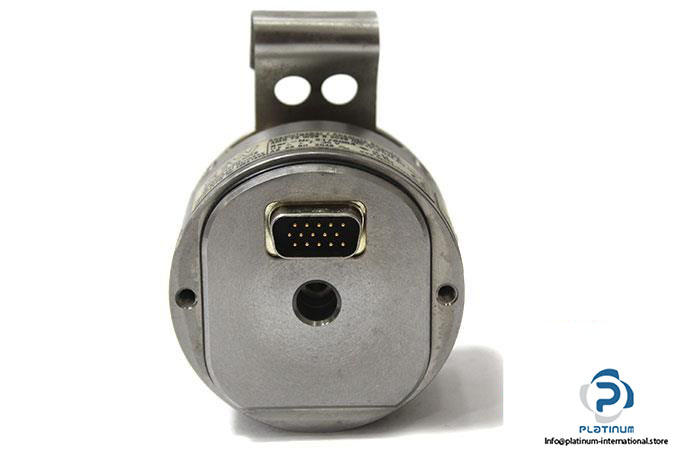

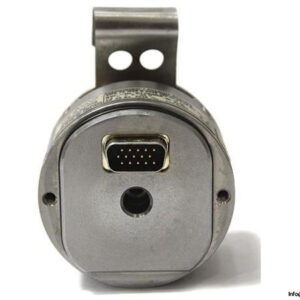

• Electrical Interface: RS485 (Multi-Turn) + sin/cos
• Max Speed: 6000 1/min
• Max. Pulse Frequency: 200 kHz
• Protection Class: IP 66
• Explosion Proof: Yes (EX)
• Operating Temperature: -30 / 60 °C
