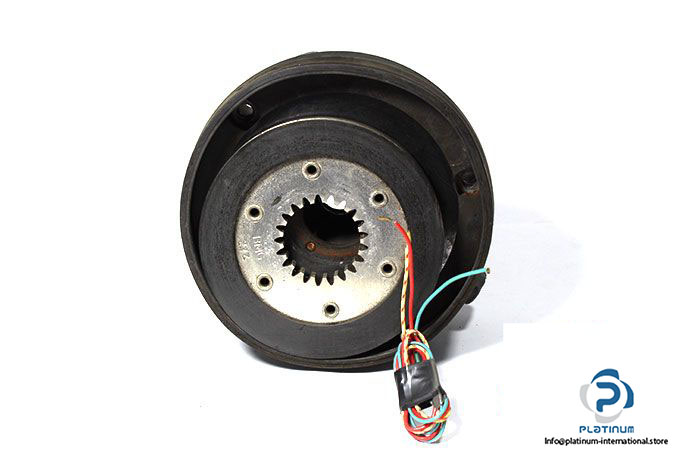

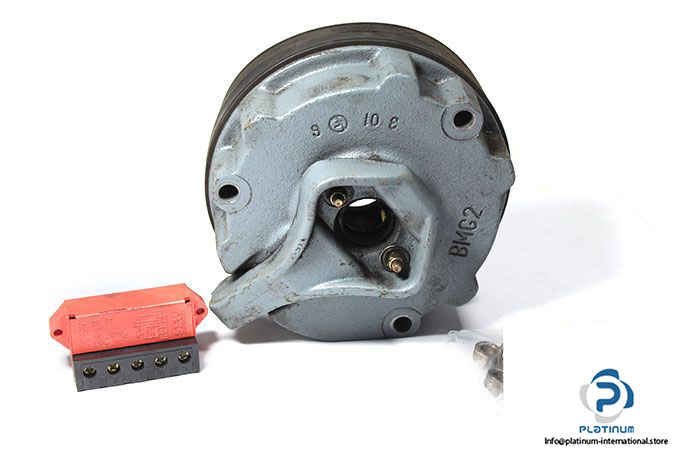

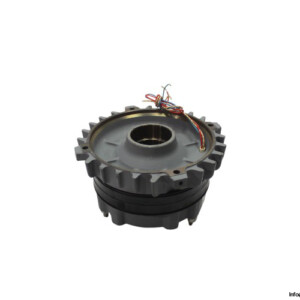

Manufacturer: SEW – Eurodrive

Type: ELECTRICAL BRAKE

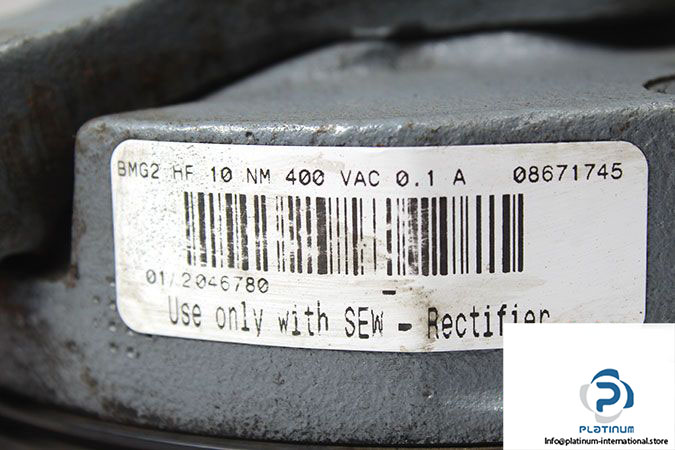

Model: BMG2HF

MRN: 08671745

Braking Torque: 10 Nm, Max. 20 Nm

Voltage: 400 V AC

Coil Power: 40 W

Inrush Current ratio: 4

Current: 0.1 A

Uses: for motors size DT 90/ DV 100

Red Spring Part No.: 01351516

Normal Spring Part No.: 01351508

Rubber Sealing Collar Part No.:182 026 5

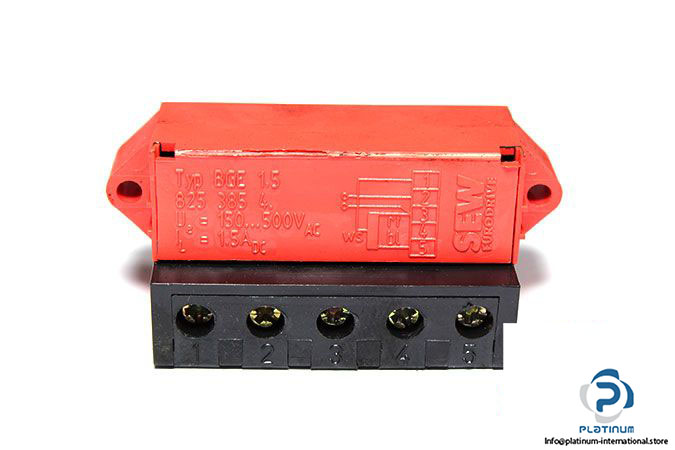

Attachment: SEW BGE 1.5 825 385 4 RECTIFIER

Manufacturer: SEW Eurodrive

Type: One-Way Brake Rectifier

Model: BGE 1.5

MRN: 8253854

Uses: to be mounted in Motor Conduit Boxs for BMG brakes, BM brakes, BR brakes

Voltage: 150…500 V AC

Holding current: 1.5 A

Dimensions: 33 x 36 x 77 mm

Weight: 0.08 kg
