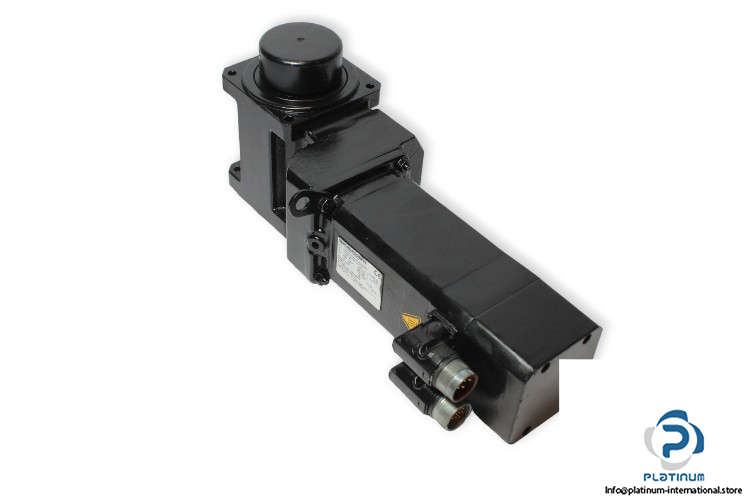

SEW-EURODRIVE BSHF202 DS56L SYNCHRONOUS SERVO MOTOR WITH HELICAL BEVEL GEAR UNIT

This synchronous servo motor from SEW-EURODRIVE integrates high-performance drive technology with robust gear mechanics, ideal for demanding automation and industrial motion applications.

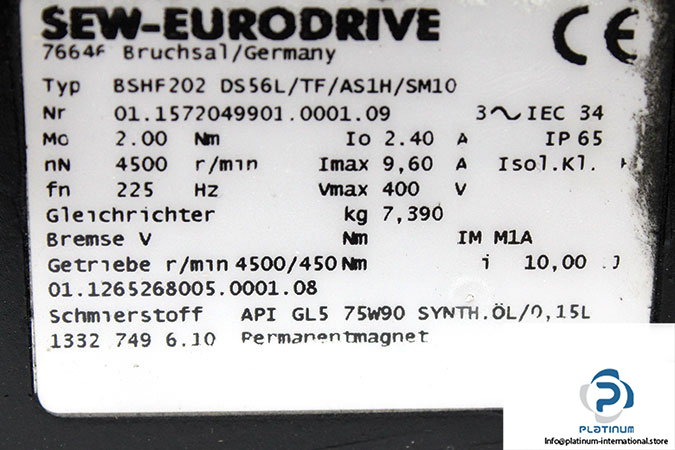

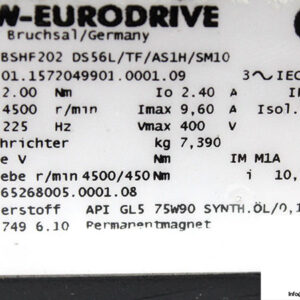

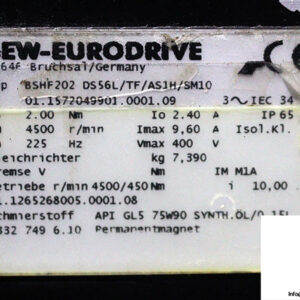

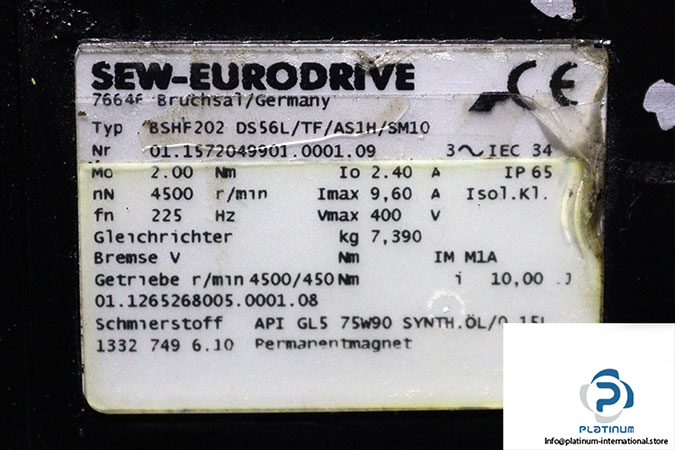

Manufacturer: SEW-EURODRIVE
Type: Synchronous Servo Motor
Model: BSHF202 DS56L TF AS1H SM10
Part No.: 01.1572049901.0001.09

Motor Technical Information

• Motor Size: 56
• Feedback: 2 pole resolvers
• Rated Speed nN: 4500 rpm
• Standstill Torque M0: 2 Nm
• Standstill Current I0: 2.40 A
• Max. Permitted Current Imax: 9.60 A
• Voltage Umax: 400 V
• Max. Permitted Frequency fn: 225 Hz
• Protection Class: IP65
• Mounting Position: M1A
• Ambient Temperature: -20°C to +40°C
• Electrical Regulation: IEC 34
• Thermal Class: K1

Gear Unit Technical Information

• Gear Unit: BSHF 202
• Ref No.: 01.1265268005-0001.08
• Gear Type: Helical bevel servo gear unit
• Gear Unit Size: 202
• Ratio: 10.00
• Gear Torque: 450 Nm
• Input Speed: 4500 rpm
• Encoder: AS1H, multi-turn encoder

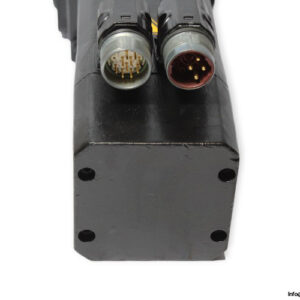

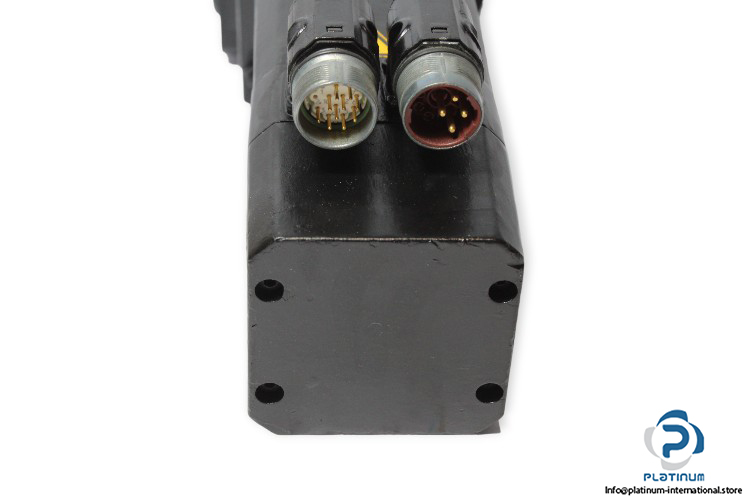

• Plug Connector: SM10
• Thermal Sensor: TF, Thermistor (PTC Resistor)
• Lubricant / Volume: API GL5 75w90 Synth. Oil / 0.15 L
