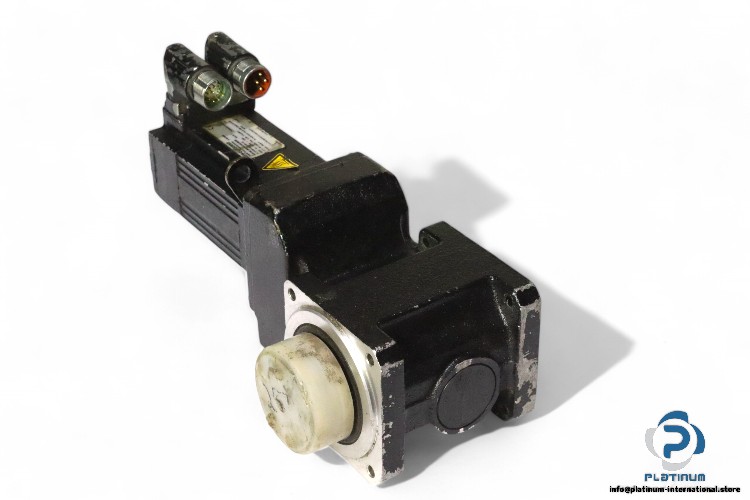

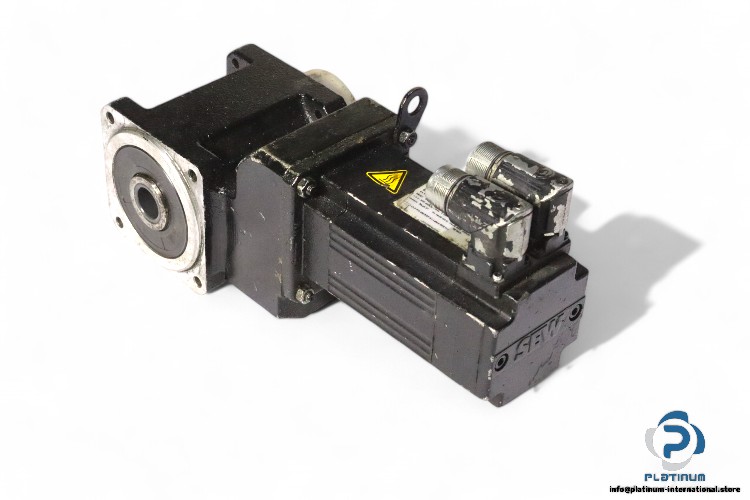

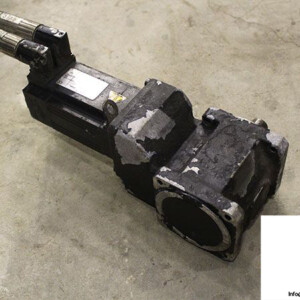

SEW Planetary Servo Gearmotor BSKF202 CMP50S/KY/RH1M/SM1
The SEW Planetary Servo Gearmotor BSKF202 CMP50S/KY/RH1M/SM1 offers precision and durability for industrial applications, with high output torque and low-speed performance. Designed for versatility, it features a flange-mounted version and a KTY84-130 temperature sensor for optimal operation in various environments.

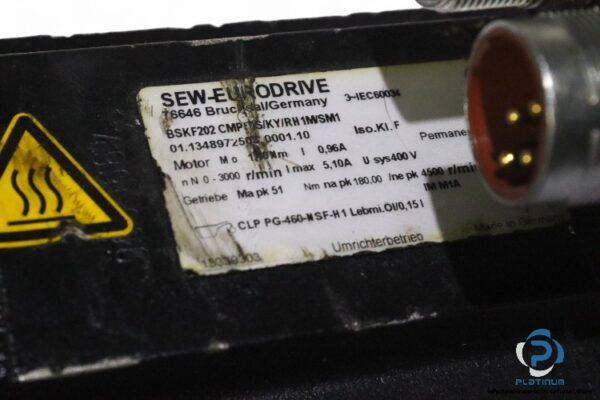

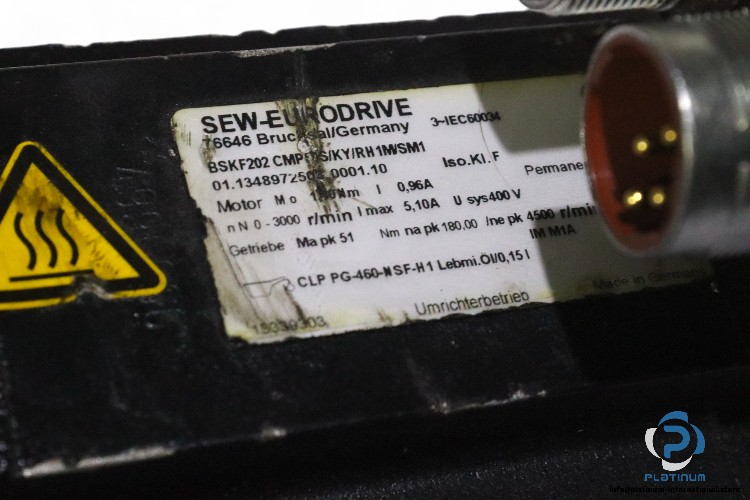

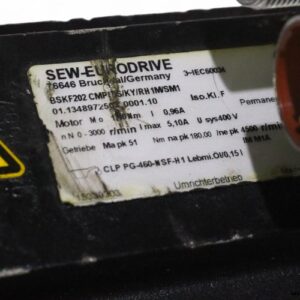

Manufacturer: SEW
Type: Planetary Servo Gearmotor
Model: BSKF202 CMP50S/KY/RH1M/SM1
Part No.: 01.1348972503.0001.10
Technical Specifications
- Speed [r/min]: 3000 / 120
- Total Ratio [i]: 25.00
- No. of Teeth Nom./Denominator: 25/1
- Mounting Position: M1A
- Term. Box Pos.[Ø¢°] / Cable Entry: 270 / Variable Position
- Lubricant: CLP PG-460-NSF-H1 Oil for Food
- Lubricant Volume [I]: 0.15
- Input Speed Nepk [rpm]: 4500
- Output Speed Na_pk [min-1]: 180.00
- Output Torque Mapk [Nm]: 51
- Output Shaft End: 20x35mm with Keyway
- Design: Flange-Mounted Version
- Flange: Centering Shoulder 90mm, Hole Circle Through Holes 109mm
- Rated Speed nN [Rpm]: 3000
- Standstill Torque M0 [Nm]: 1.3
- Max. Limit Torque Mpk [Nm]: 5.2
- Standstill Current [A]: 0.96
- Max. Permitt. Current Imax [A]: 5.1
- Cyclic Duration Factor: S1
- Motor Voltage [V]: 400
- Max. Permitted Frequency [Hz]: 150
- Thermal Class/Enclosure [IP]: F / 65

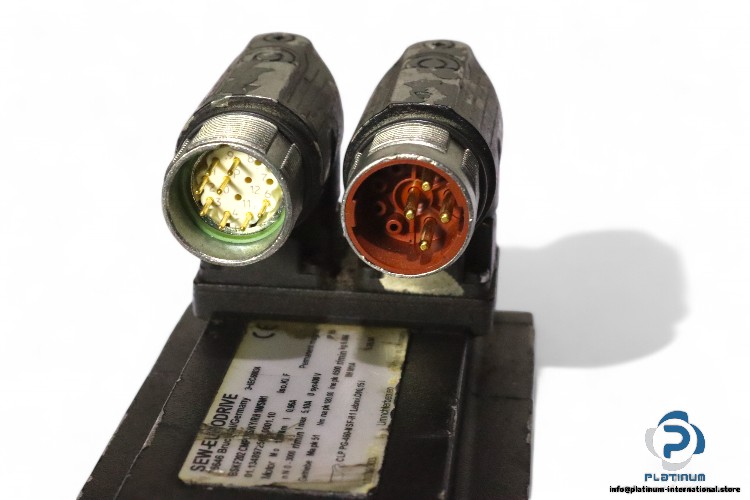

- General Access. Feature: SM1 Plug Connector
- Temperature Measuring: KY = KTY84-130 Temperature Sensor
- Additional Feature Encoder Option: RH1M Resolver 2-Pole
