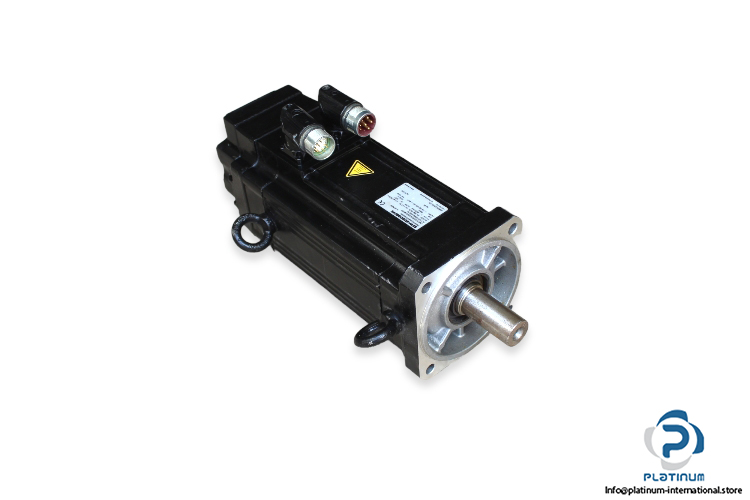

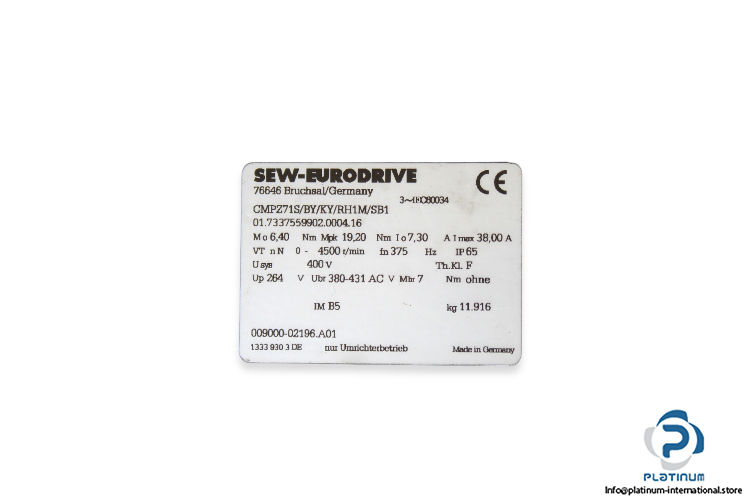

Manufacturer: SEW

Type: Synchronous Servo Motors

Model: CMPZ71S/BY/KY/RH1M/SB1

Part Nr.: 01.7337559902.0004.16

Rated Speed [rpm]: 4500

Standstill Torque [Nm]: 6,40

Max. Limit Torque [Nm]: 19,20

Standstill Current [A]: 7,30

Max. Current Imax [A]: 38,00

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Max. Frequency [Hz]: 375

Output Shaft End [mm]: 24×50

Flange: 110mm Centering 130mm Hole Circle 116mm Square flange

Thermal Class/Enclosure [IP]: F/65

Mounting Position: B5
