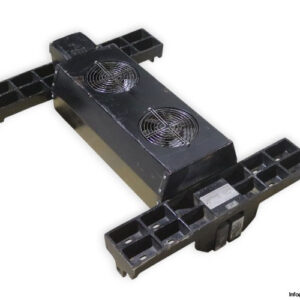

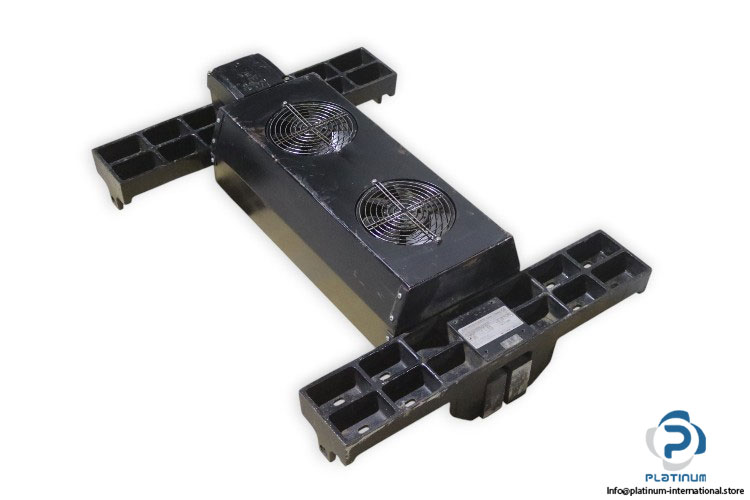

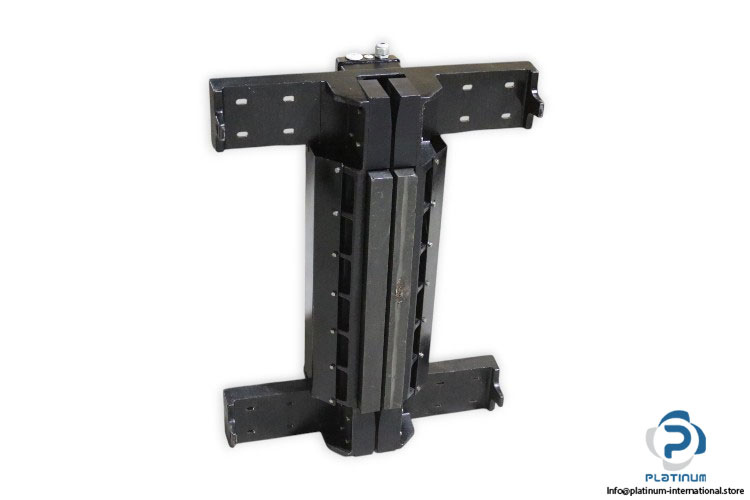

SEW DLD400-6/TF/IS Asynchronous Linear Motor

The SEW DLD400-6/TF/IS is a robust asynchronous linear motor engineered for continuous duty applications. Delivering precise force and velocity with reliable performance, it is designed for high-efficiency industrial automation and motion control systems.

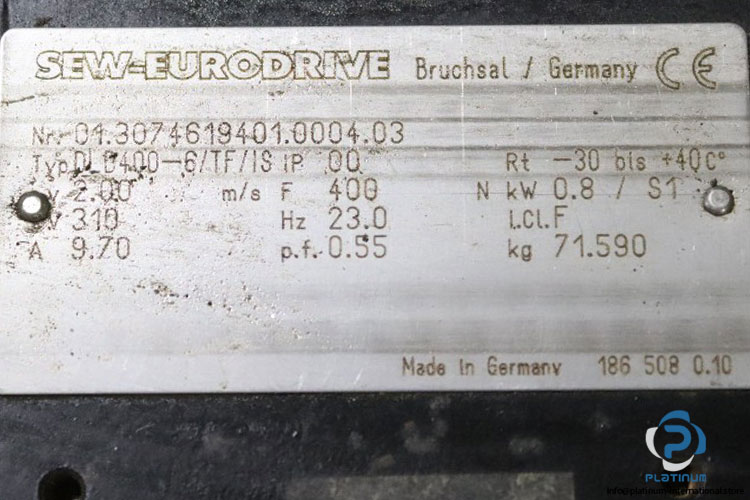

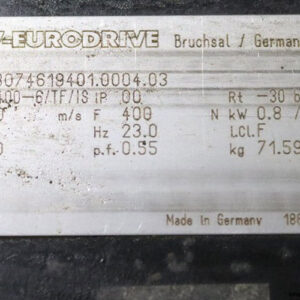

Manufacturer: SEW
Type: Asynchronous Linear Motor
Model: DLD400-6/TF/IS
Part No.: 04.3074619401.0004.03
Code: 186 508 0.10

Technical information

• Size: 400-6
• Rated Voltage: 310 V
• Rated Current: 9.70 A
• Rated Power: 0.8 kW
• Frequency: 23 Hz
• Power Factor (cos φ): 0.55
• Velocity: 2.00 m/s
• Force: 400 N
• Operating Temperature Range: -30 °C to +40 °C
• Protection Class: IP00
• Insulation Class: F
• Duty: S1 (continuous duty)
